Power Distribution/BCM

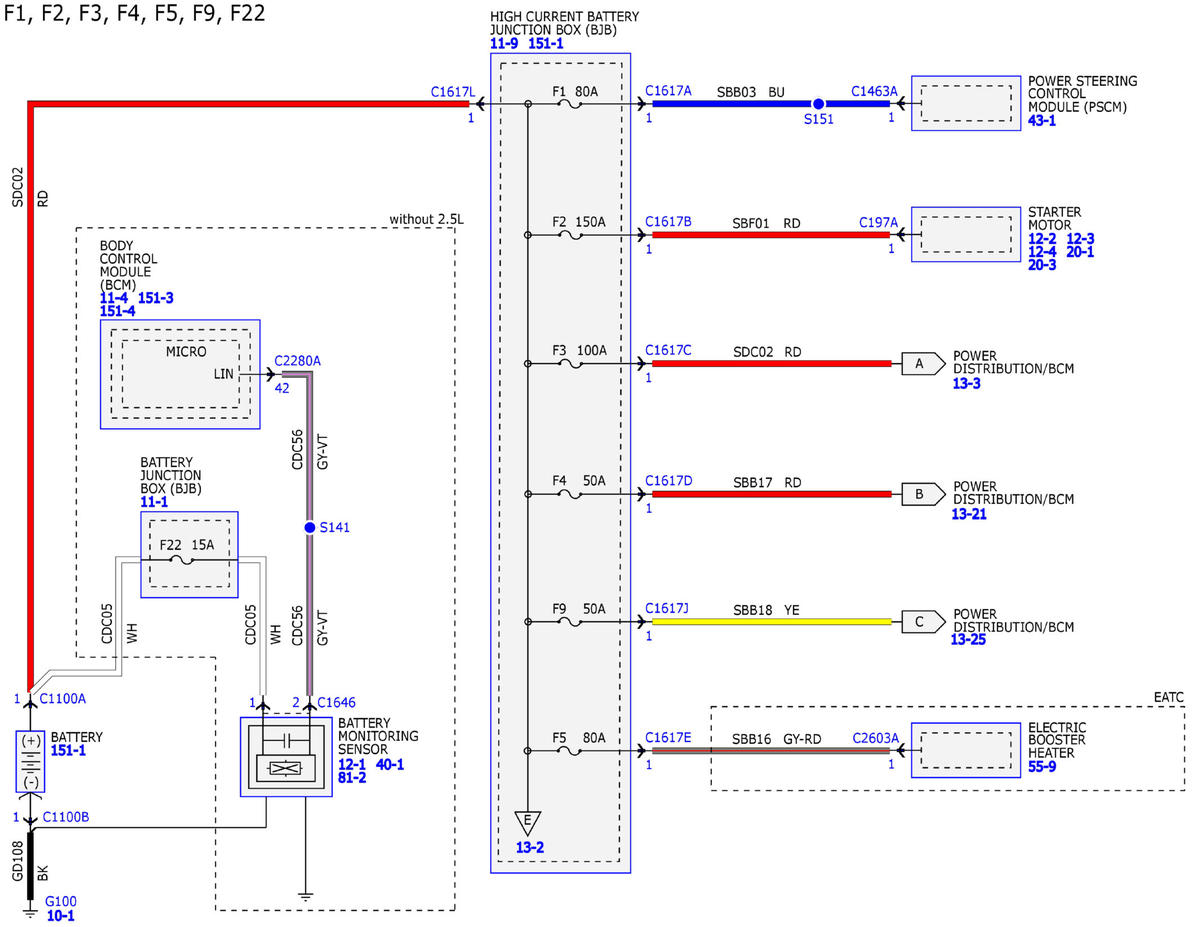

Fig 1: Power Distribution/BCM Wiring Diagram (1 of 35)

GFDW85815

Courtesy of FORD MOTOR COMPANY

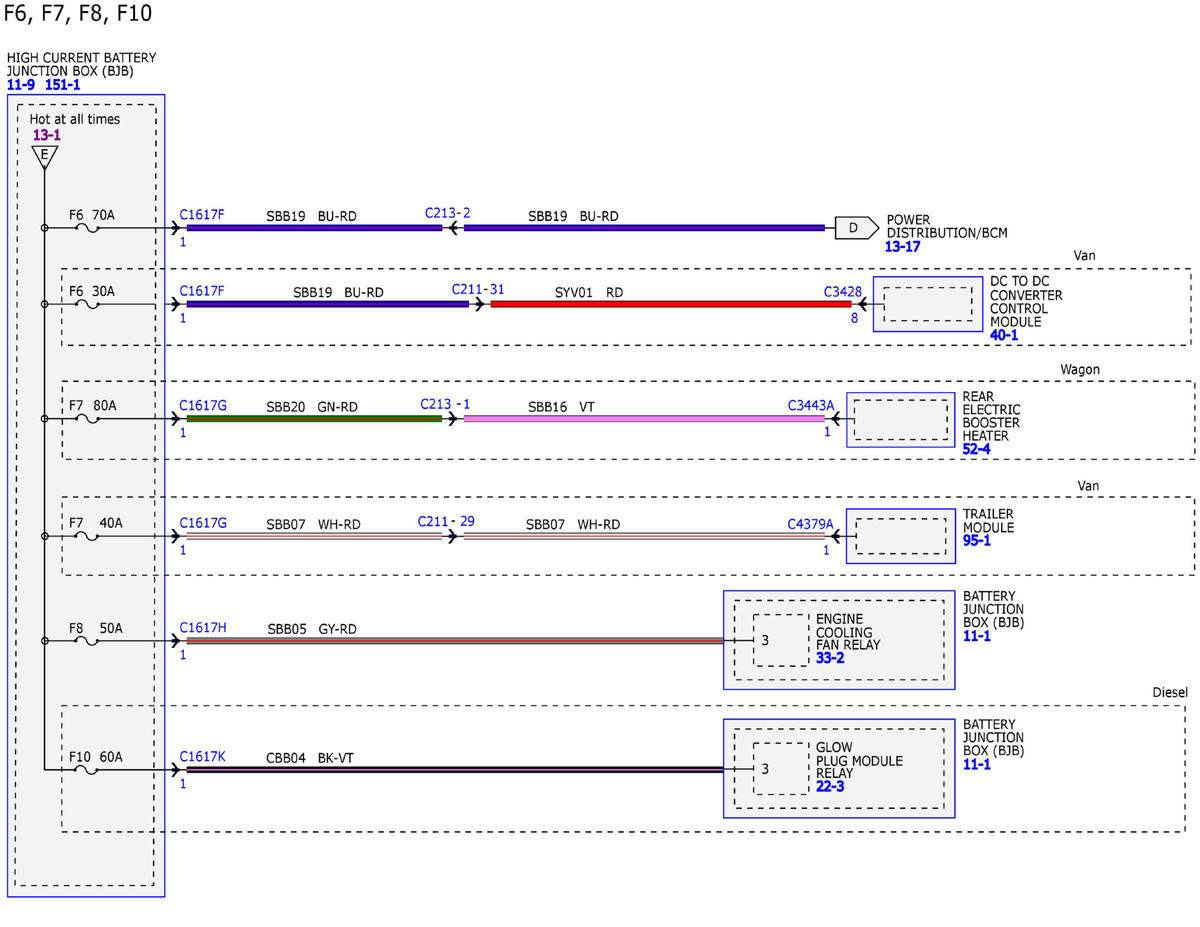

Fig 2: Power Distribution/BCM Wiring Diagram (2 of 35)

GFDW85816

Courtesy of FORD MOTOR COMPANY

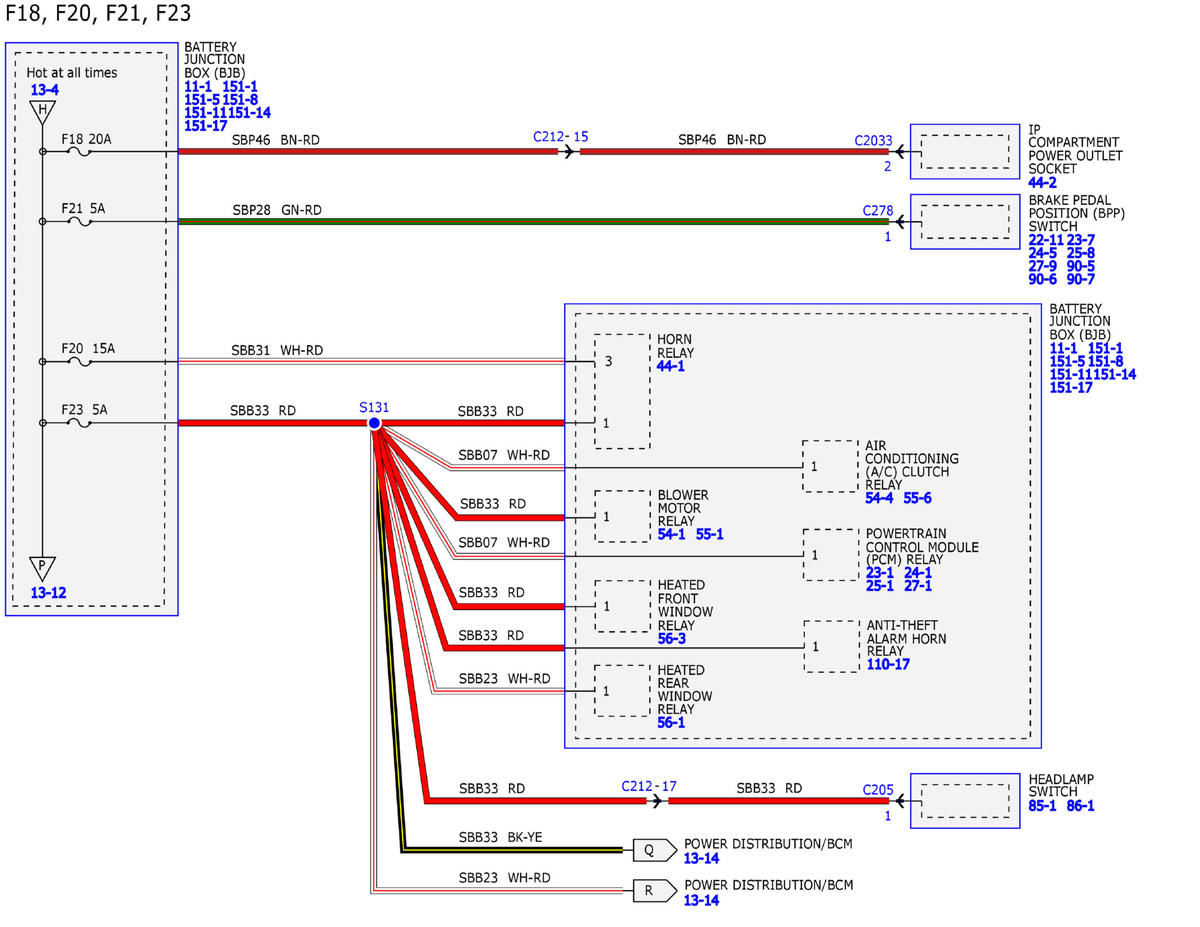

Fig 3: Power Distribution/BCM Wiring Diagram (3 of 35)

GFDW85817

Courtesy of FORD MOTOR COMPANY

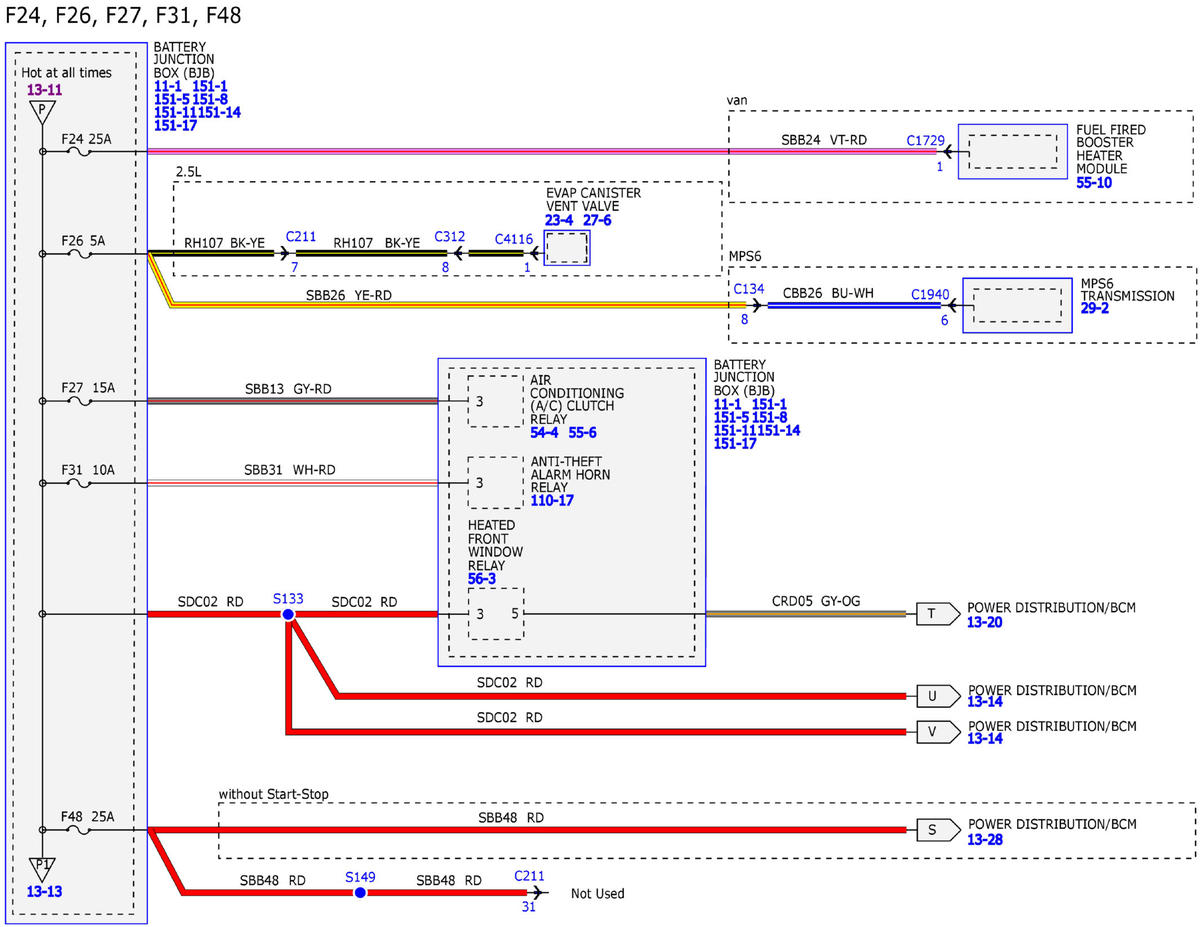

Fig 4: Power Distribution/BCM Wiring Diagram (4 of 35)

GFDW85818

Courtesy of FORD MOTOR COMPANY

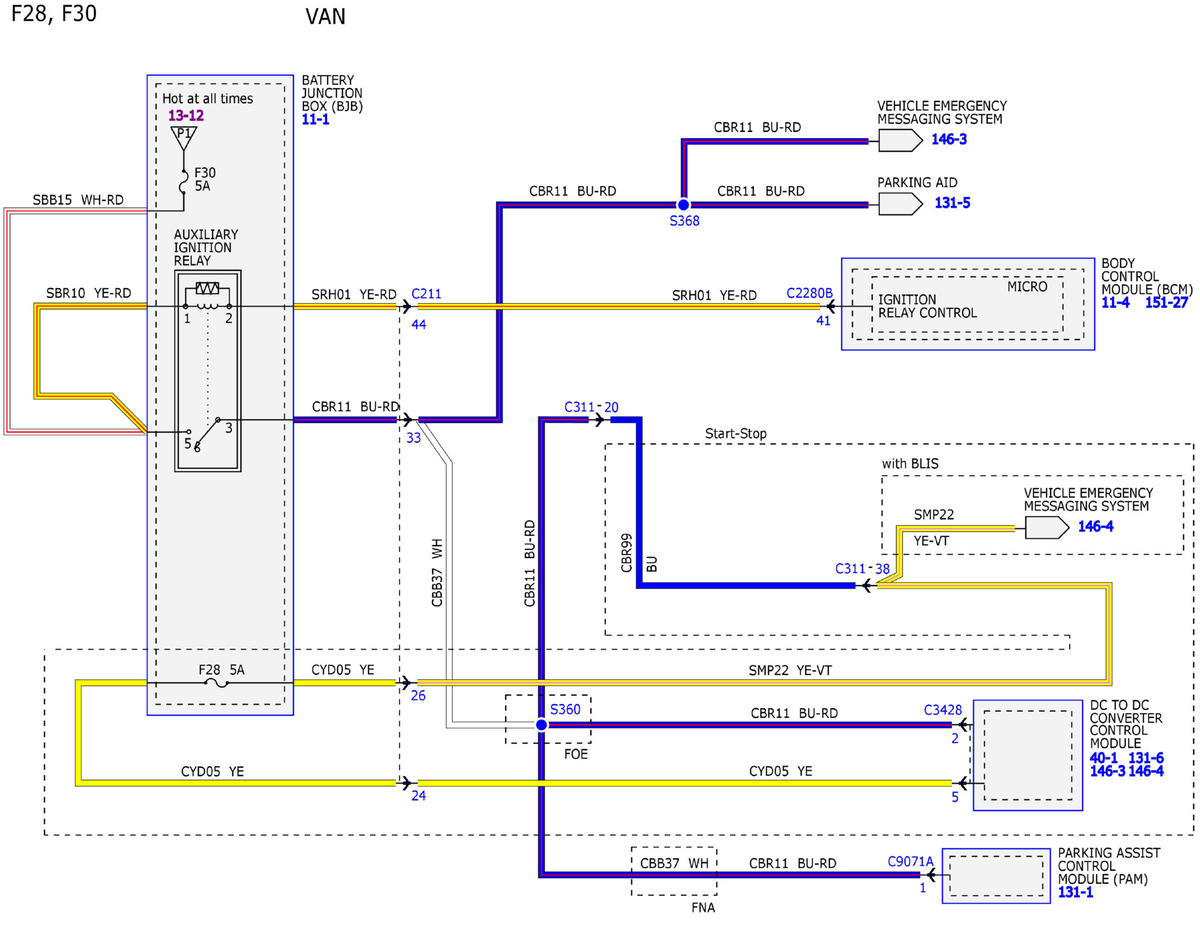

Fig 5: Power Distribution/BCM Wiring Diagram (5 of 35)

GFDW85819

Courtesy of FORD MOTOR COMPANY

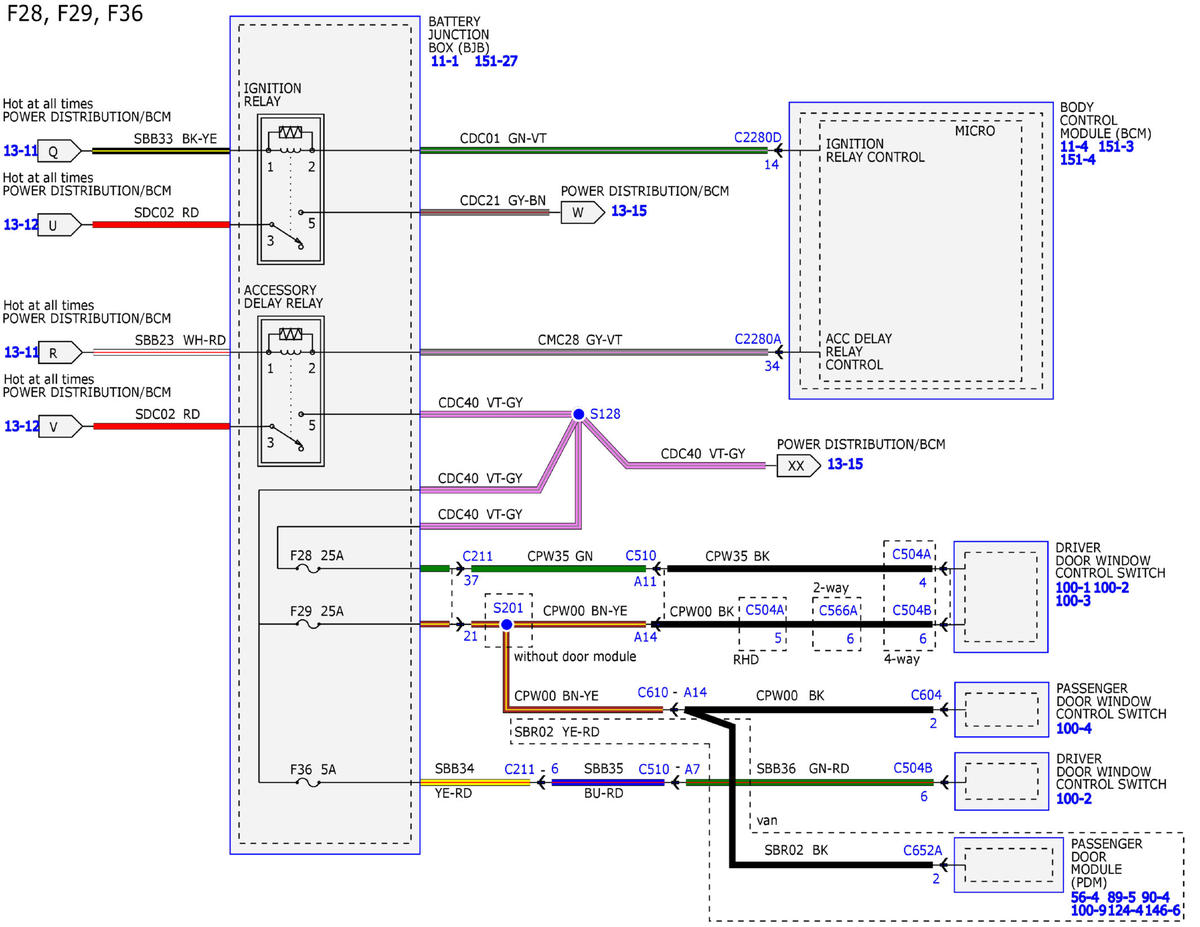

Fig 6: Power Distribution/BCM Wiring Diagram (6 of 35)

GFDW85820

Courtesy of FORD MOTOR COMPANY

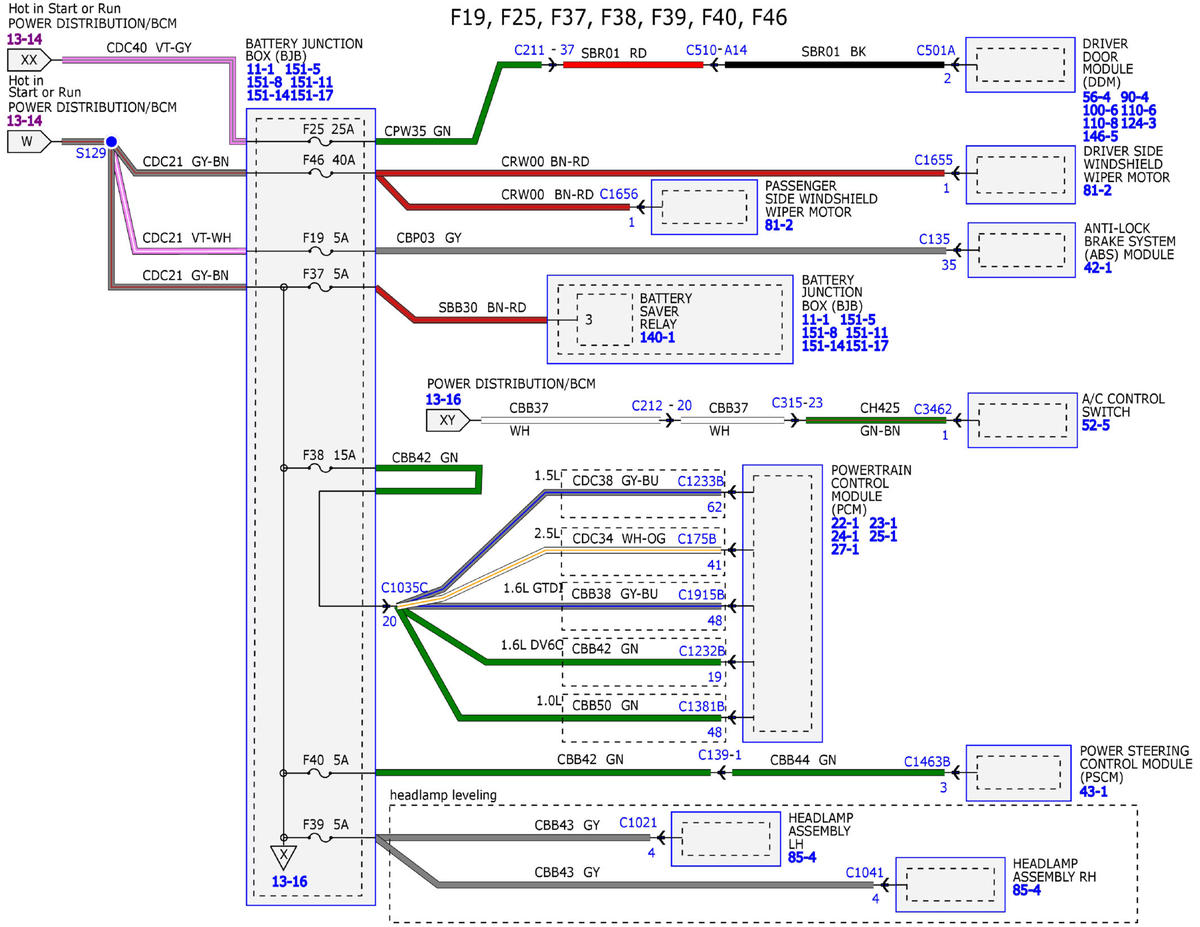

Fig 7: Power Distribution/BCM Wiring Diagram (7 of 35)

GFDW85821

Courtesy of FORD MOTOR COMPANY

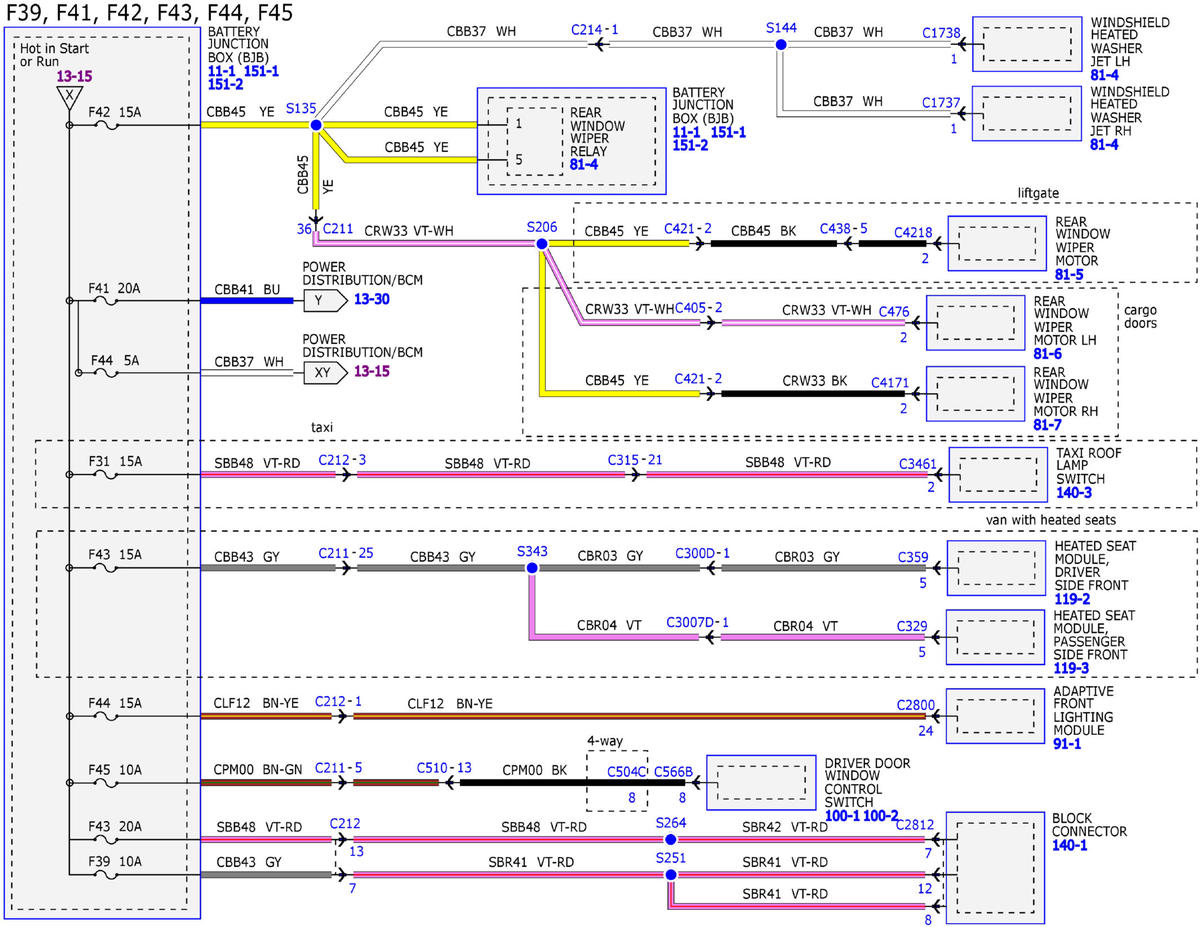

Fig 8: Power Distribution/BCM Wiring Diagram (8 of 35)

GFDW85822

Courtesy of FORD MOTOR COMPANY

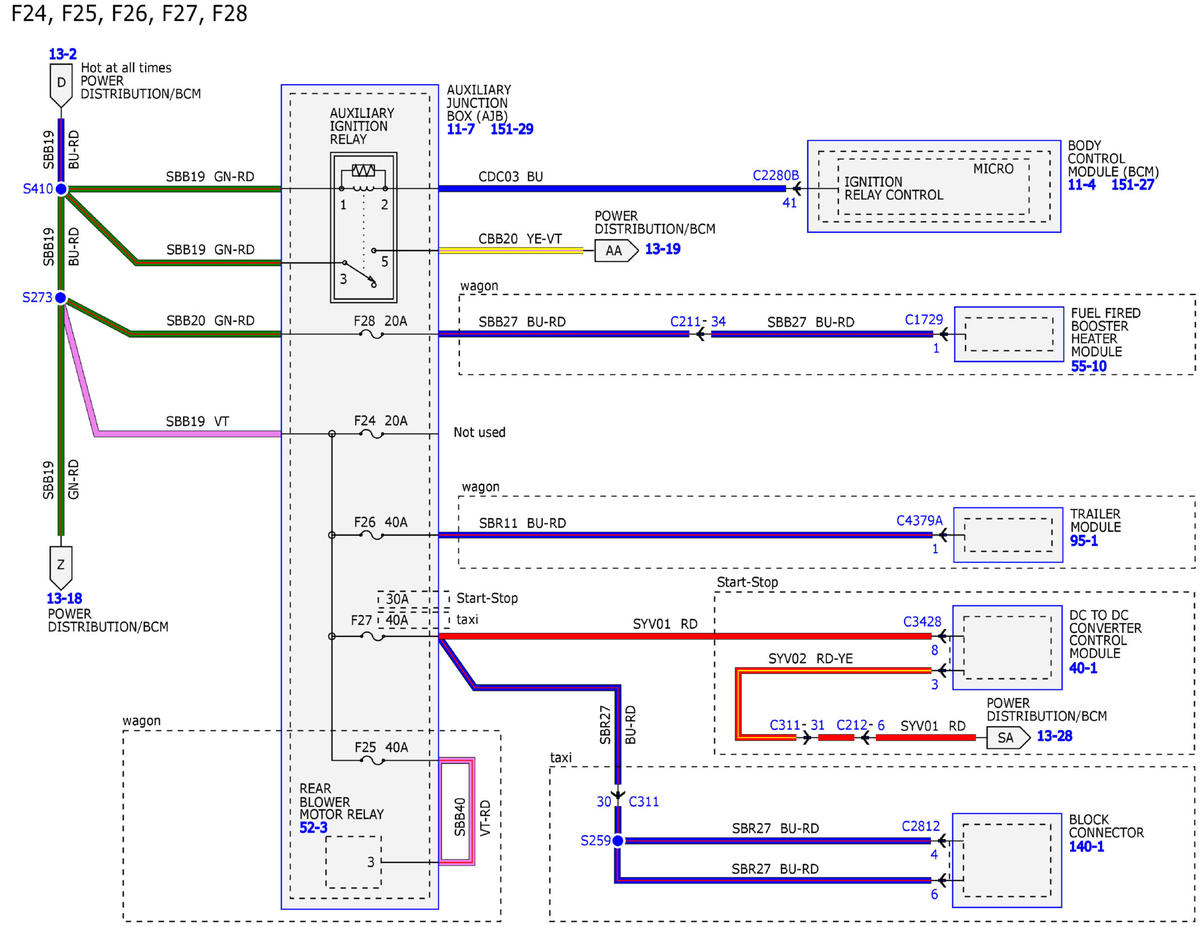

Fig 9: Power Distribution/BCM Wiring Diagram (9 of 35)

GFDW85823

Courtesy of FORD MOTOR COMPANY

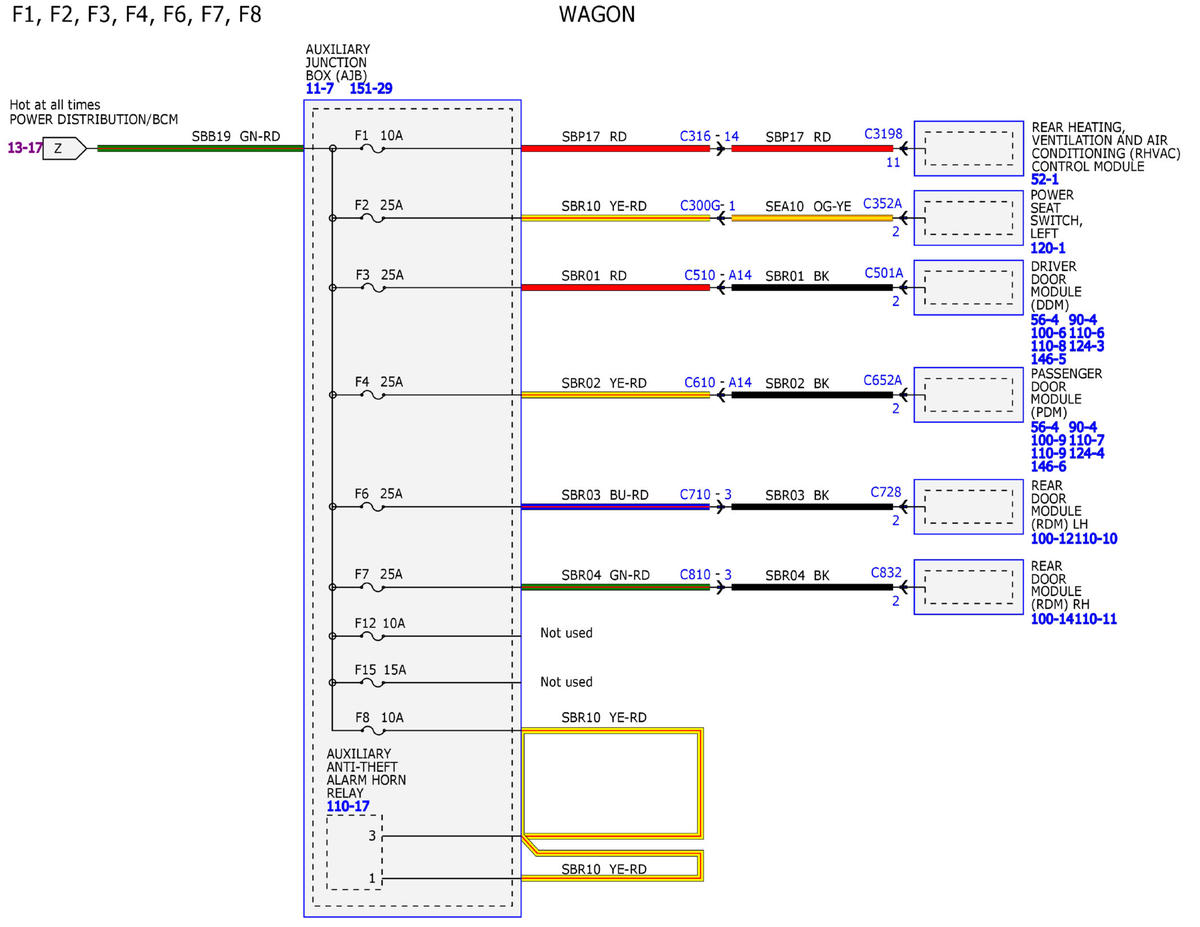

Fig 10: Power Distribution/BCM Wiring Diagram (10 of 35)

GFDW85824

Courtesy of FORD MOTOR COMPANY

Fig 11: Power Distribution/BCM Wiring Diagram (11 of 35)

GFDW85825

Courtesy of FORD MOTOR COMPANY

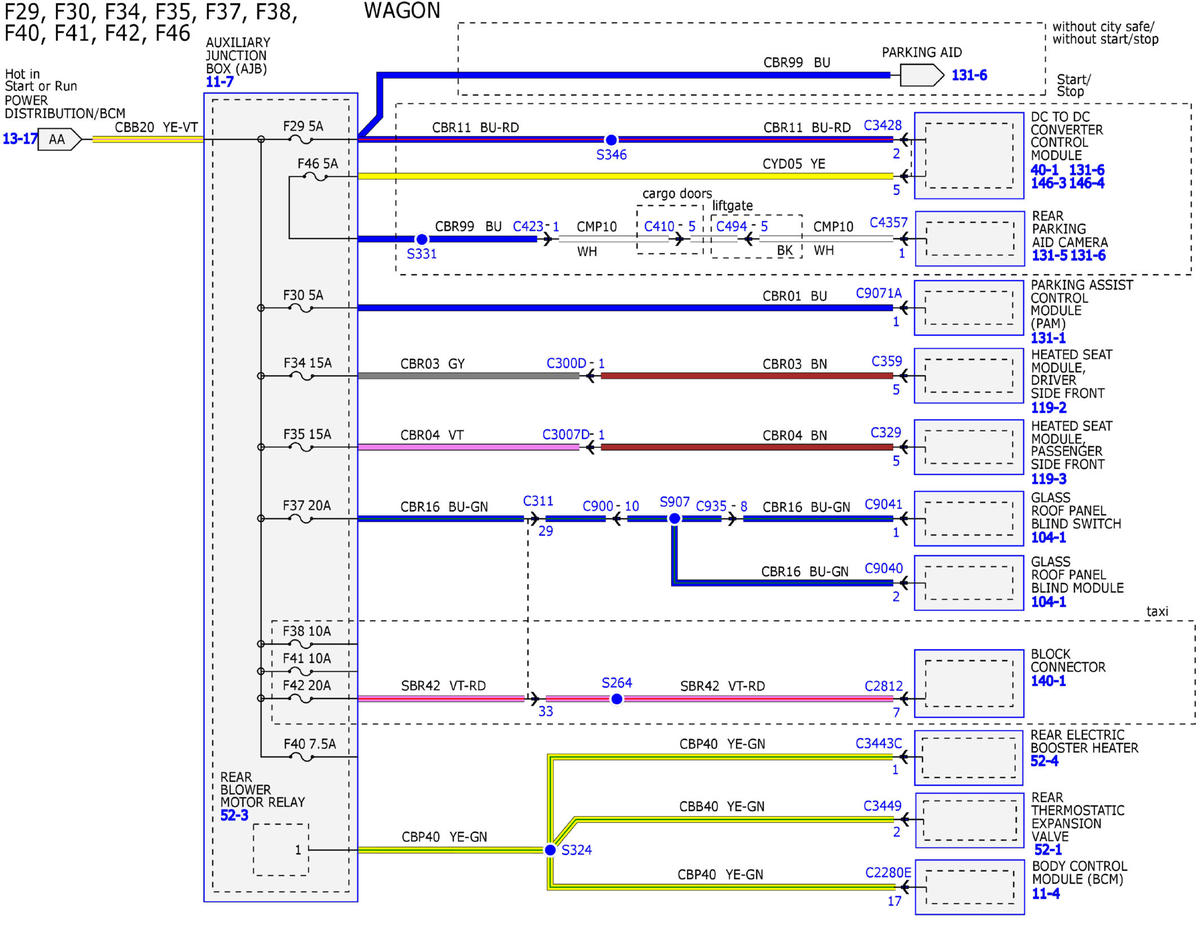

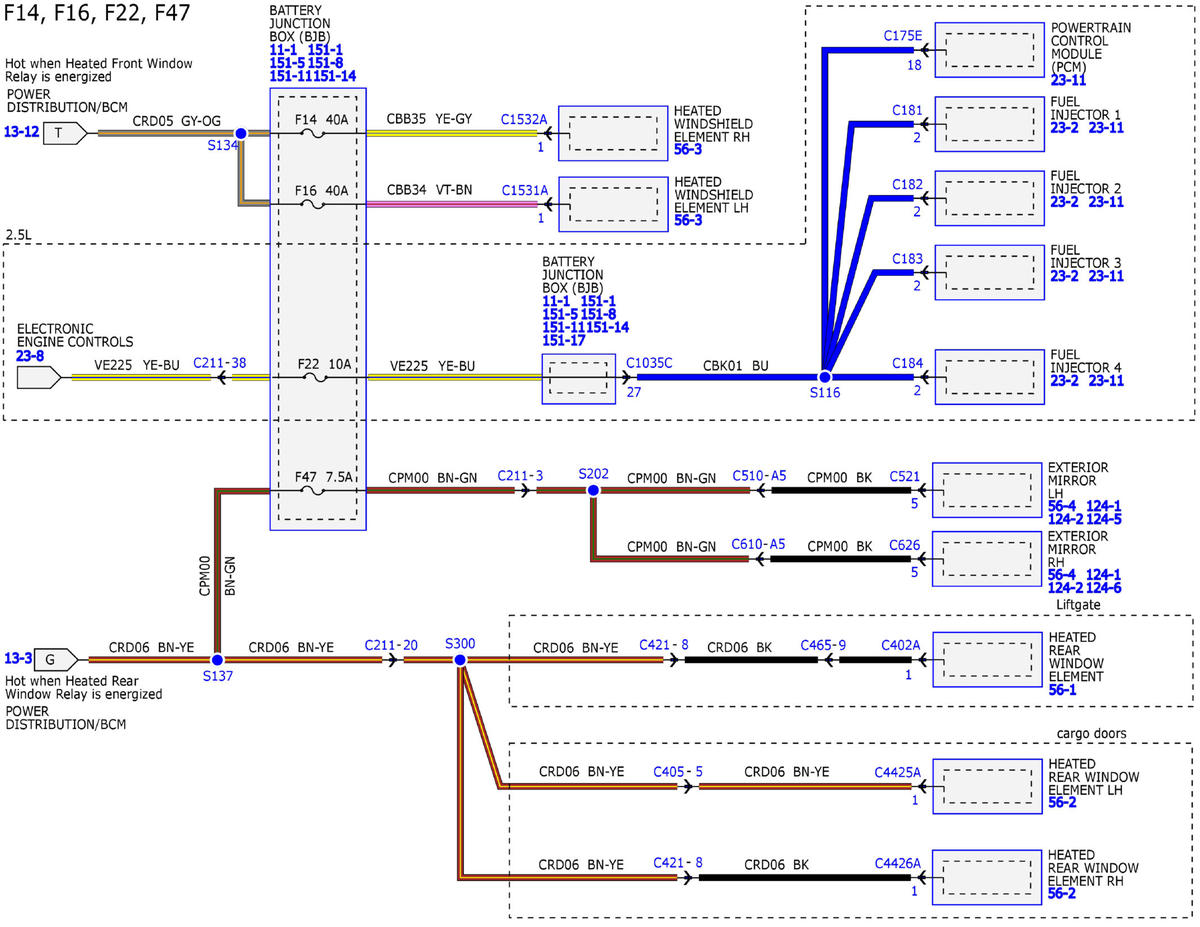

Fig 12: Power Distribution/BCM Wiring Diagram (12 of 35)

GFDW85826

Courtesy of FORD MOTOR COMPANY

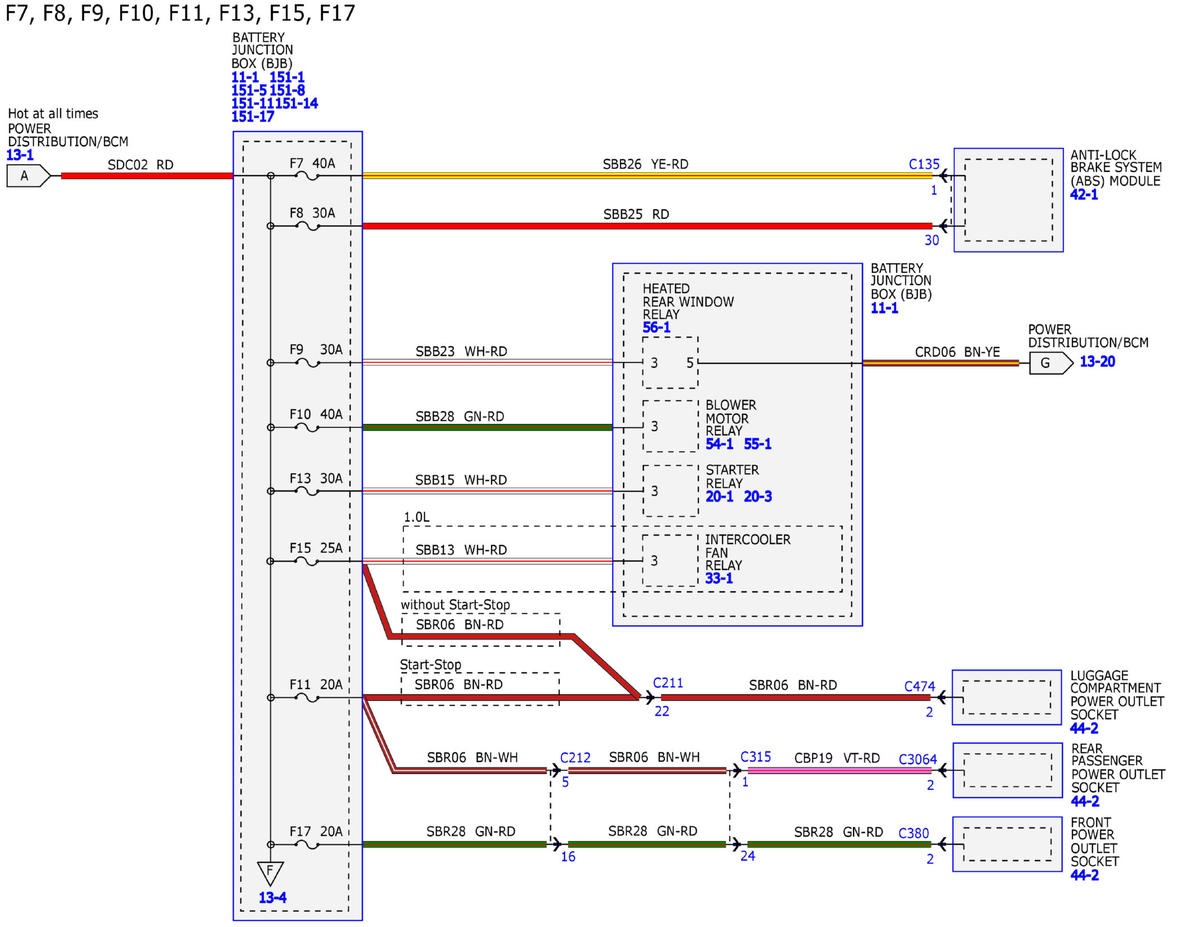

Fig 13: Power Distribution/BCM Wiring Diagram (13 of 35)

GFDW85827

Courtesy of FORD MOTOR COMPANY

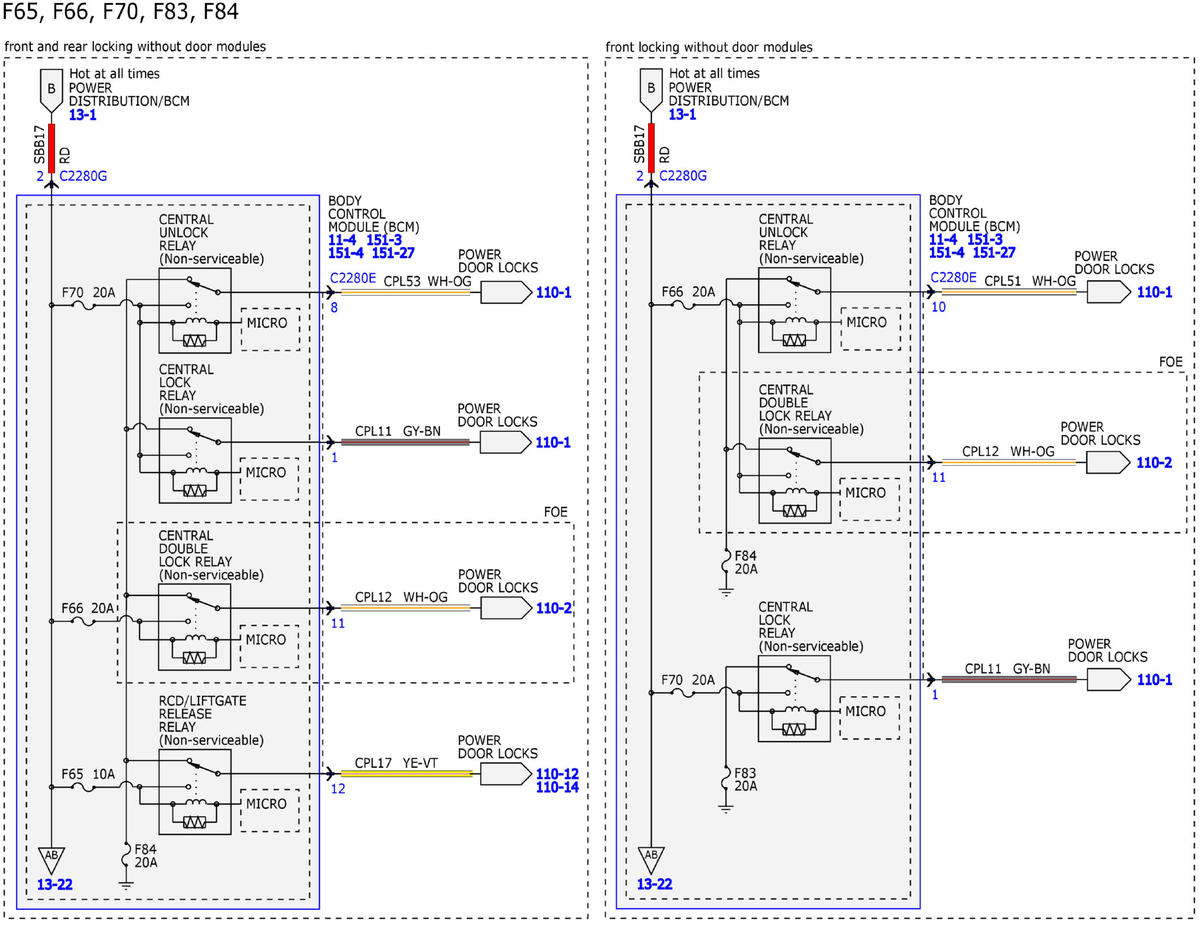

Fig 14: Power Distribution/BCM Wiring Diagram (14 of 35)

GFDW85828

Courtesy of FORD MOTOR COMPANY

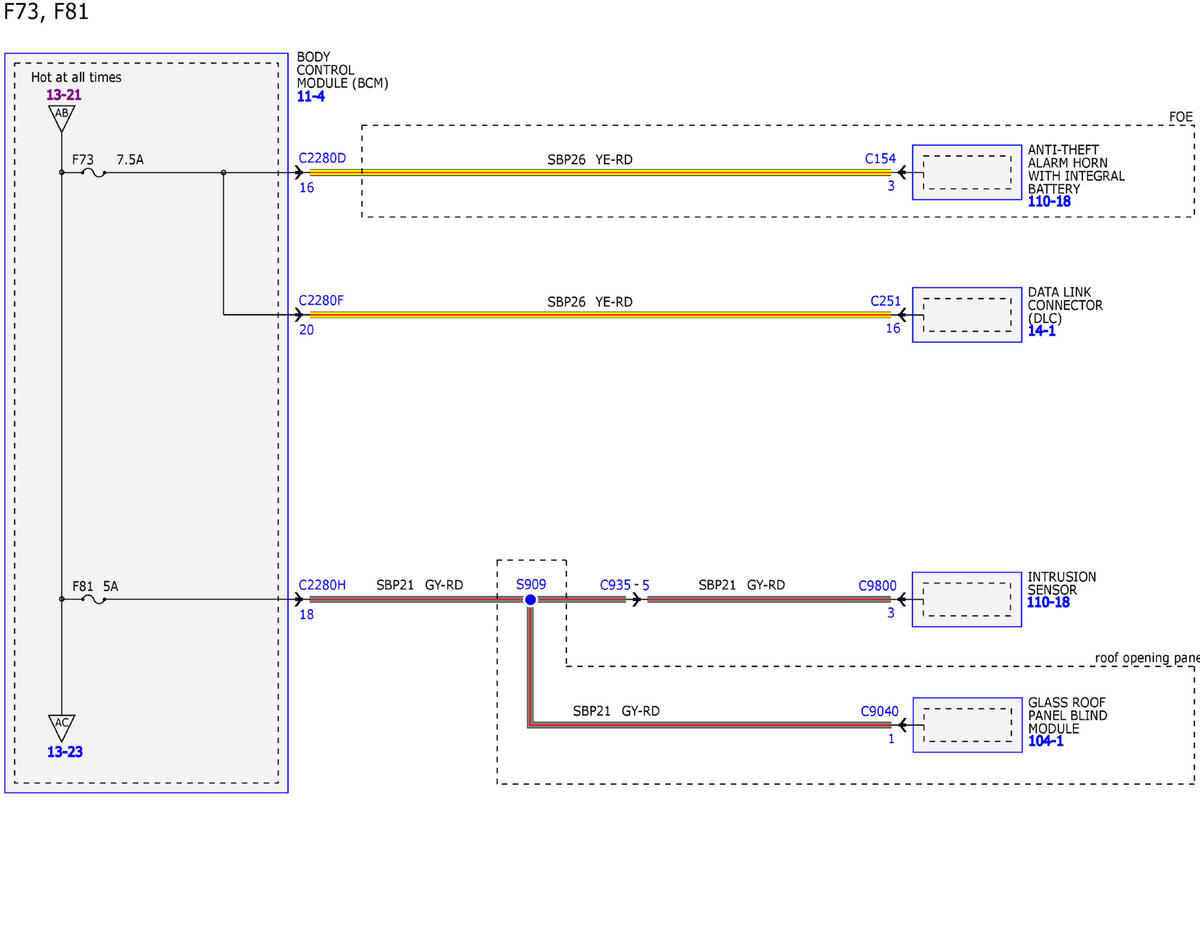

Fig 15: Power Distribution/BCM Wiring Diagram (15 of 35)

GFDW85829

Courtesy of FORD MOTOR COMPANY

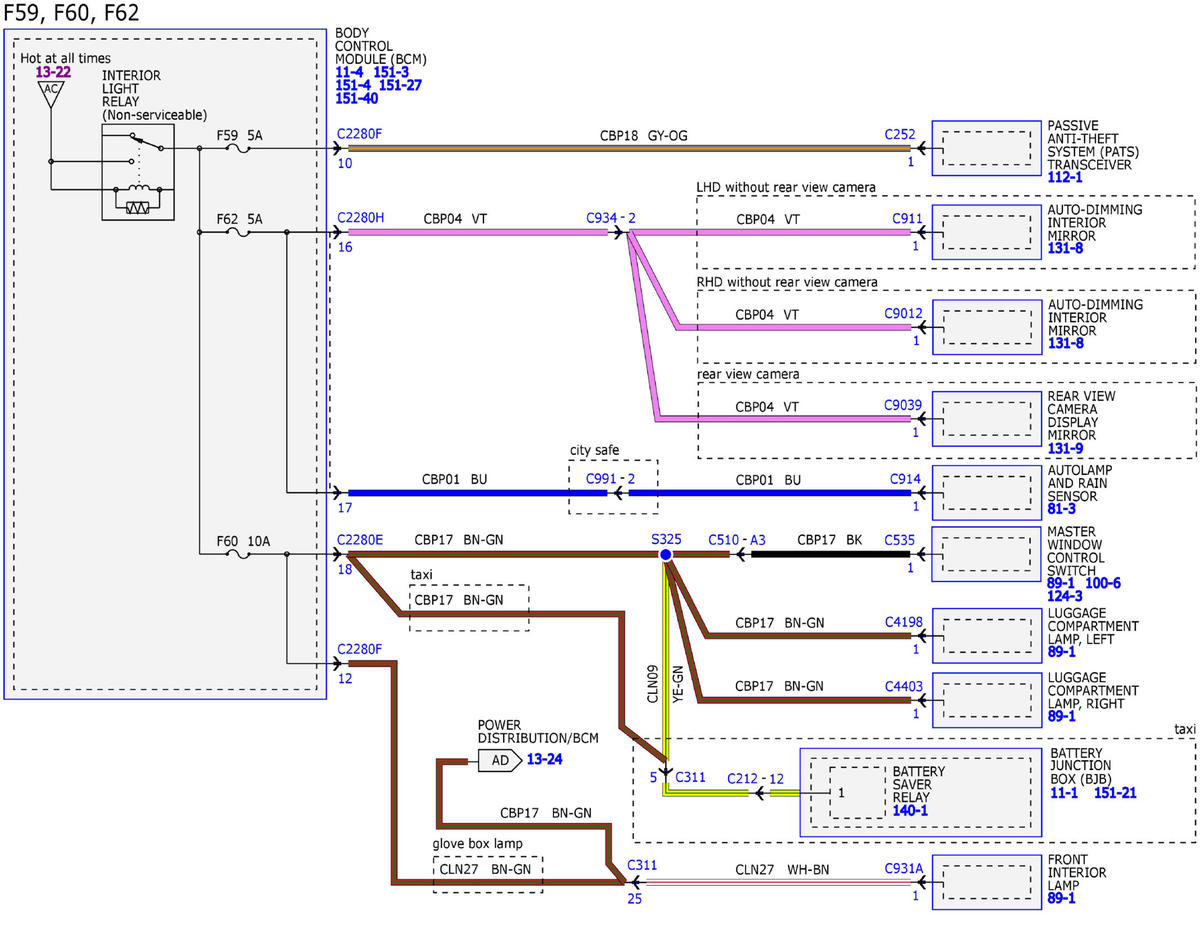

Fig 16: Power Distribution/BCM Wiring Diagram (16 of 35)

GFDW85830

Courtesy of FORD MOTOR COMPANY

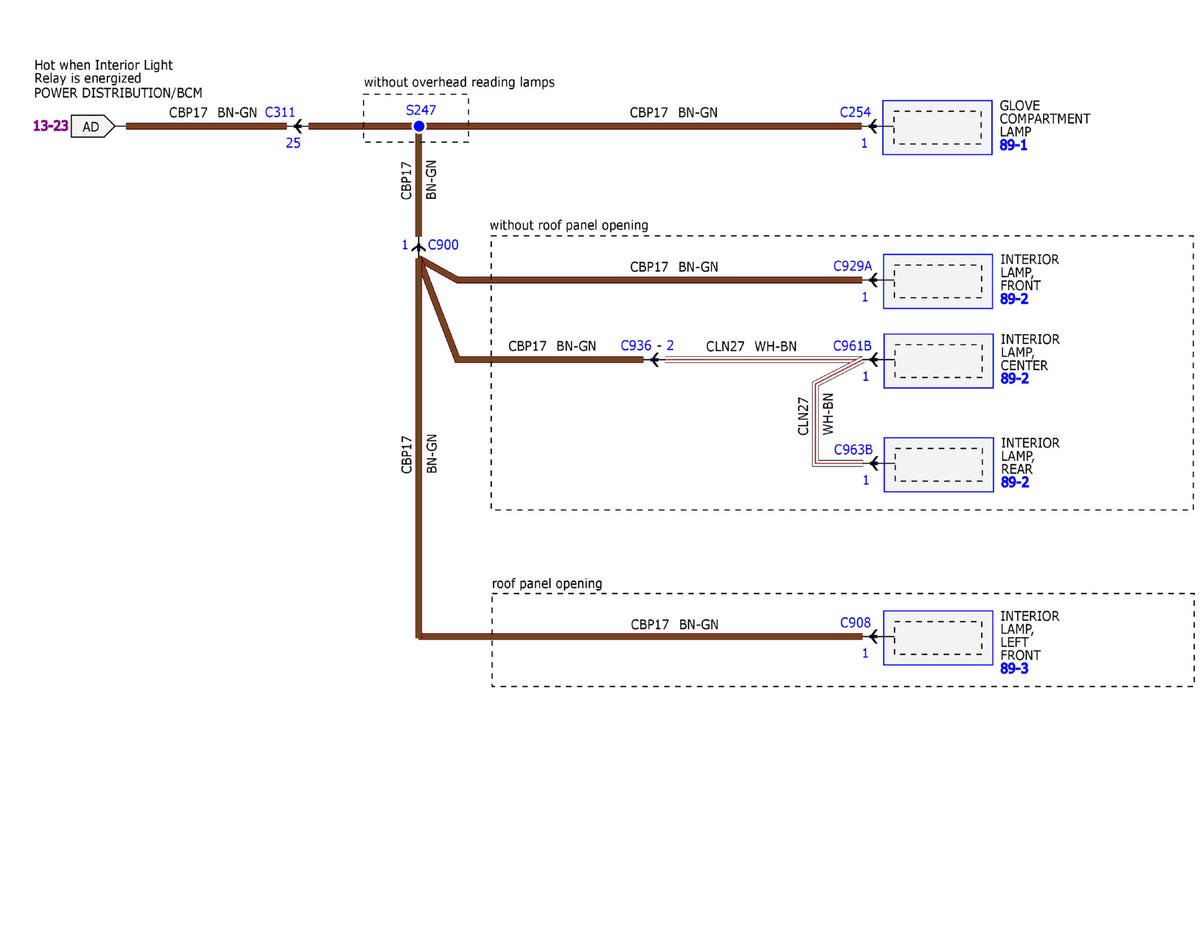

Fig 17: Power Distribution/BCM Wiring Diagram (17 of 35)

GFDW85831

Courtesy of FORD MOTOR COMPANY

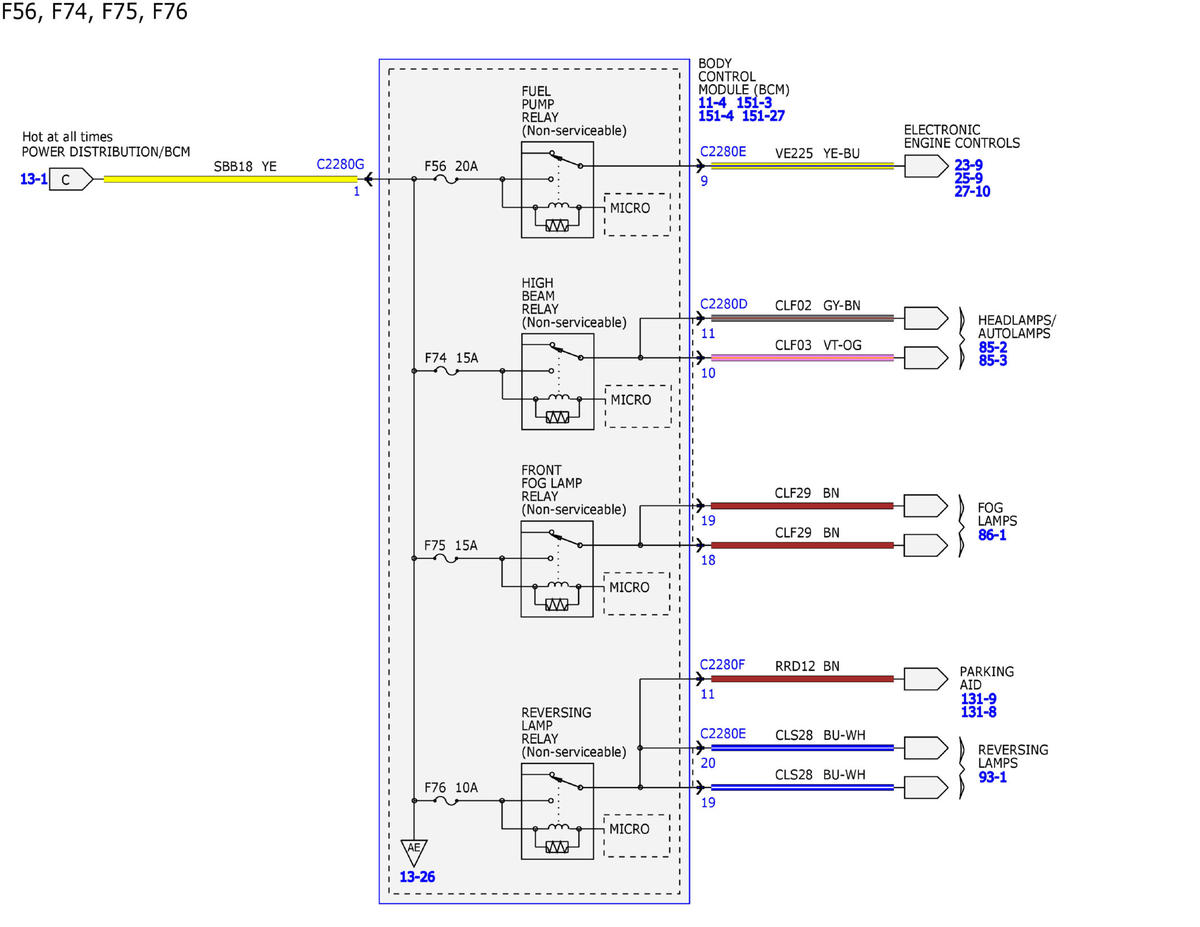

Fig 18: Power Distribution/BCM Wiring Diagram (18 of 35)

GFDW85832

Courtesy of FORD MOTOR COMPANY

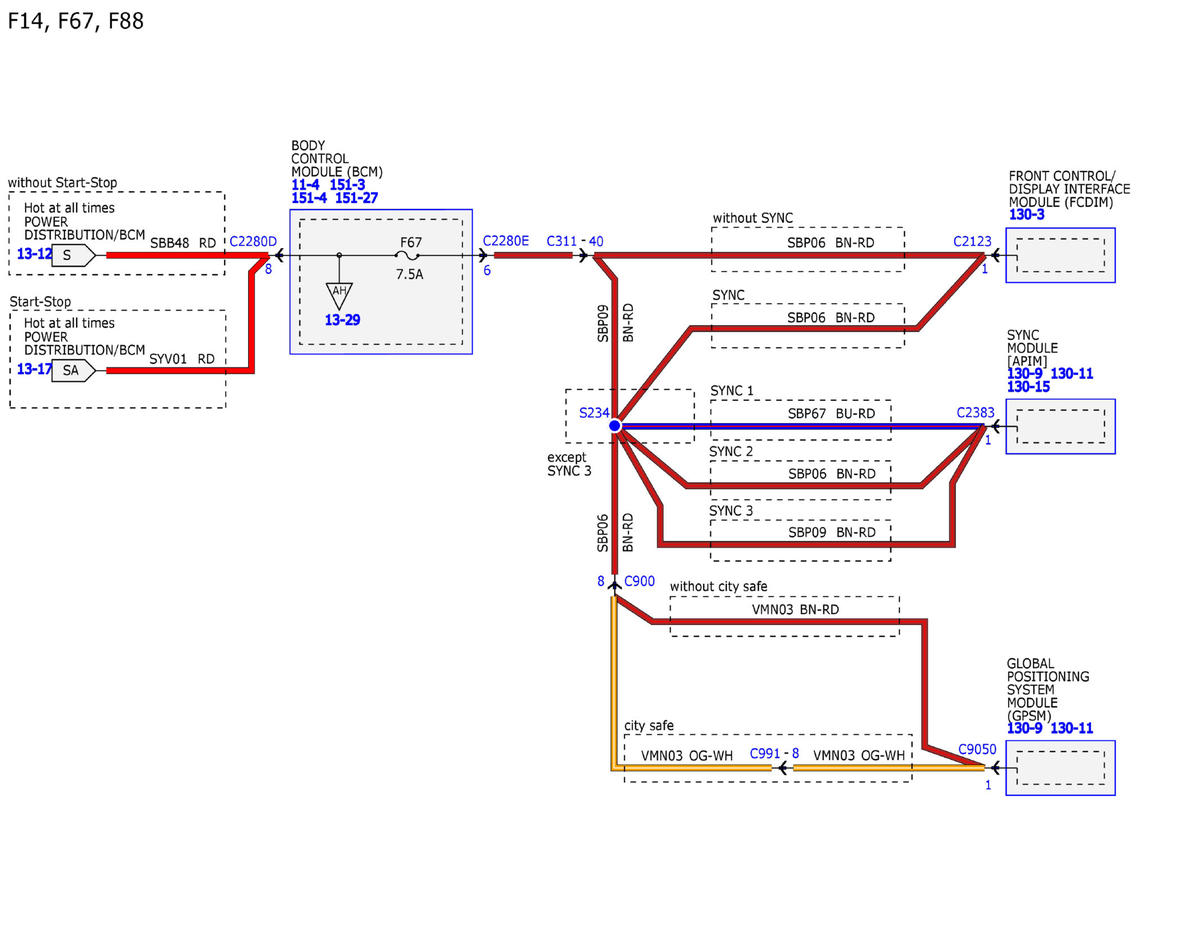

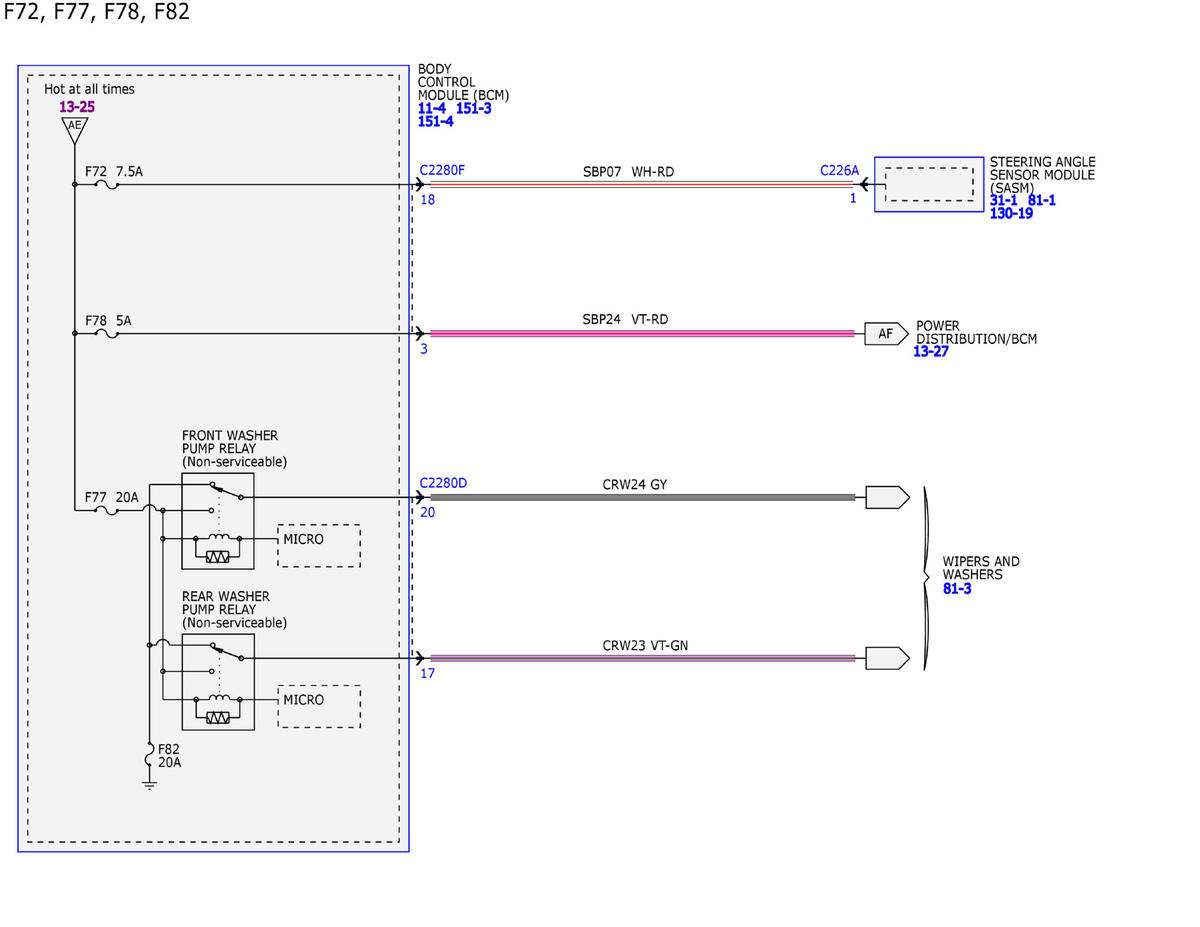

Fig 19: Power Distribution/BCM Wiring Diagram (19 of 35)

GFDW85833

Courtesy of FORD MOTOR COMPANY

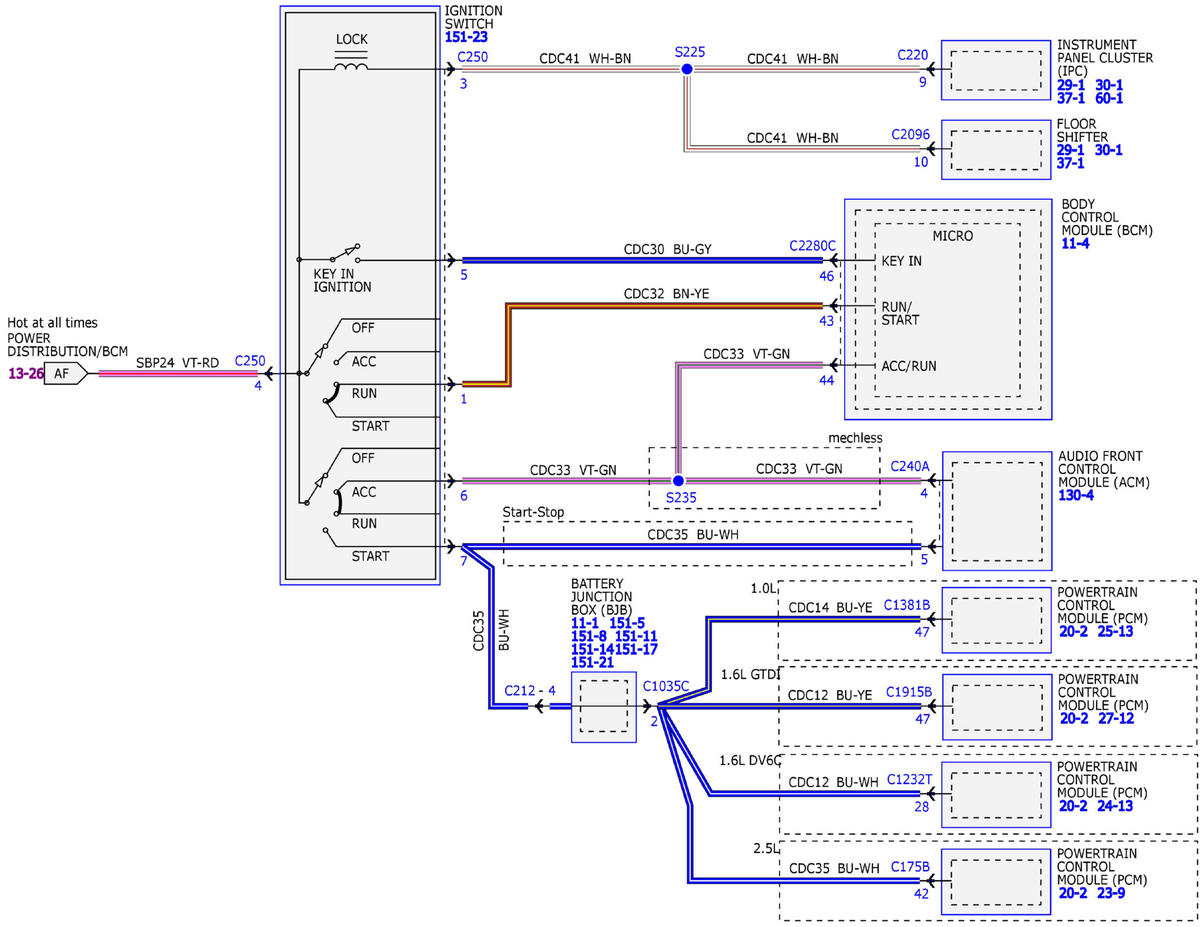

Fig 20: Power Distribution/BCM Wiring Diagram (20 of 35)

GFDW85834

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Distribution/BCM Wiring Diagram (21 of 35)

GFDW85835

Courtesy of FORD MOTOR COMPANY

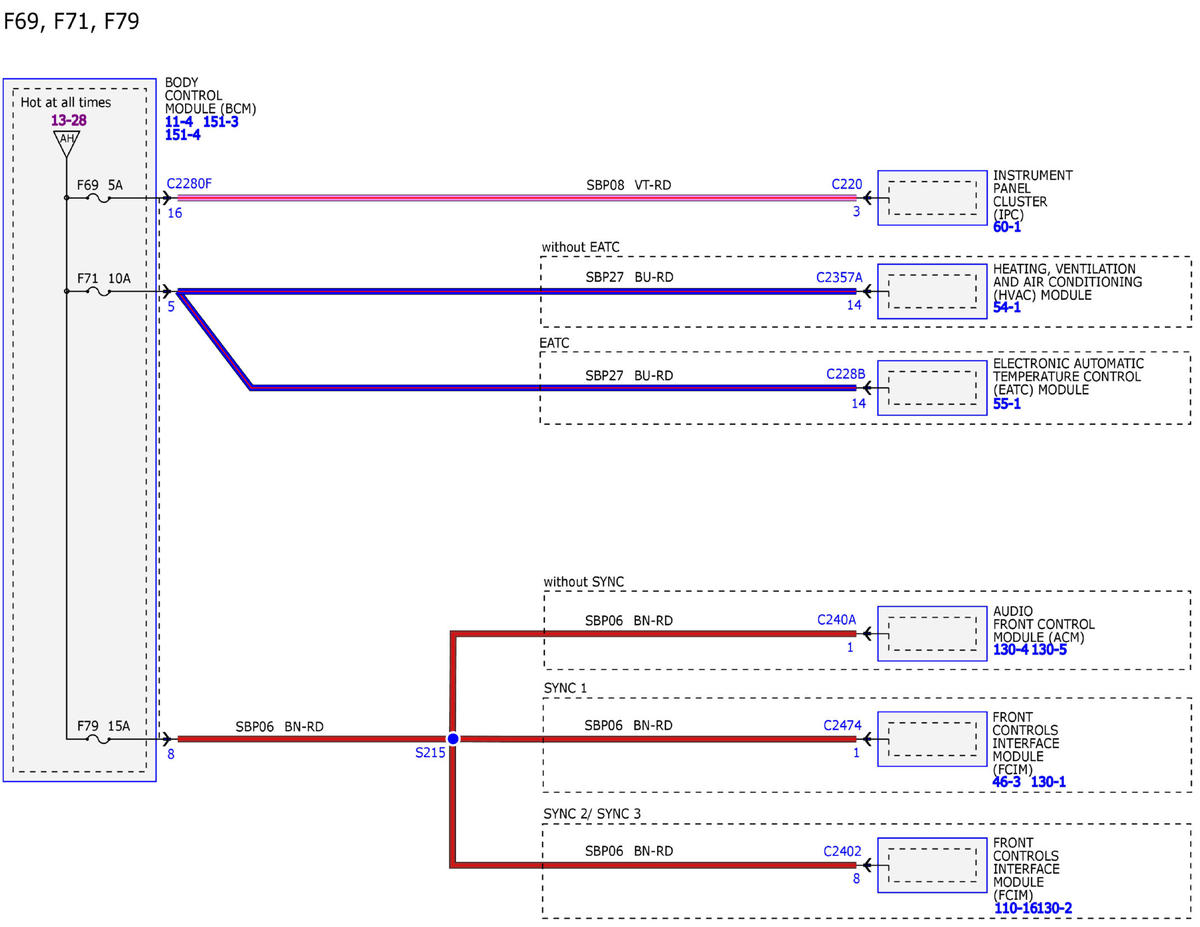

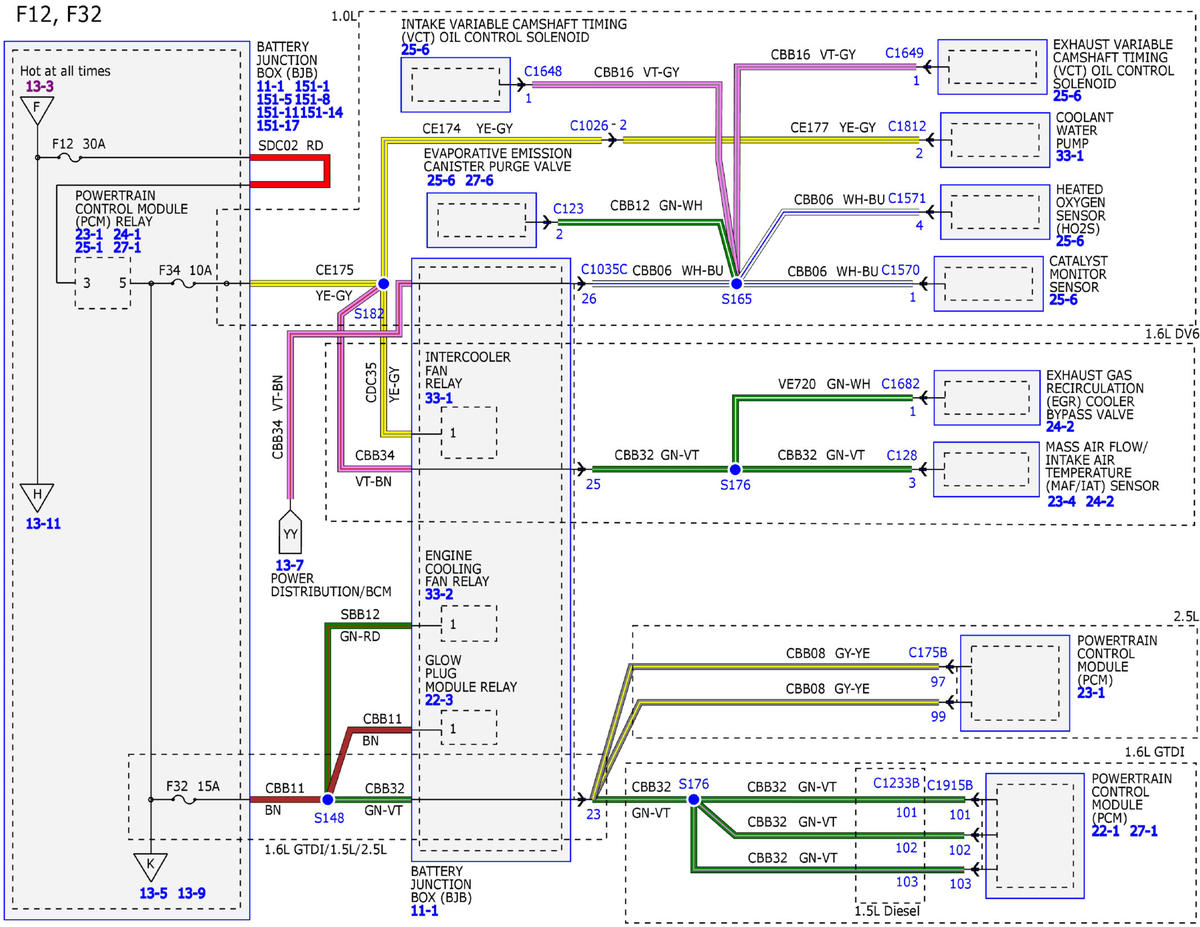

Fig 22: Power Distribution/BCM Wiring Diagram (22 of 35)

GFDW85836

Courtesy of FORD MOTOR COMPANY

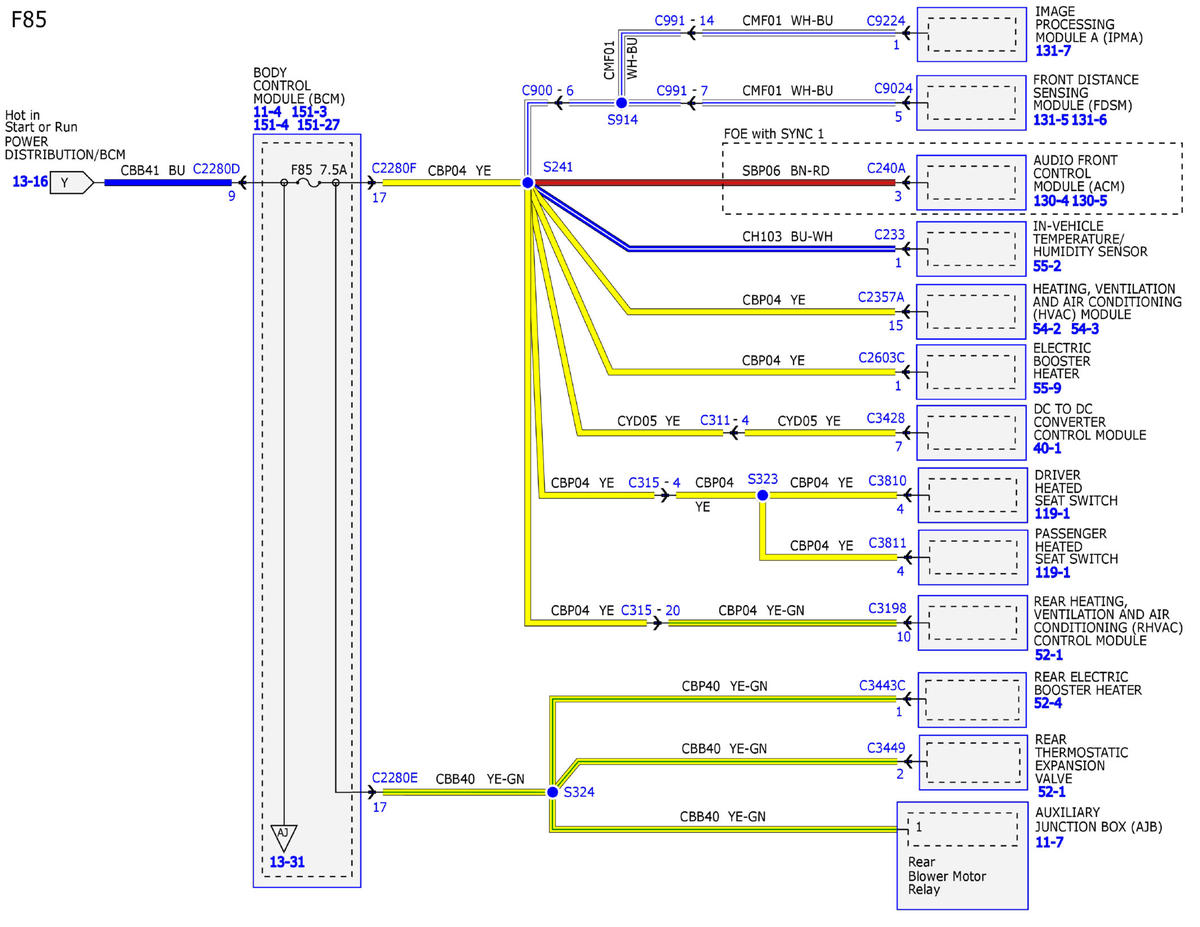

Fig 23: Power Distribution/BCM Wiring Diagram (23 of 35)

GFDW85837

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution/BCM Wiring Diagram (24 of 35)

GFDW85838

Courtesy of FORD MOTOR COMPANY

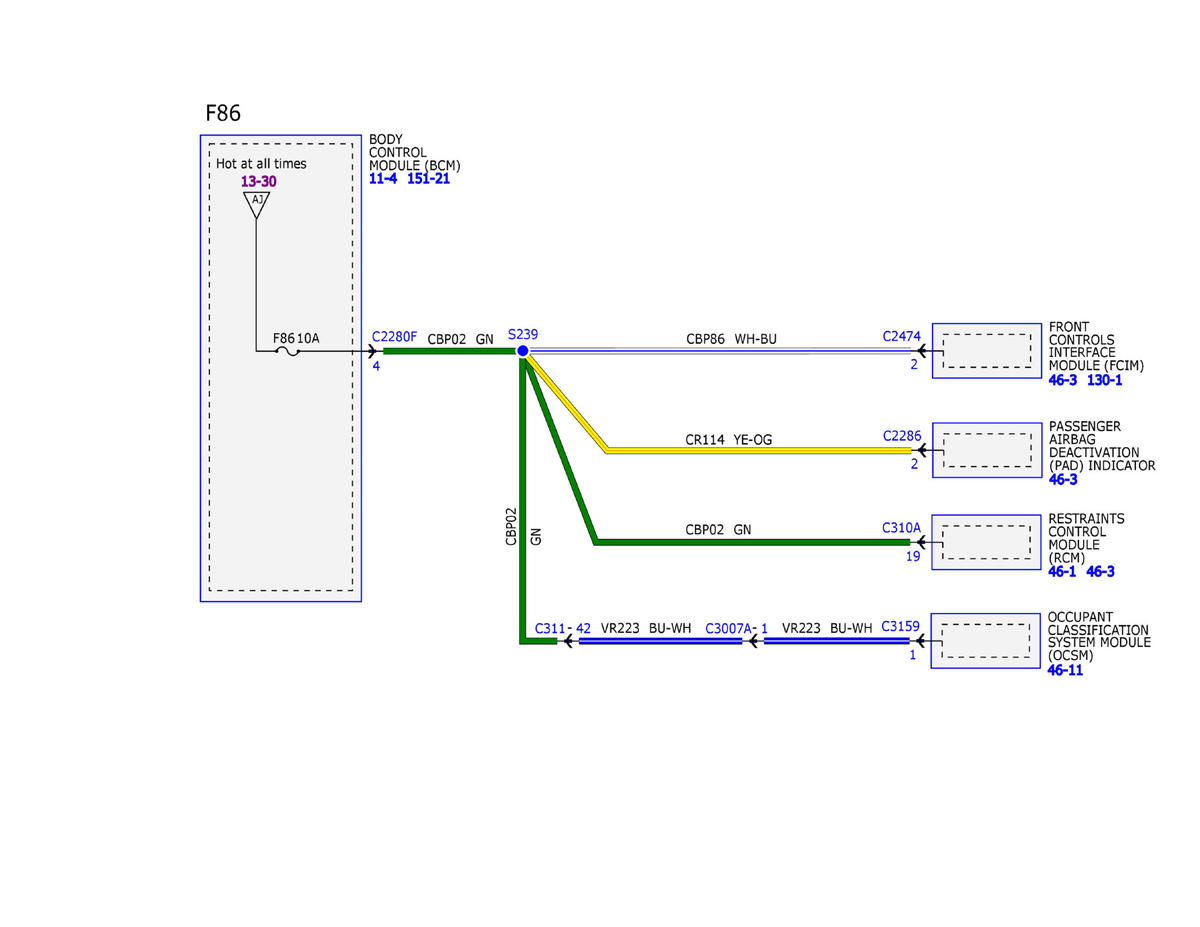

Fig 25: Power Distribution/BCM Wiring Diagram (25 of 35)

GFDW85839

Courtesy of FORD MOTOR COMPANY

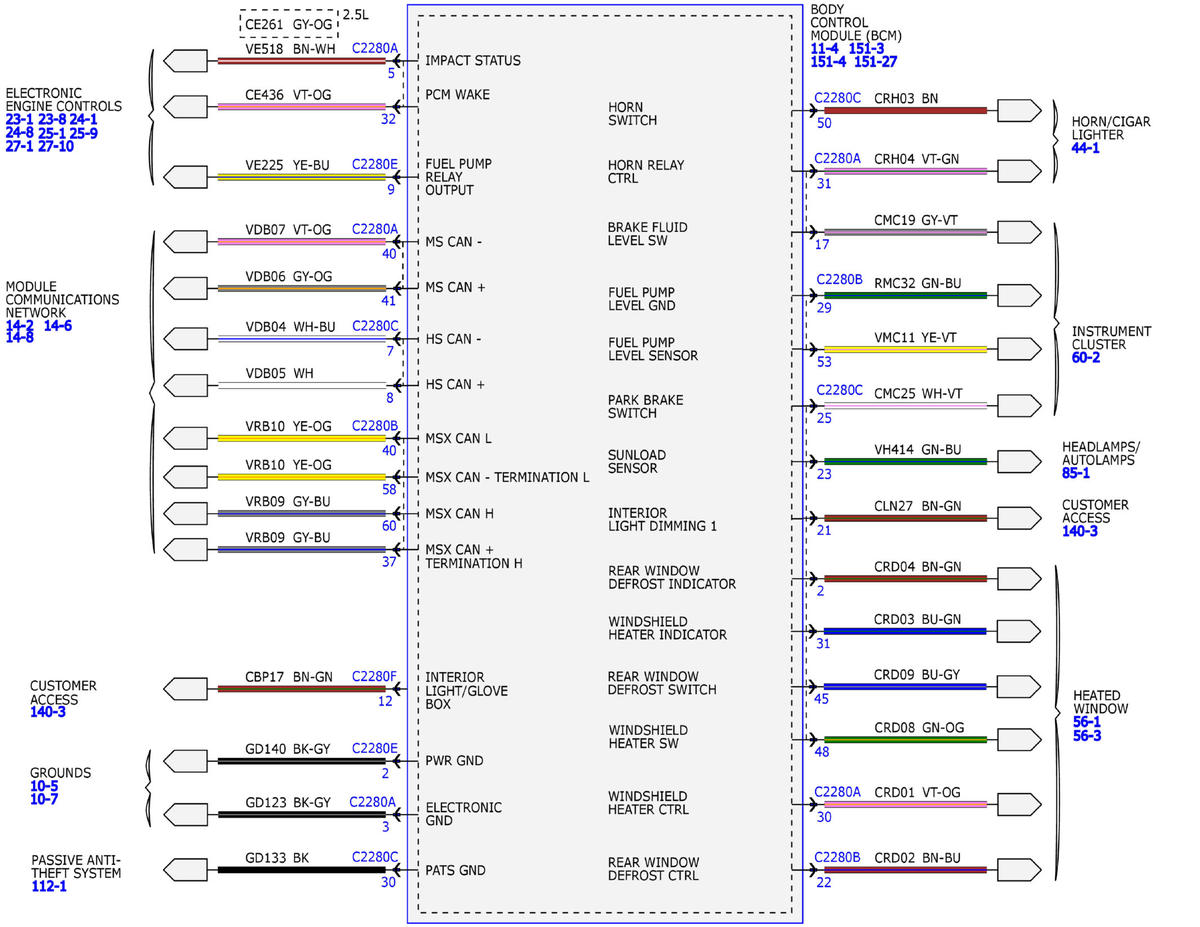

Fig 26: Power Distribution/BCM Wiring Diagram (26 of 35)

GFDW85840

Courtesy of FORD MOTOR COMPANY

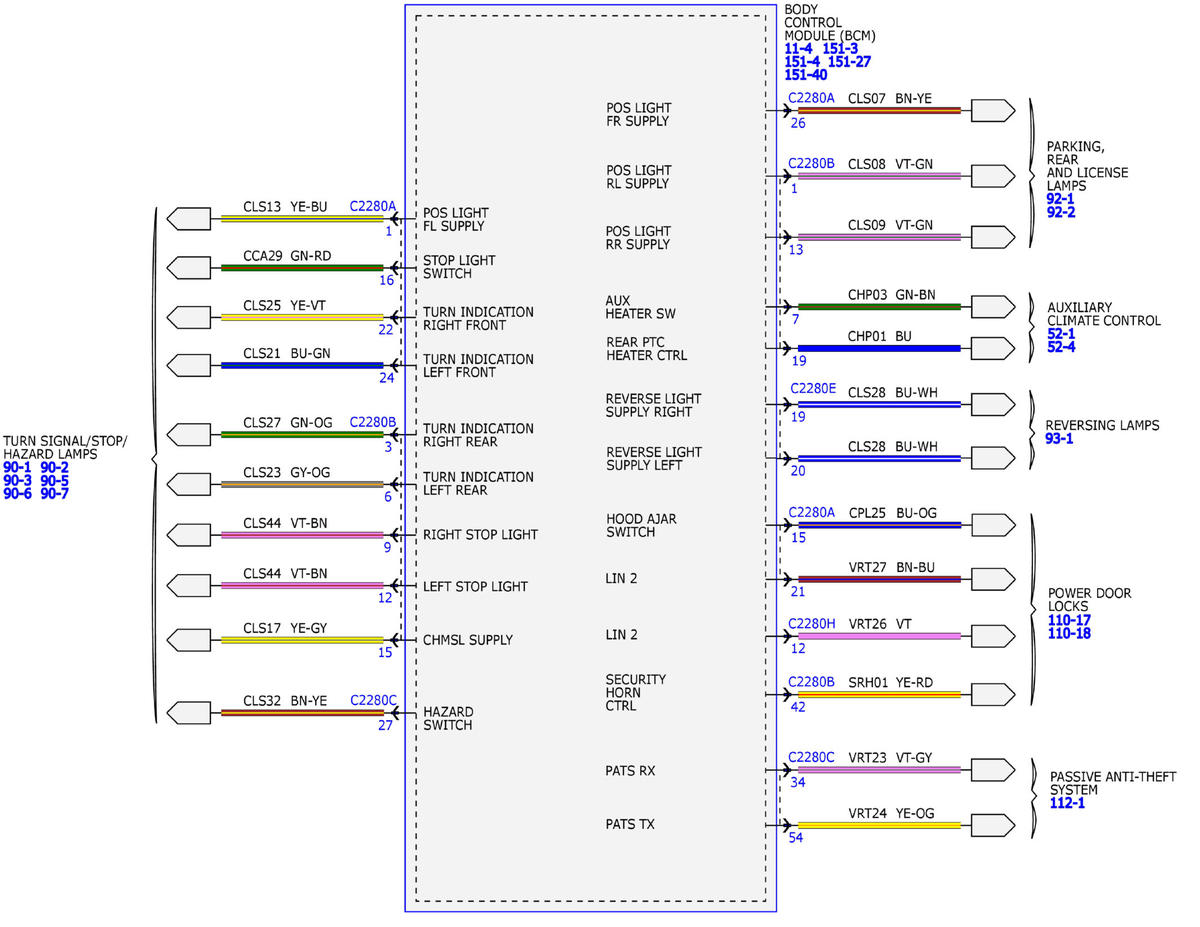

Fig 27: Power Distribution/BCM Wiring Diagram (27 of 35)

GFDW85841

Courtesy of FORD MOTOR COMPANY

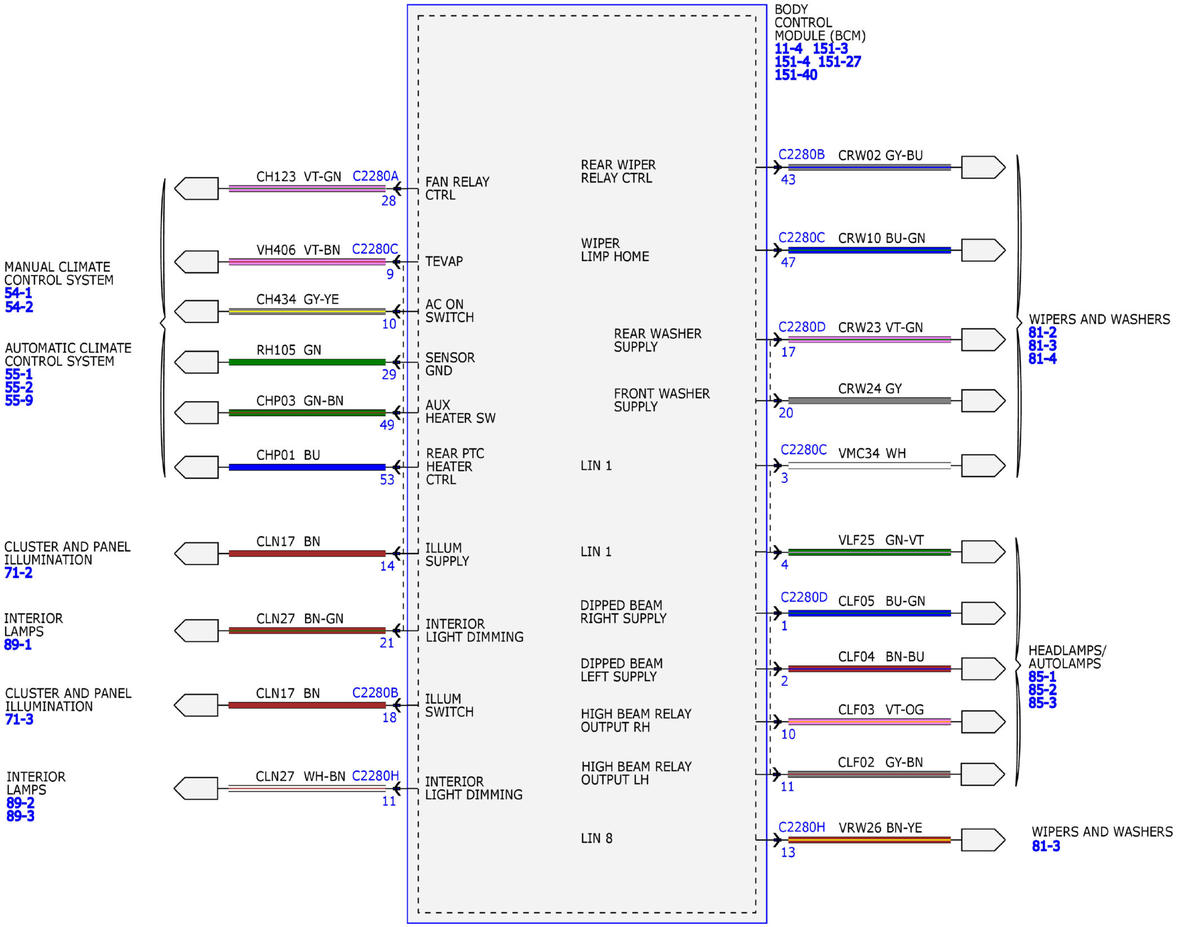

Fig 28: Power Distribution/BCM Wiring Diagram (28 of 35)

GFDW85842

Courtesy of FORD MOTOR COMPANY

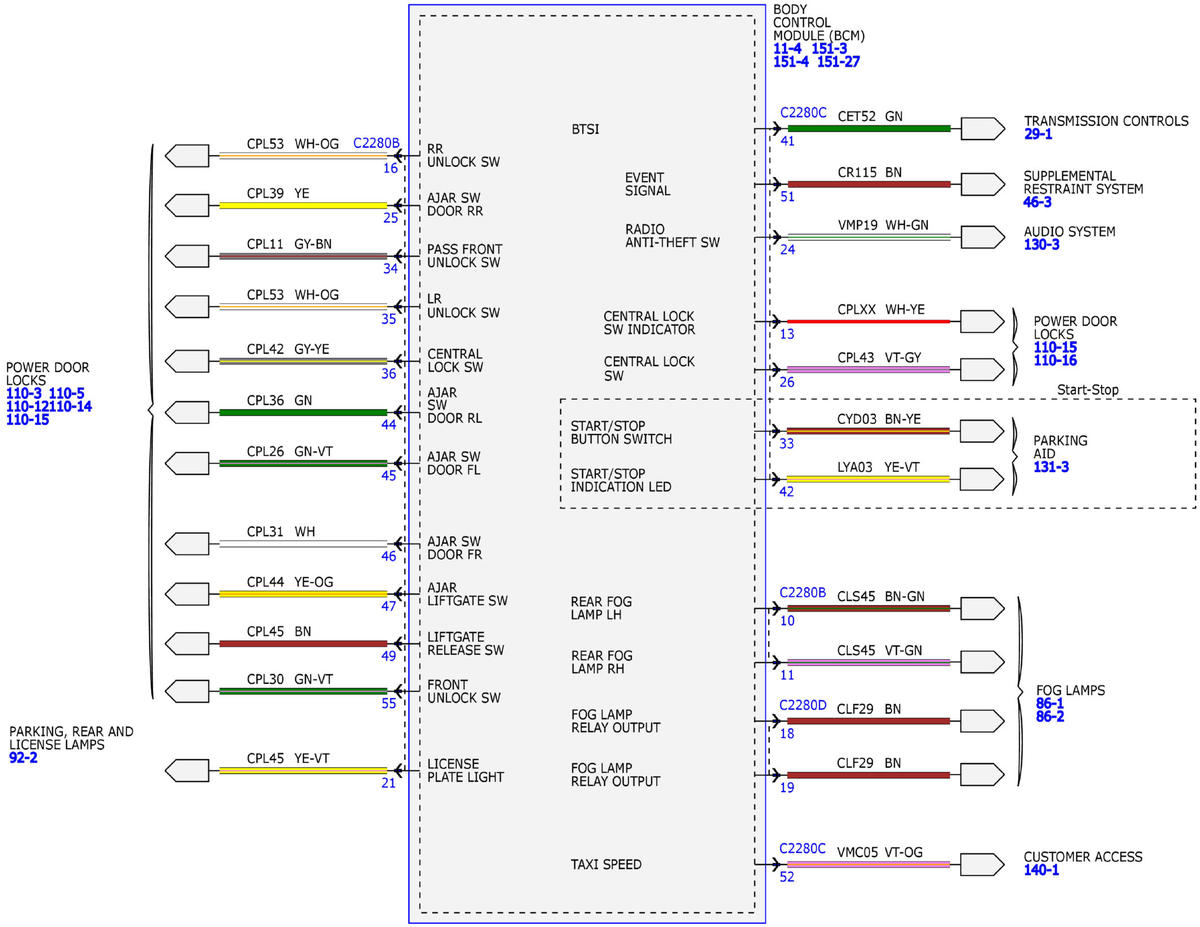

Fig 29: Power Distribution/BCM Wiring Diagram (29 of 35)

GFDW85843

Courtesy of FORD MOTOR COMPANY

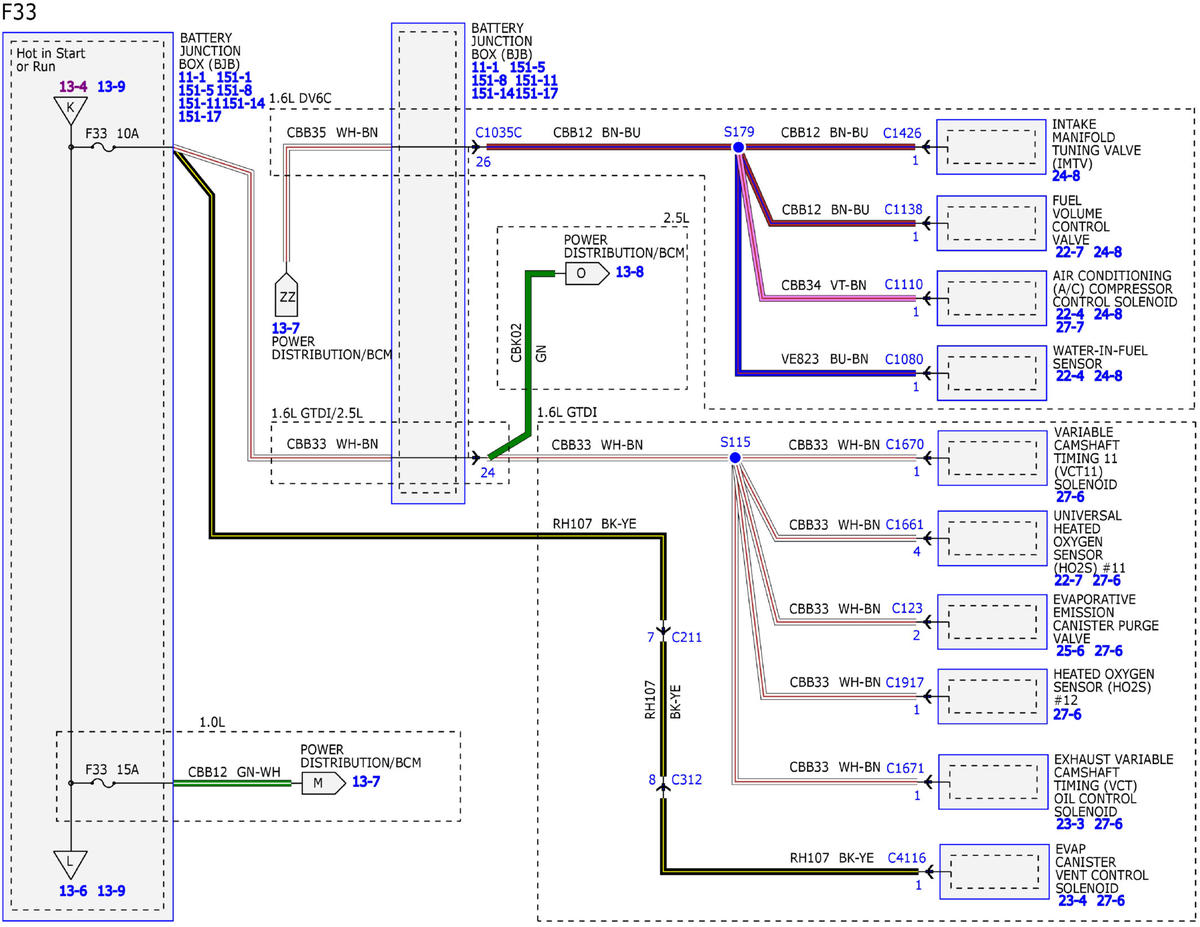

Fig 30: Power Distribution/BCM Wiring Diagram (30 of 35)

GFDW85844

Courtesy of FORD MOTOR COMPANY

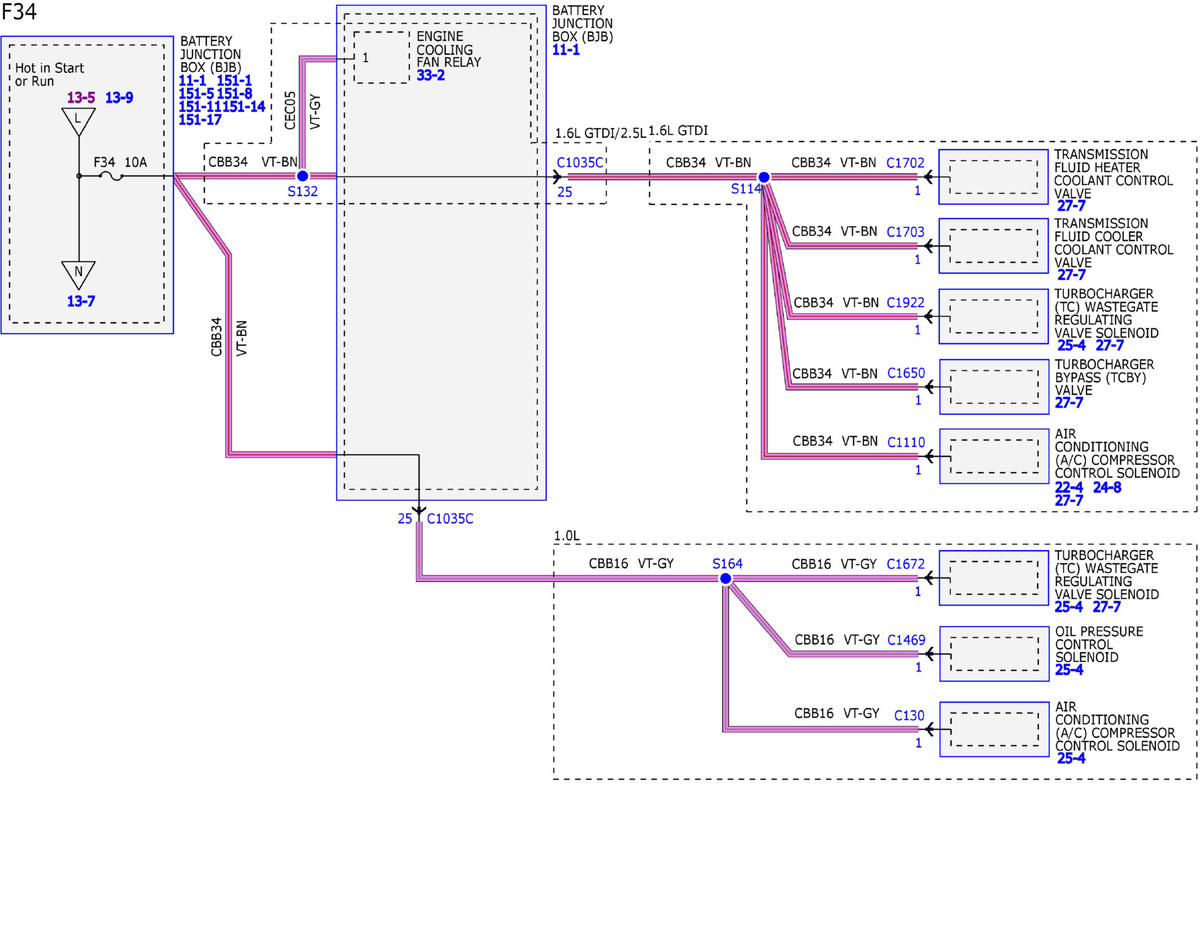

Fig 31: Power Distribution/BCM Wiring Diagram (31 of 35)

GFDW85845

Courtesy of FORD MOTOR COMPANY

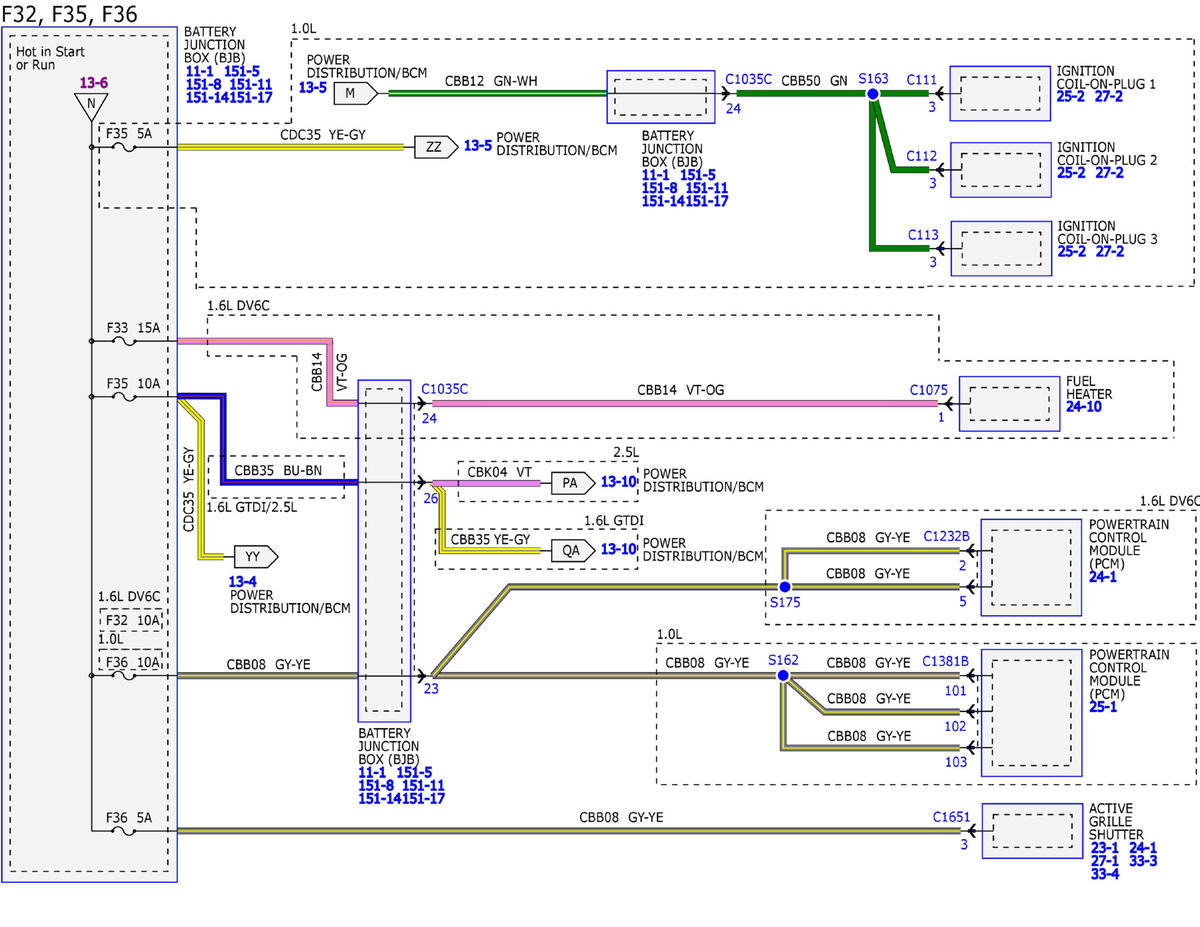

Fig 32: Power Distribution/BCM Wiring Diagram (32 of 35)

GFDW85846

Courtesy of FORD MOTOR COMPANY

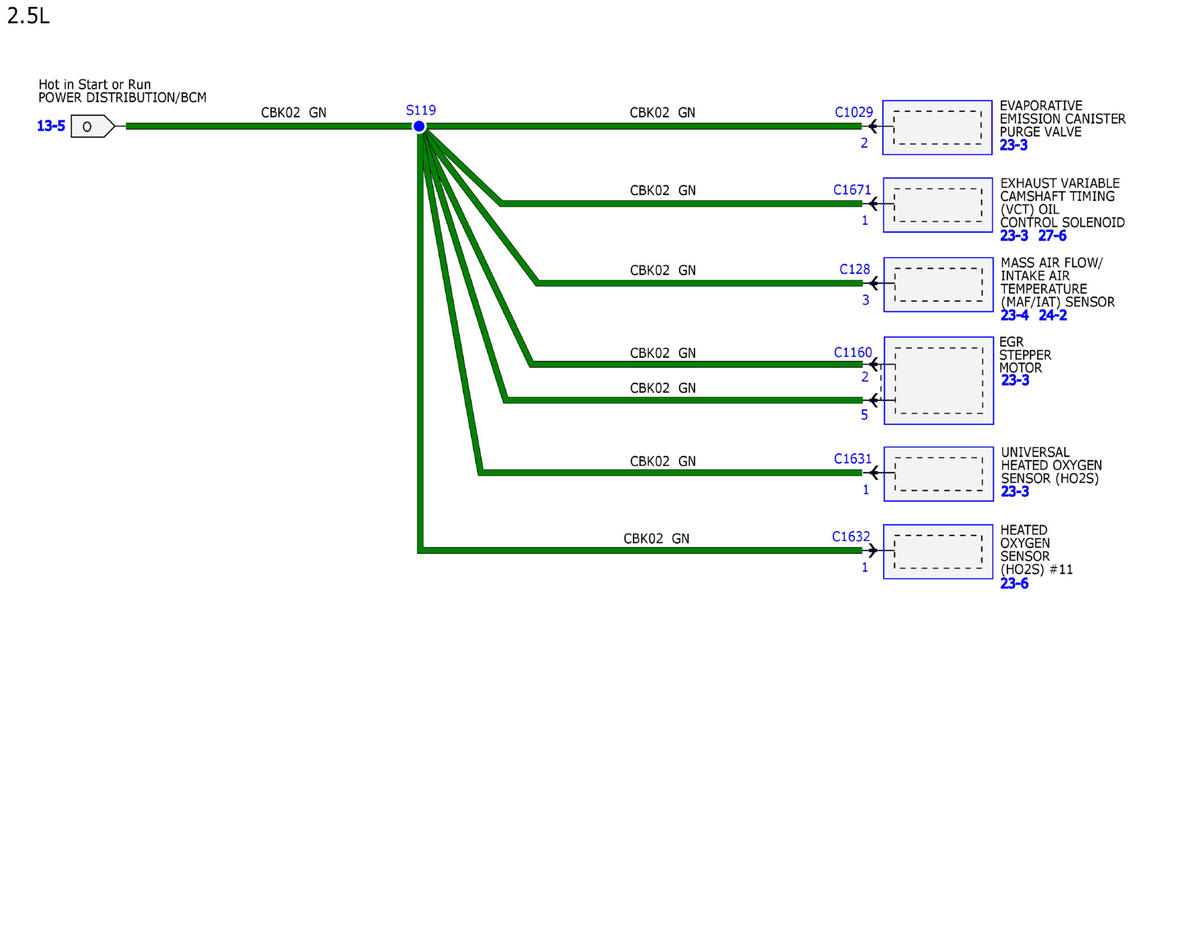

Fig 33: Power Distribution/BCM Wiring Diagram (33 of 35)

GFDW85847

Courtesy of FORD MOTOR COMPANY

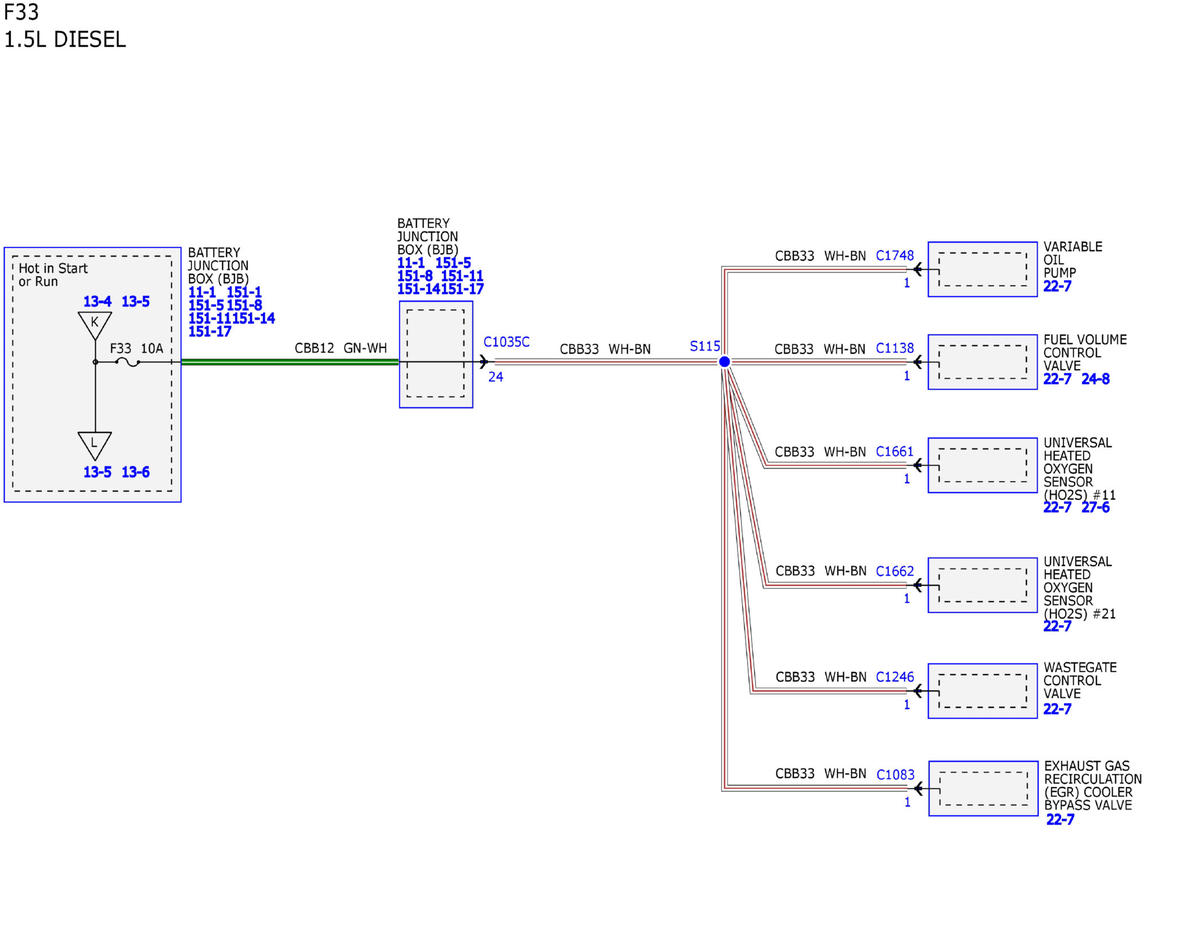

Fig 34: Power Distribution/BCM Wiring Diagram (34 of 35)

GFDW85848

Courtesy of FORD MOTOR COMPANY

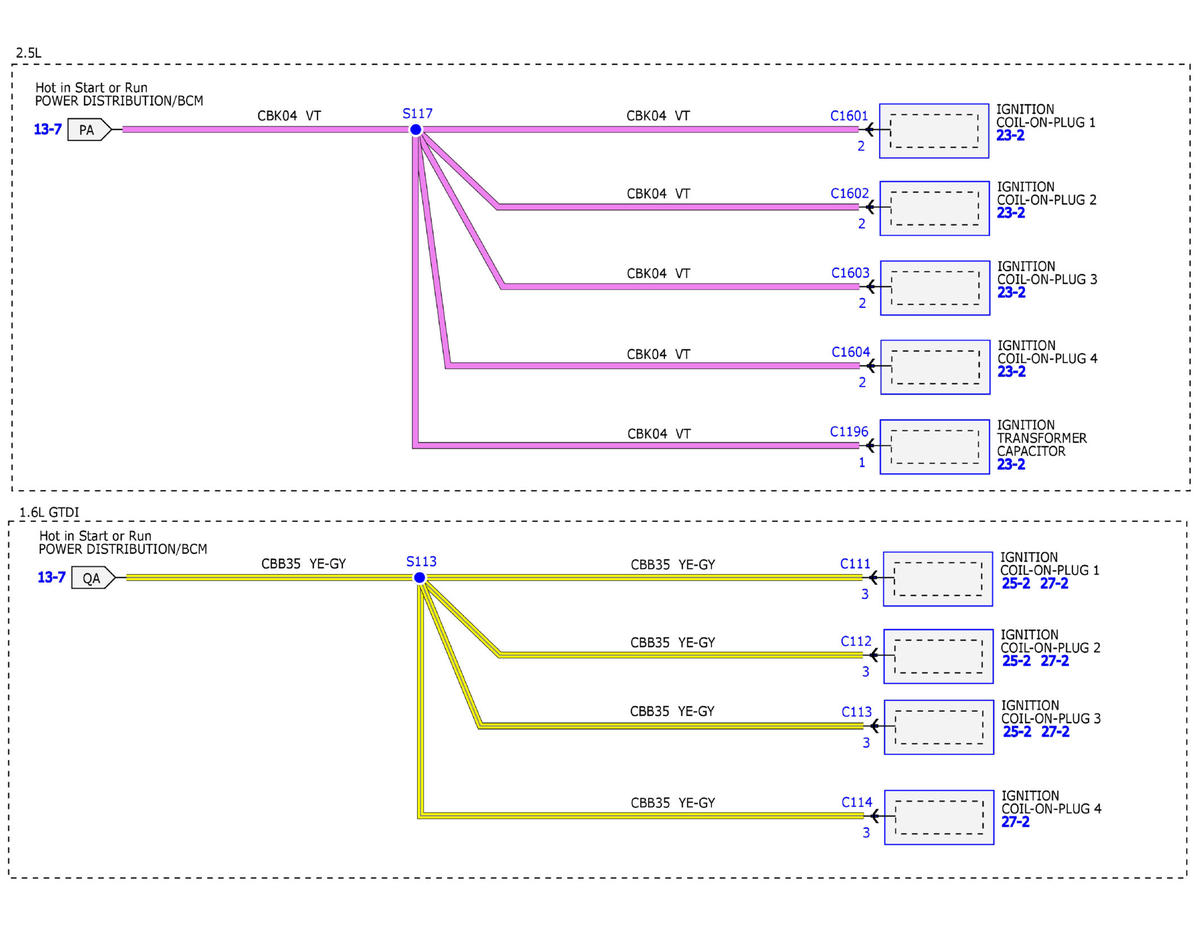

Fig 35: Power Distribution/BCM Wiring Diagram (35 of 35)

GFDW85849

Courtesy of FORD MOTOR COMPANY
