Manual Climate Control System
Manual Climate Control System

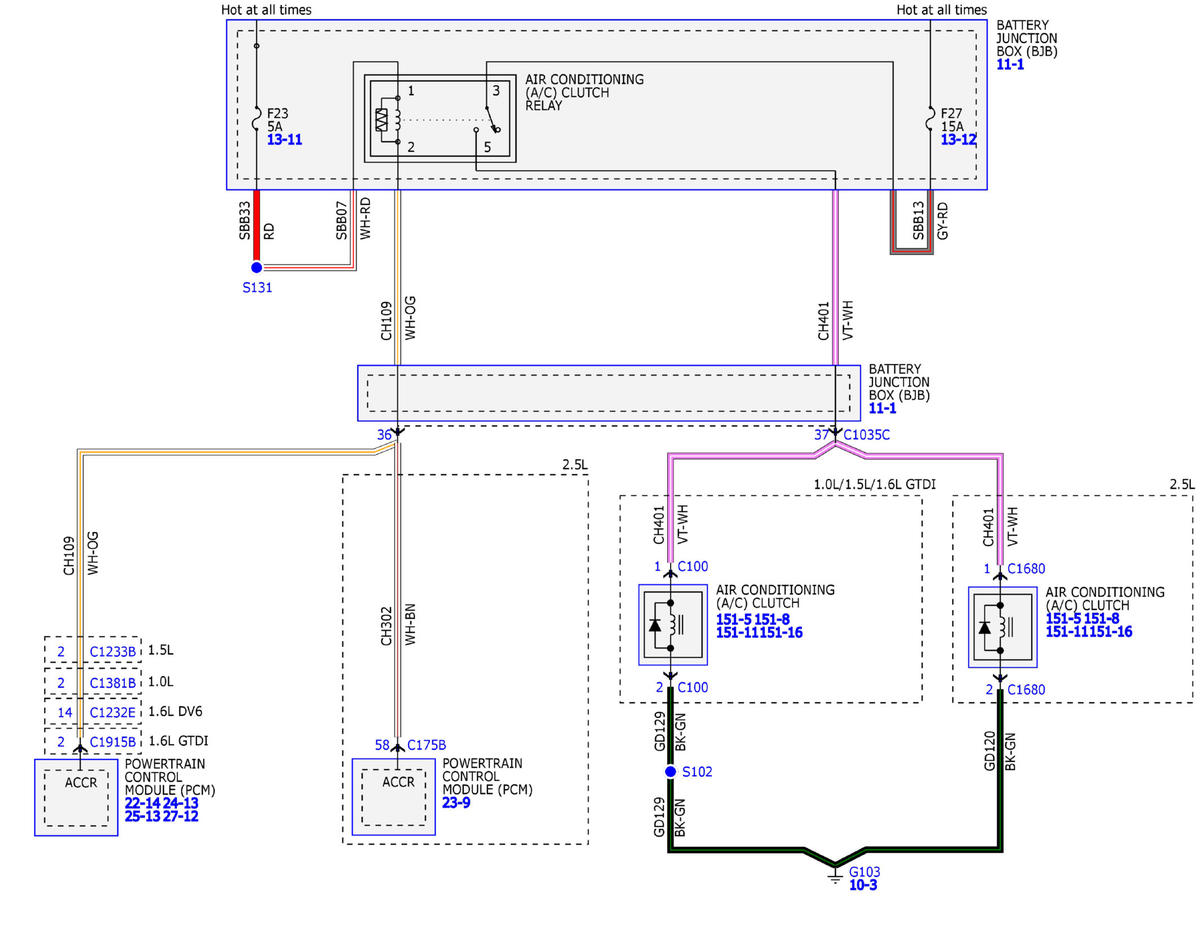

Fig 1: Manual Climate Control System Wiring Diagram (1 of 6)
Courtesy of FORD MOTOR COMPANY

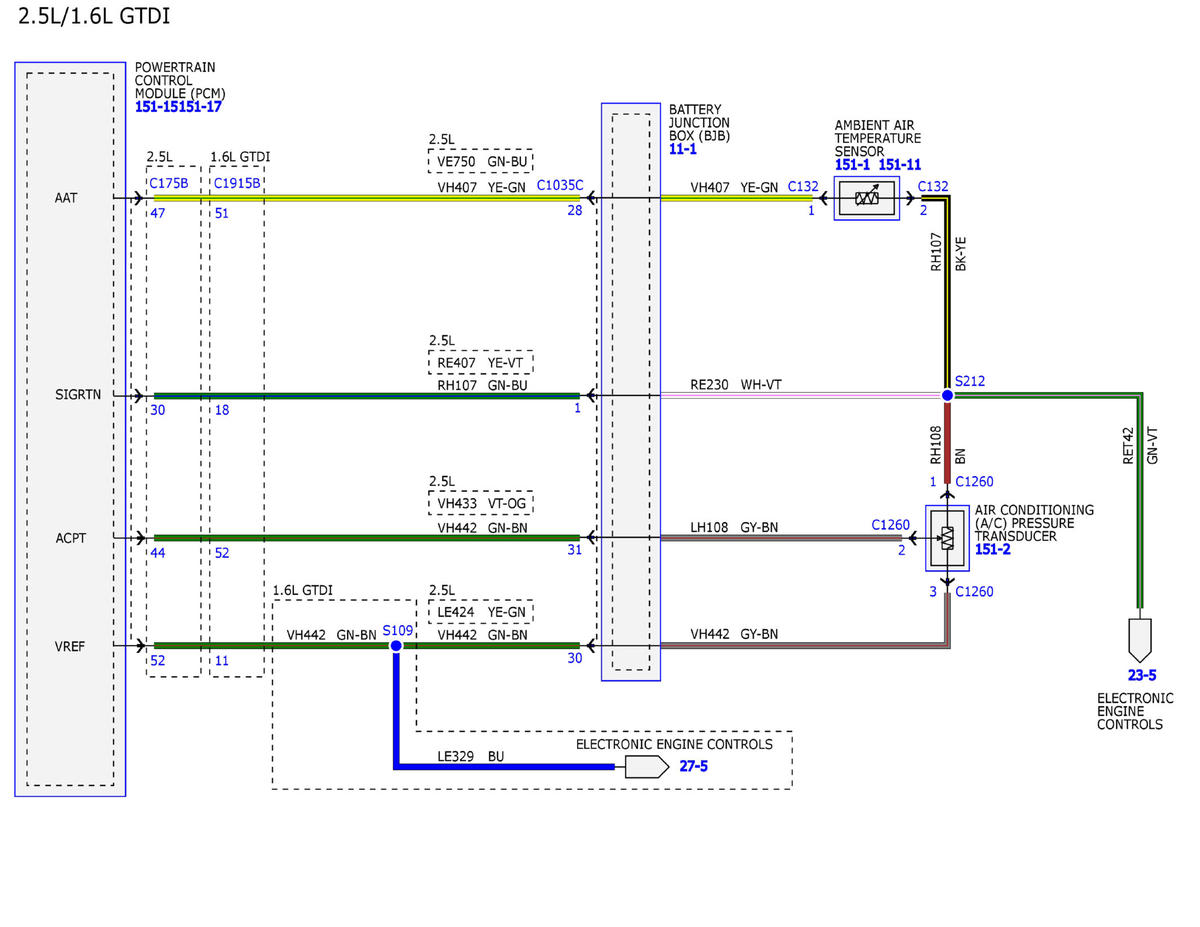

Fig 2: Manual Climate Control System Wiring Diagram (2 of 6)
Courtesy of FORD MOTOR COMPANY

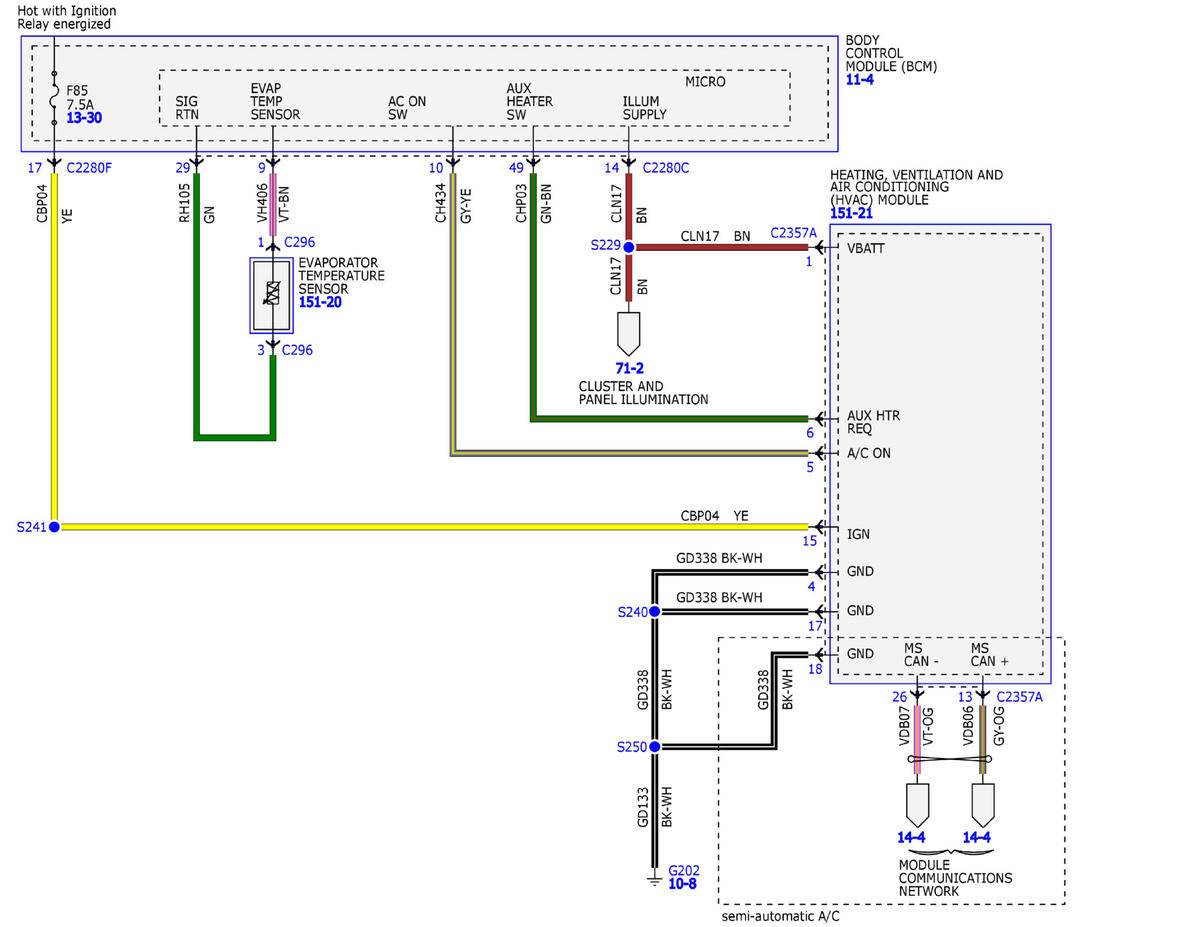

Fig 3: Manual Climate Control System Wiring Diagram (3 of 6)
Courtesy of FORD MOTOR COMPANY

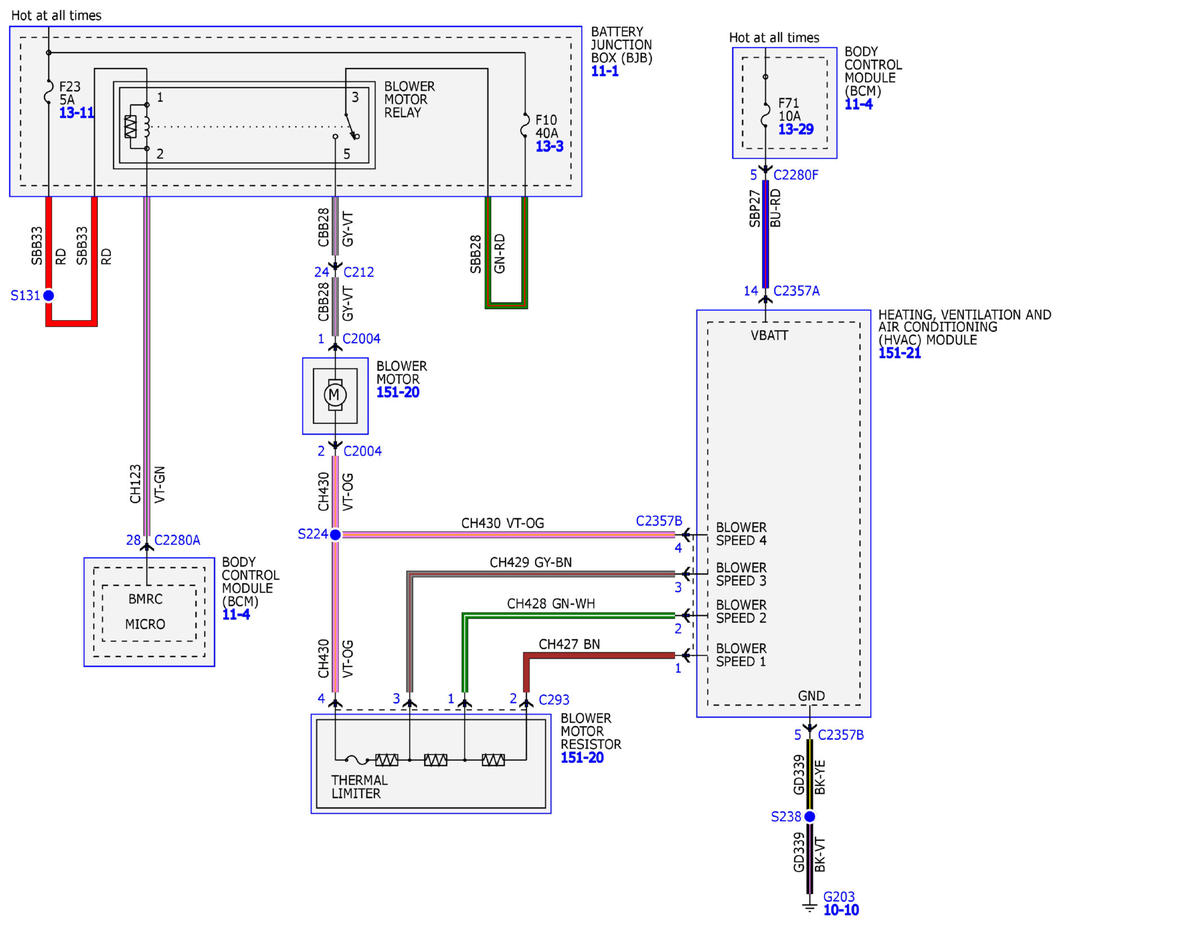

Fig 4: Manual Climate Control System Wiring Diagram (4 of 6)
Courtesy of FORD MOTOR COMPANY

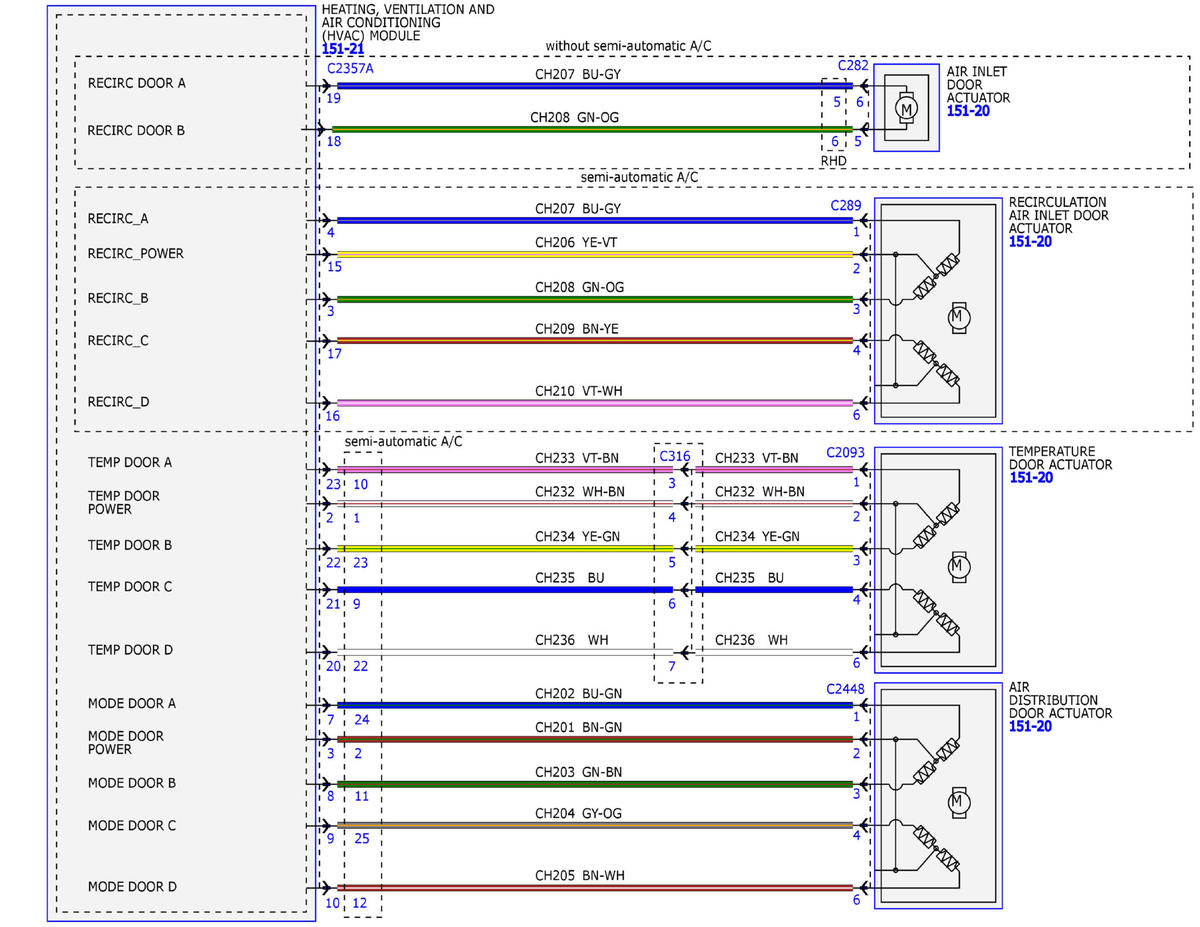

Fig 5: Manual Climate Control System Wiring Diagram (5 of 6)
Courtesy of FORD MOTOR COMPANY

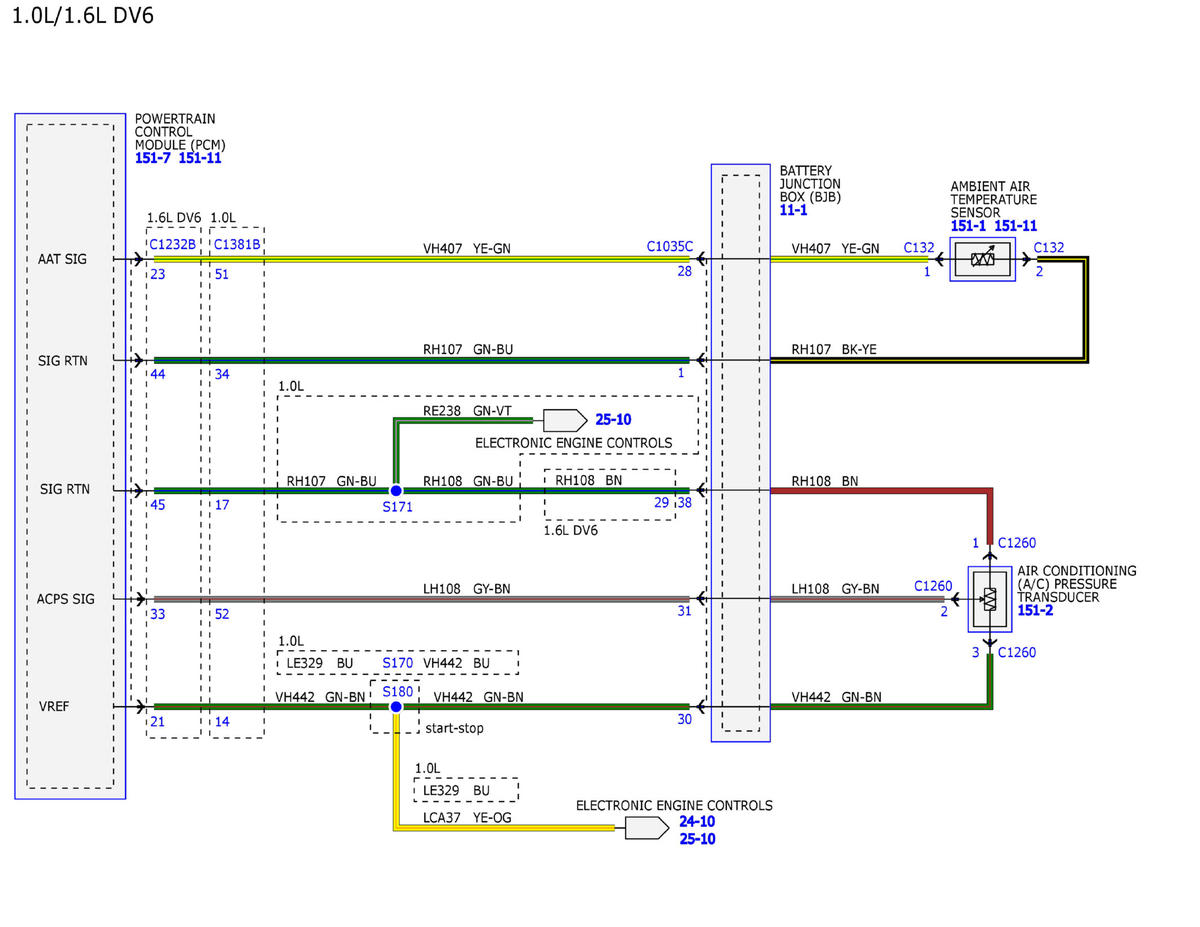

Fig 6: Manual Climate Control System Wiring Diagram (6 of 6)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
