Auxiliary Climate Control
Auxiliary Climate Control

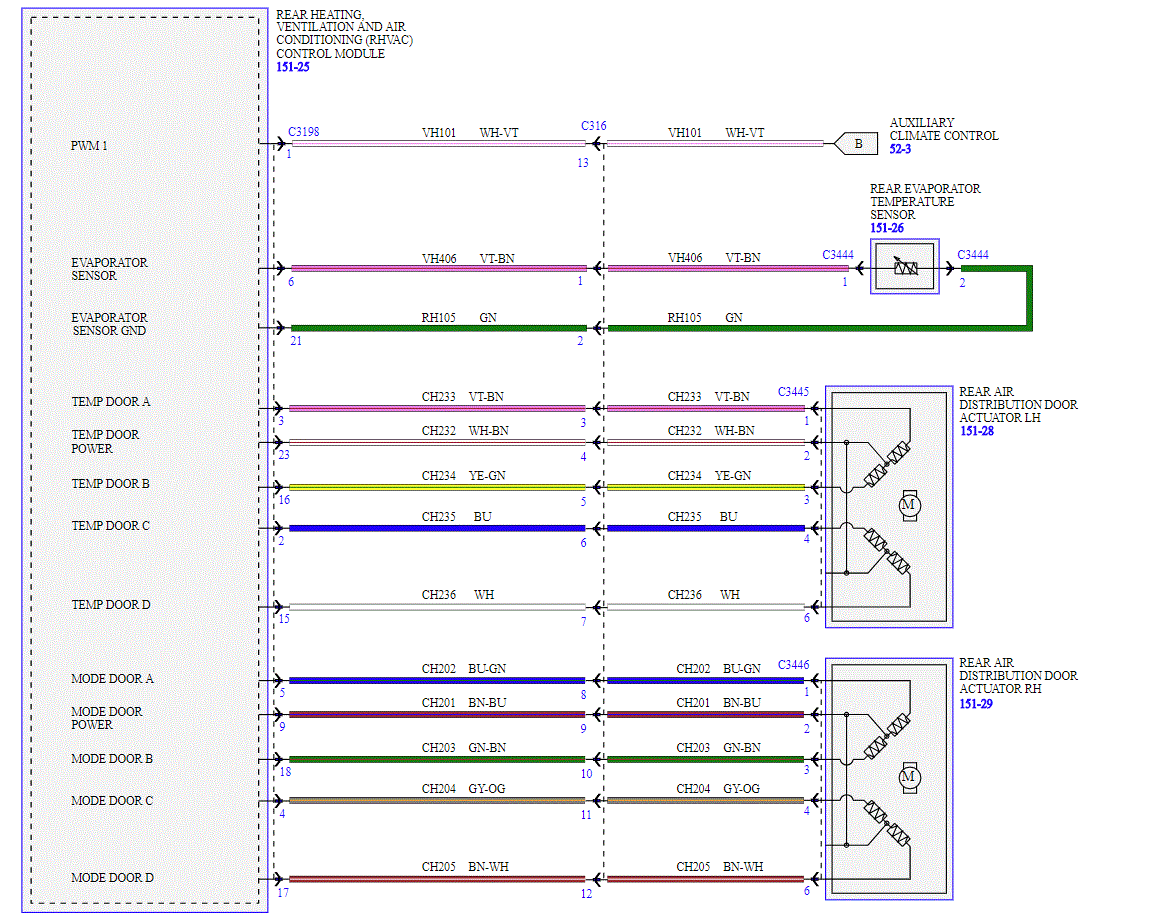

Fig 1: Auxiliary Climate Control Wiring Diagram (1 of 5)
Courtesy of FORD MOTOR COMPANY

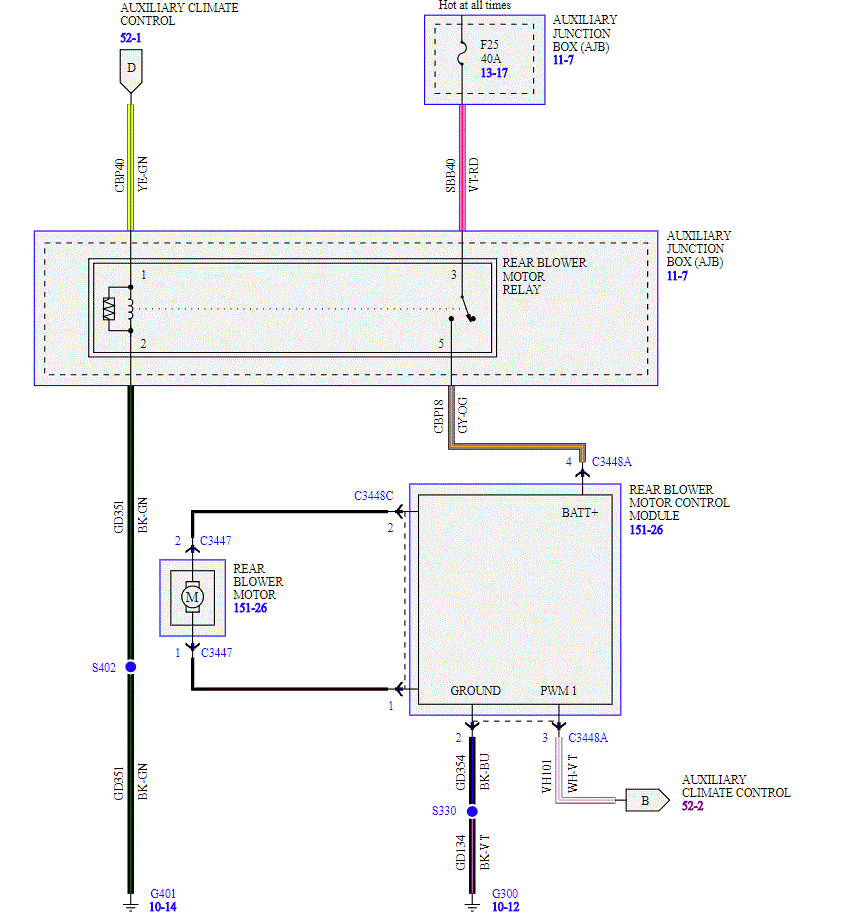

Fig 2: Auxiliary Climate Control Wiring Diagram (2 of 5)
Courtesy of FORD MOTOR COMPANY

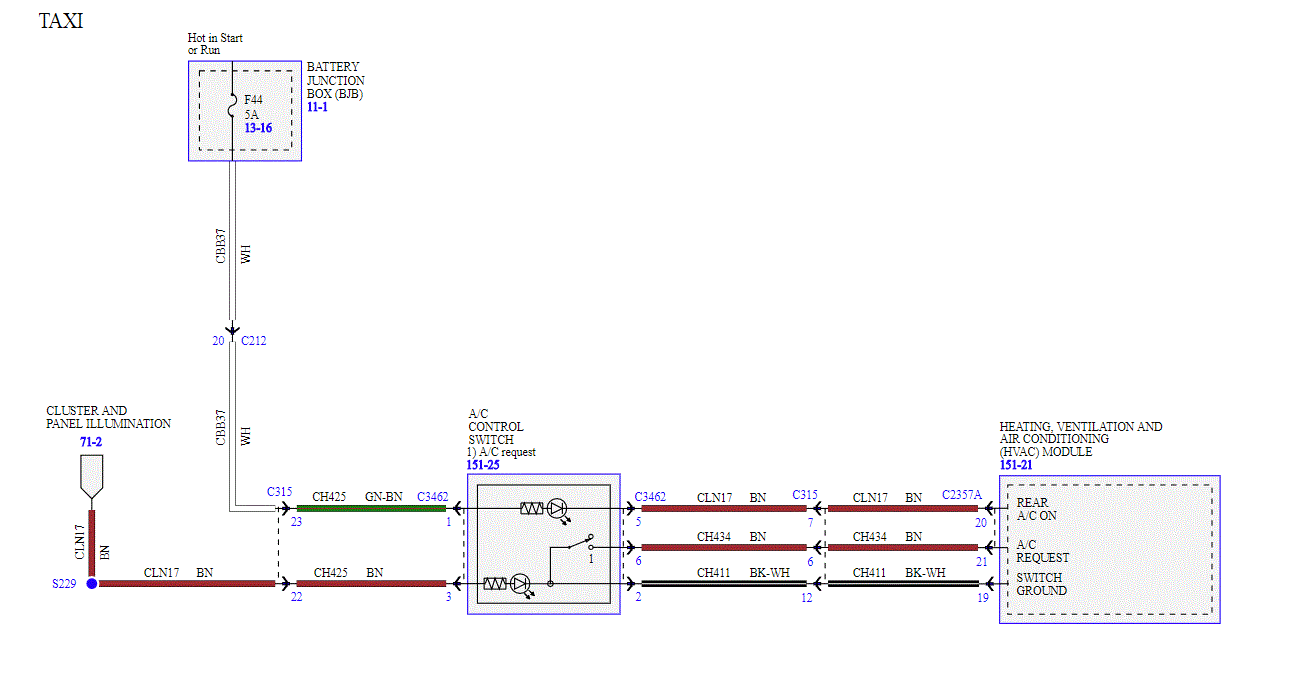

Fig 3: Auxiliary Climate Control Wiring Diagram (3 of 5)
Courtesy of FORD MOTOR COMPANY

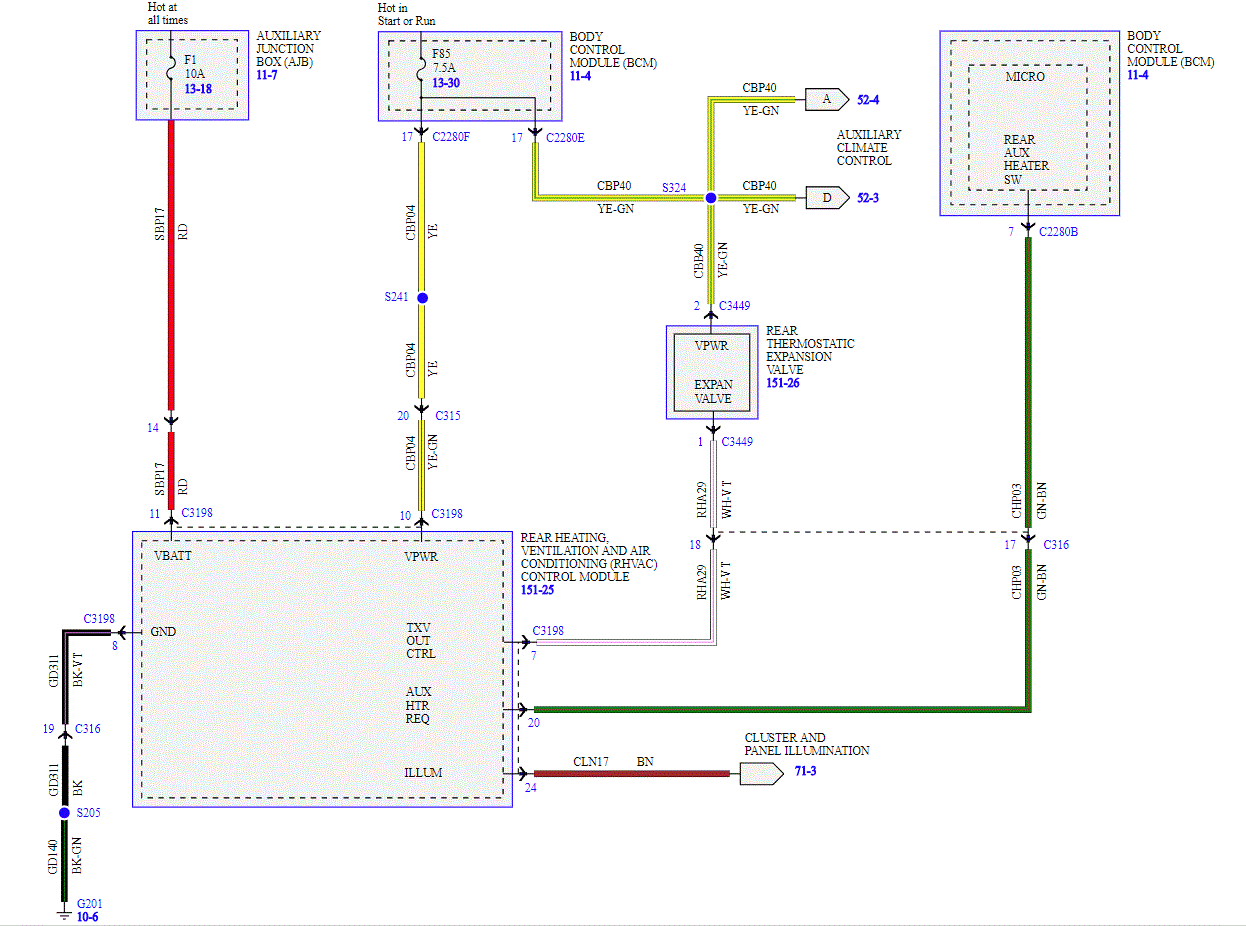

Fig 4: Auxiliary Climate Control Wiring Diagram (4 of 5)
Courtesy of FORD MOTOR COMPANY

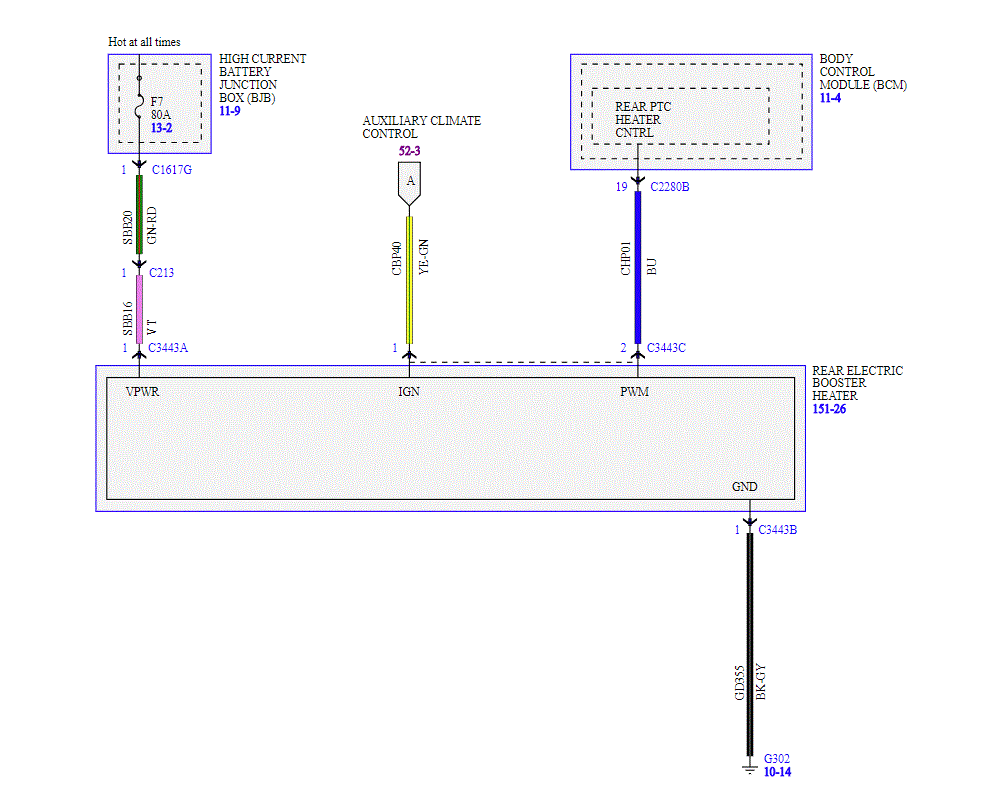

Fig 5: Auxiliary Climate Control Wiring Diagram (5 of 5)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
