Automatic Climate Control System

Fig 1: Automatic Climate Control System Wiring Diagram (1 of 10)
GFDW85704Courtesy of FORD MOTOR COMPANY
Fig 2: Automatic Climate Control System Wiring Diagram (2 of 10)
GFDW85705Courtesy of FORD MOTOR COMPANY
Fig 3: Automatic Climate Control System Wiring Diagram (3 of 10)
GFDW85706Courtesy of FORD MOTOR COMPANY
Fig 4: Automatic Climate Control System Wiring Diagram (4 of 10)
GFDW85707Courtesy of FORD MOTOR COMPANY
Fig 5: Automatic Climate Control System Wiring Diagram (5 of 10)
GFDW85708Courtesy of FORD MOTOR COMPANY
Fig 6: Automatic Climate Control System Wiring Diagram (6 of 10)
GFDW85709Courtesy of FORD MOTOR COMPANY
Fig 7: Automatic Climate Control System Wiring Diagram (7 of 10)
GFDW85710Courtesy of FORD MOTOR COMPANY

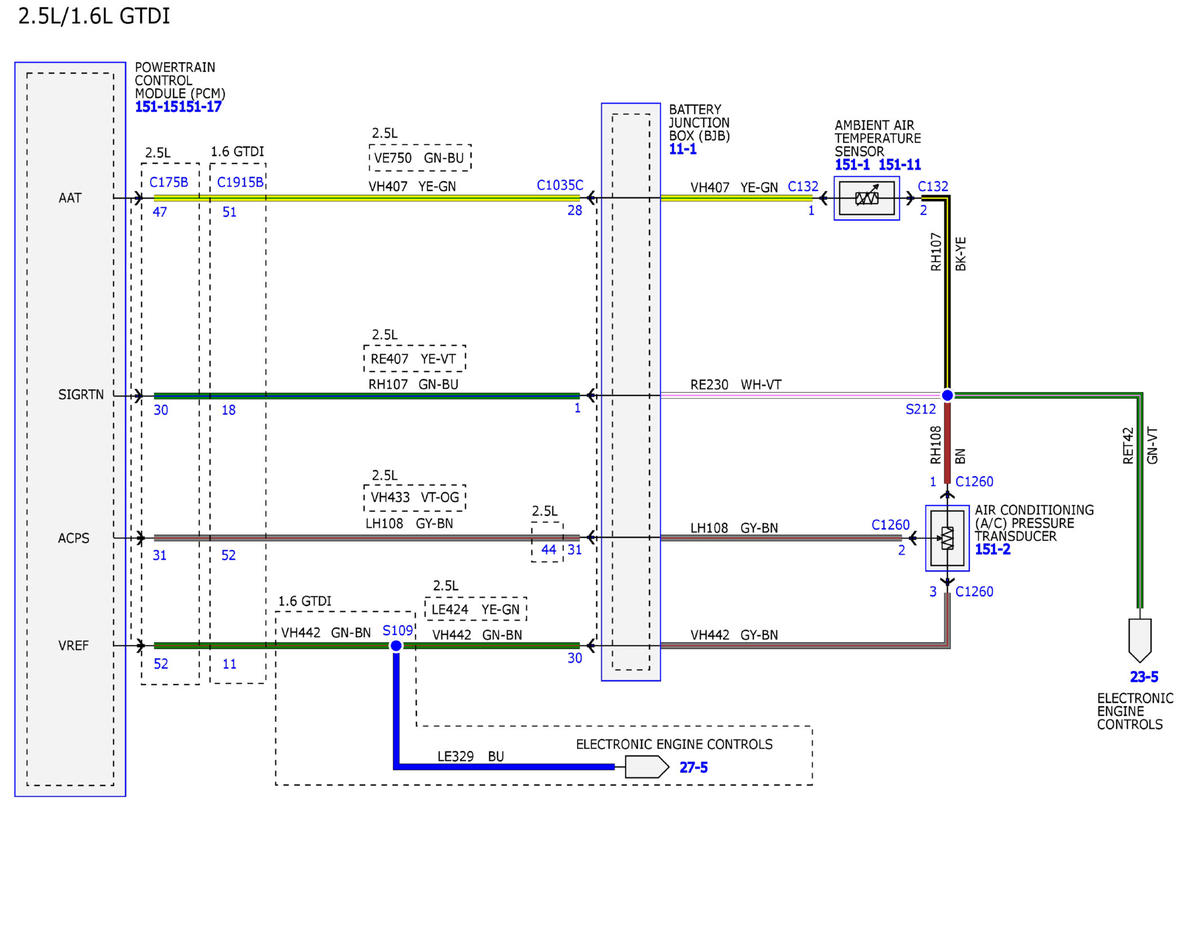

Fig 8: Automatic Climate Control System Wiring Diagram (8 of 10)
GFDW85711Courtesy of FORD MOTOR COMPANY
Fig 9: Automatic Climate Control System Wiring Diagram (9 of 10)
GFDW85712Courtesy of FORD MOTOR COMPANY
Fig 10: Automatic Climate Control System Wiring Diagram (10 of 10)
GFDW85713Courtesy of FORD MOTOR COMPANY
