Audio System/Navigation

Fig 1: Audio System/Navigation Wiring Diagram (1 of 22)

GFDW85680

Courtesy of FORD MOTOR COMPANY

Fig 2: Audio System/Navigation Wiring Diagram (2 of 22)

GFDW85681

Courtesy of FORD MOTOR COMPANY

Fig 3: Audio System/Navigation Wiring Diagram (3 of 22)

GFDW85682

Courtesy of FORD MOTOR COMPANY

Fig 4: Audio System/Navigation Wiring Diagram (4 of 22)

GFDW85683

Courtesy of FORD MOTOR COMPANY

Fig 5: Audio System/Navigation Wiring Diagram (5 of 22)

GFDW85684

Courtesy of FORD MOTOR COMPANY

Fig 6: Audio System/Navigation Wiring Diagram (6 of 22)

GFDW85685

Courtesy of FORD MOTOR COMPANY

Fig 7: Audio System/Navigation Wiring Diagram (7 of 22)

GFDW85686

Courtesy of FORD MOTOR COMPANY

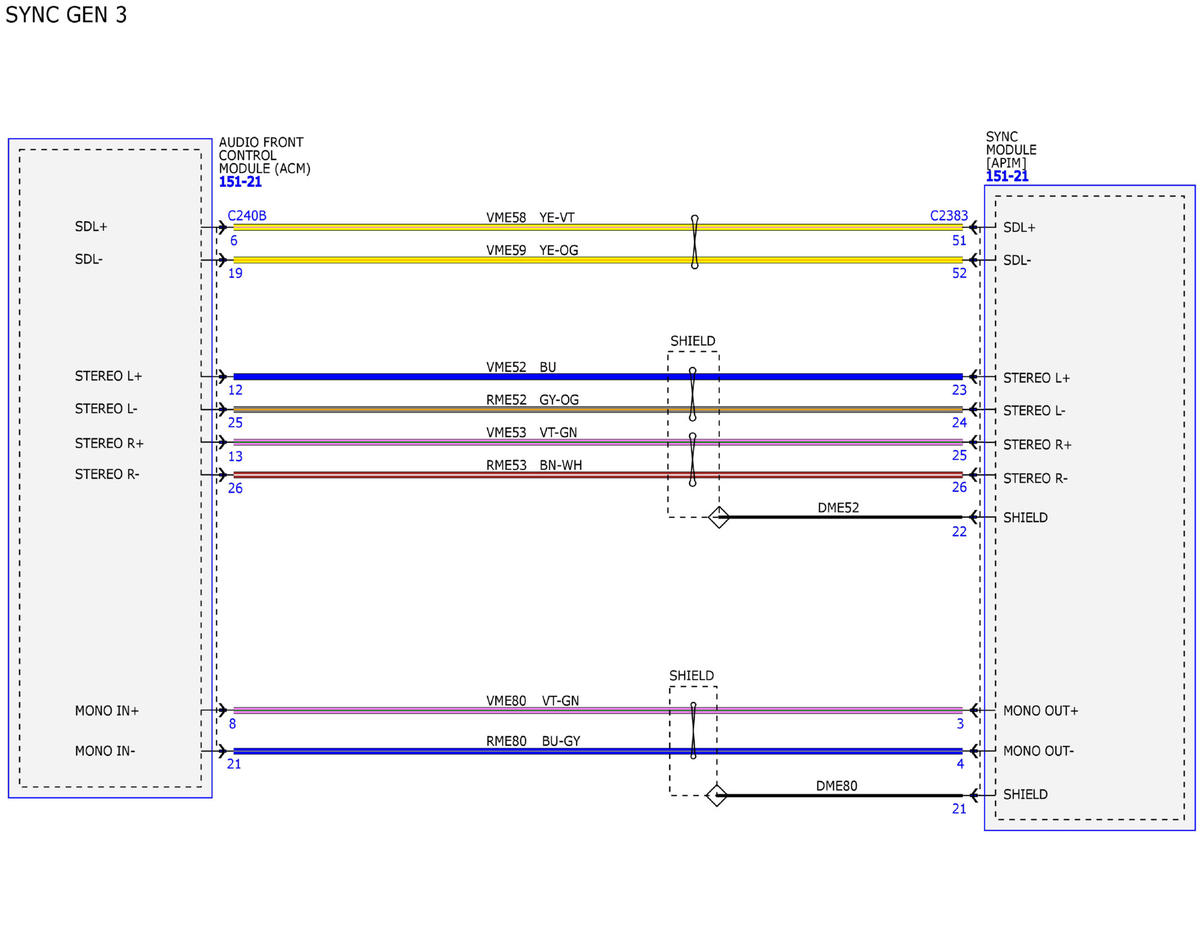

Fig 8: Audio System/Navigation Wiring Diagram (8 of 22)

GFDW85687

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation Wiring Diagram (9 of 22)

GFDW85688

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation Wiring Diagram (10 of 22)

GFDW85689

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation Wiring Diagram (11 of 22)

GFDW85690

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation Wiring Diagram (12 of 22)

GFDW85691

Courtesy of FORD MOTOR COMPANY

Fig 13: Audio System/Navigation Wiring Diagram (13 of 22)

GFDW85692

Courtesy of FORD MOTOR COMPANY

Fig 14: Audio System/Navigation Wiring Diagram (14 of 22)

GFDW85693

Courtesy of FORD MOTOR COMPANY

Fig 15: Audio System/Navigation Wiring Diagram (15 of 22)

GFDW85694

Courtesy of FORD MOTOR COMPANY

Fig 16: Audio System/Navigation Wiring Diagram (16 of 22)

GFDW85695

Courtesy of FORD MOTOR COMPANY

Fig 17: Audio System/Navigation Wiring Diagram (17 of 22)

GFDW85696

Courtesy of FORD MOTOR COMPANY

Fig 18: Audio System/Navigation Wiring Diagram (18 of 22)

GFDW85697

Courtesy of FORD MOTOR COMPANY

Fig 19: Audio System/Navigation Wiring Diagram (19 of 22)

GFDW85698

Courtesy of FORD MOTOR COMPANY

Fig 20: Audio System/Navigation Wiring Diagram (20 of 22)

GFDW85699

Courtesy of FORD MOTOR COMPANY

Fig 21: Audio System/Navigation Wiring Diagram (21 of 22)

GFDW85700

Courtesy of FORD MOTOR COMPANY

Fig 22: Audio System/Navigation Wiring Diagram (22 of 22)

GFDW85701

Courtesy of FORD MOTOR COMPANY
