Side Air Bag Module, Driver

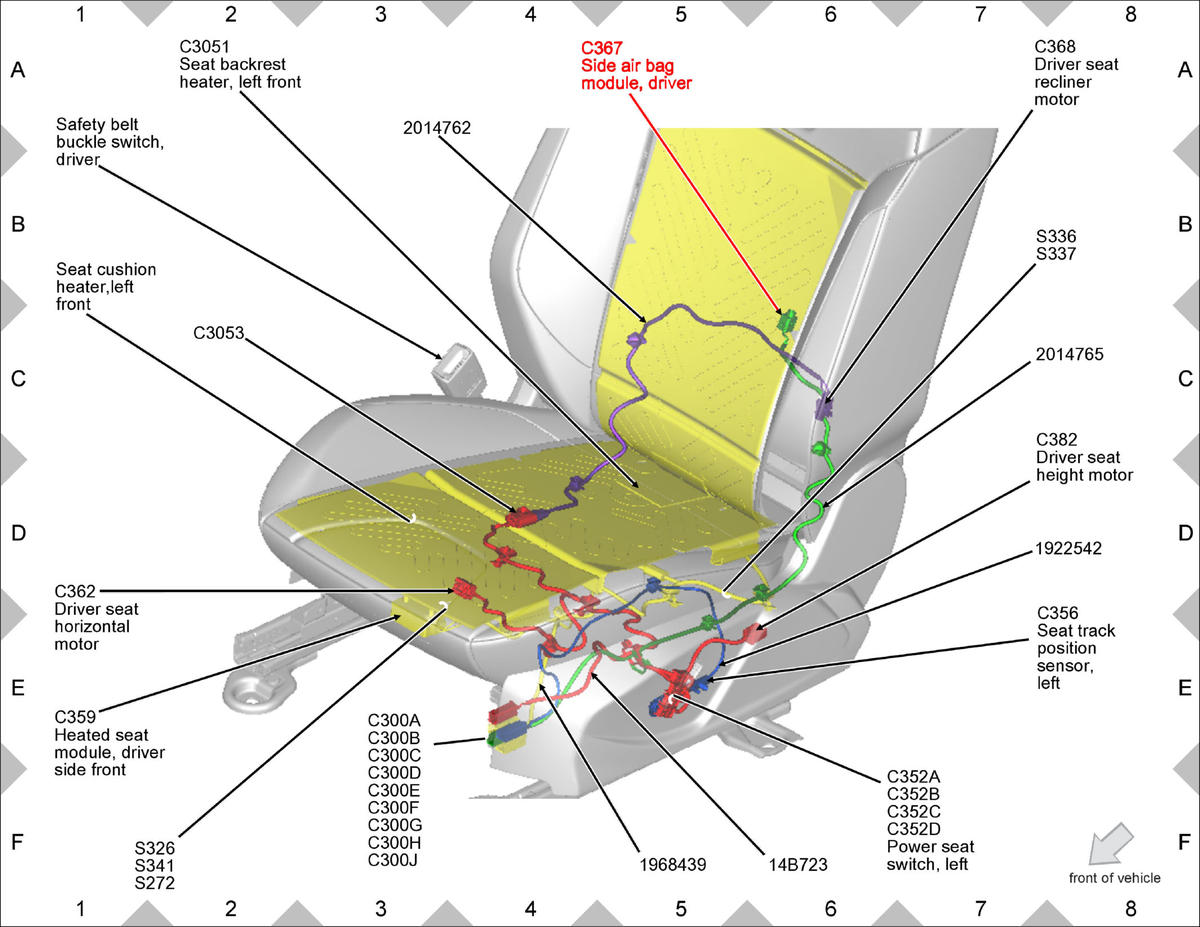

Fig 1: Side Air Bag Module, Driver Components Location

GFDW86139

Courtesy of FORD MOTOR COMPANY
