In-Vehicle Temperature/Humidity Sensor

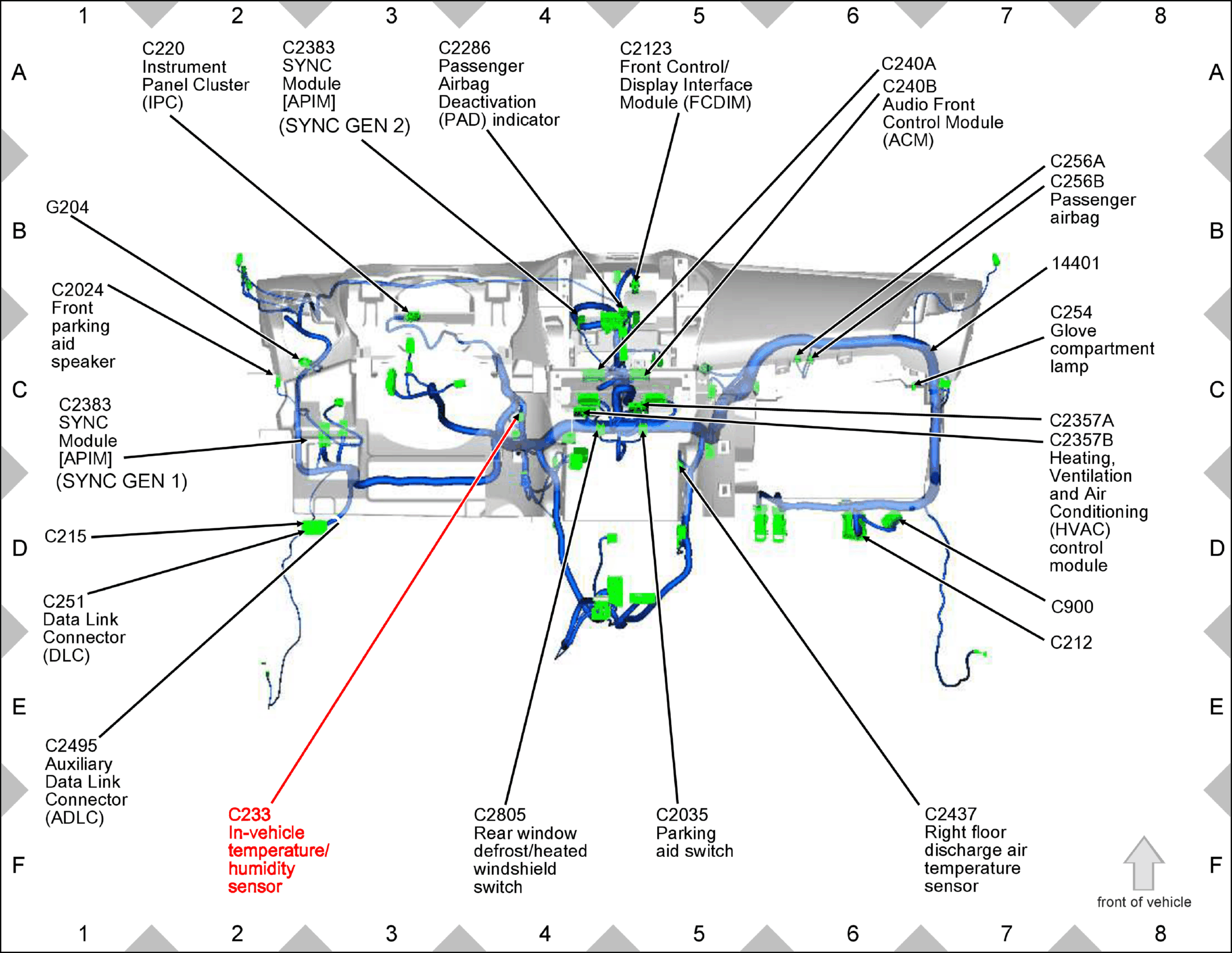

Fig 1: In-Vehicle Temperature/Humidity Sensor Components Location

GFDW64279

Courtesy of FORD MOTOR COMPANY
