Heated Seat Module, Driver Side Front

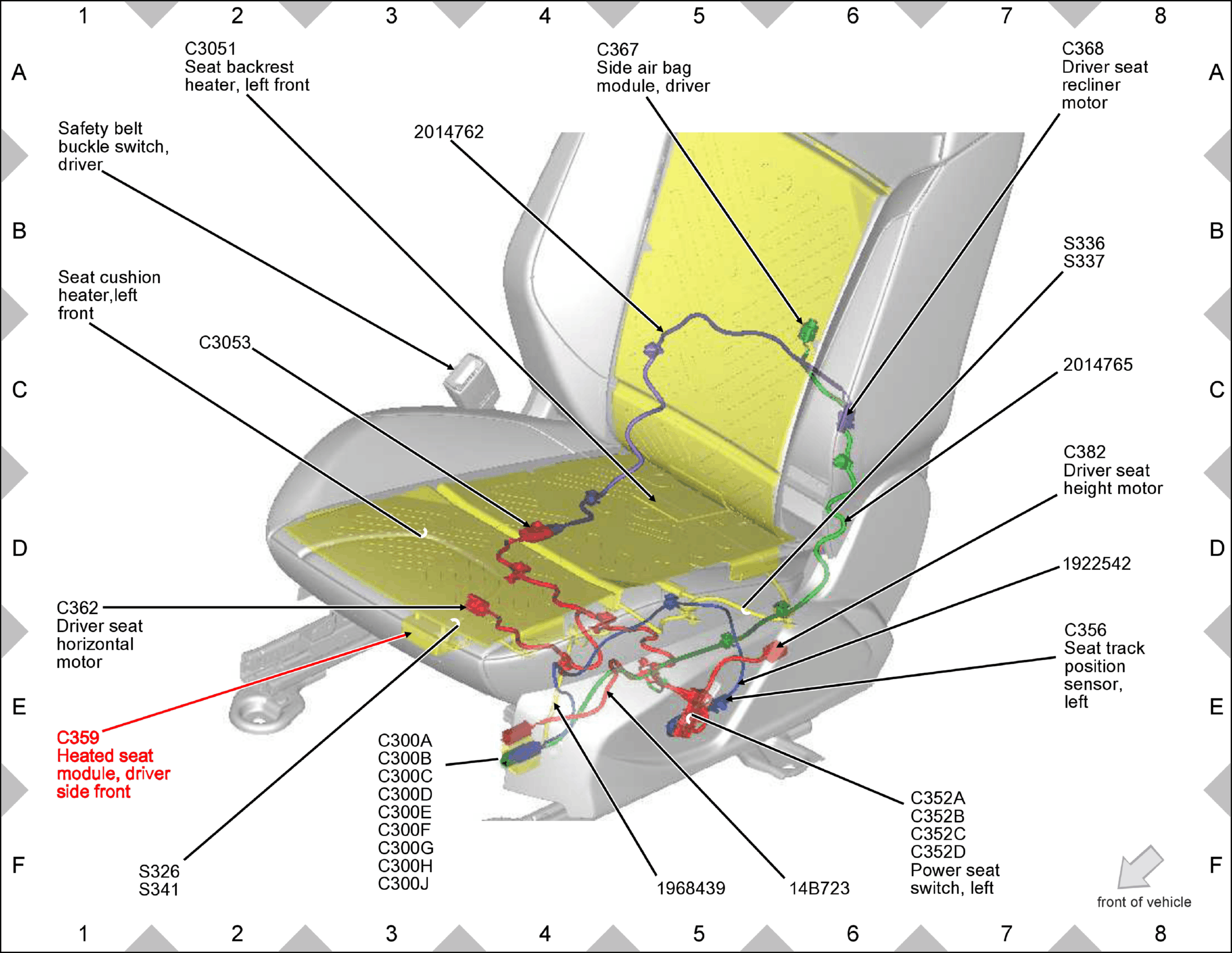

Fig 1: Heated Seat Module, Driver Side Front Components Location

GFDW64259

Courtesy of FORD MOTOR COMPANY
