Front Distance Sensing Module (FDSM)

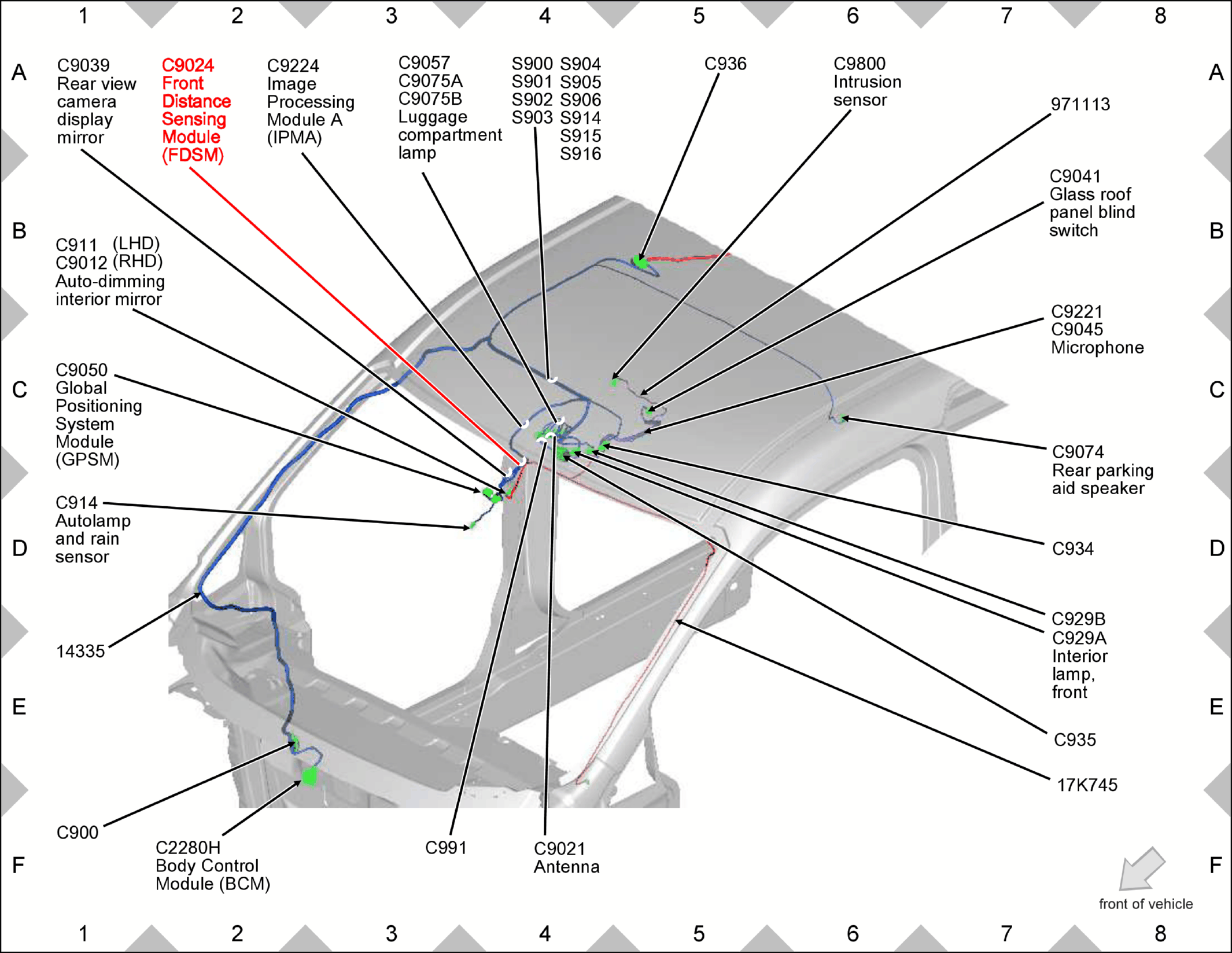

Fig 1: Front Distance Sensing Module (FDSM) Components Location

GFDW64191

Courtesy of FORD MOTOR COMPANY
