Engine Cooling Fan Module
Engine Cooling Fan Module

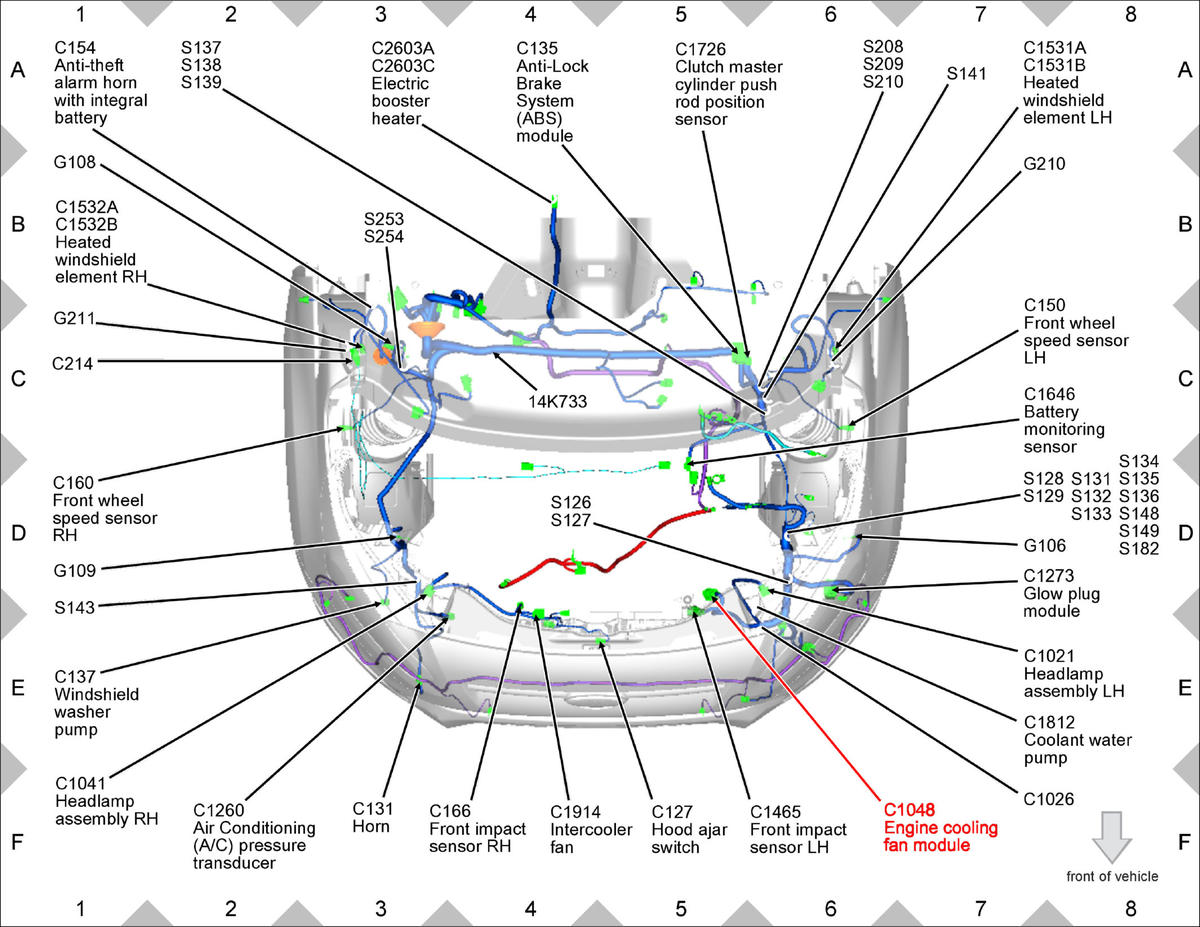

Fig 1: Engine Cooling Fan Module Components Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
