Driver Door Window Control Switch

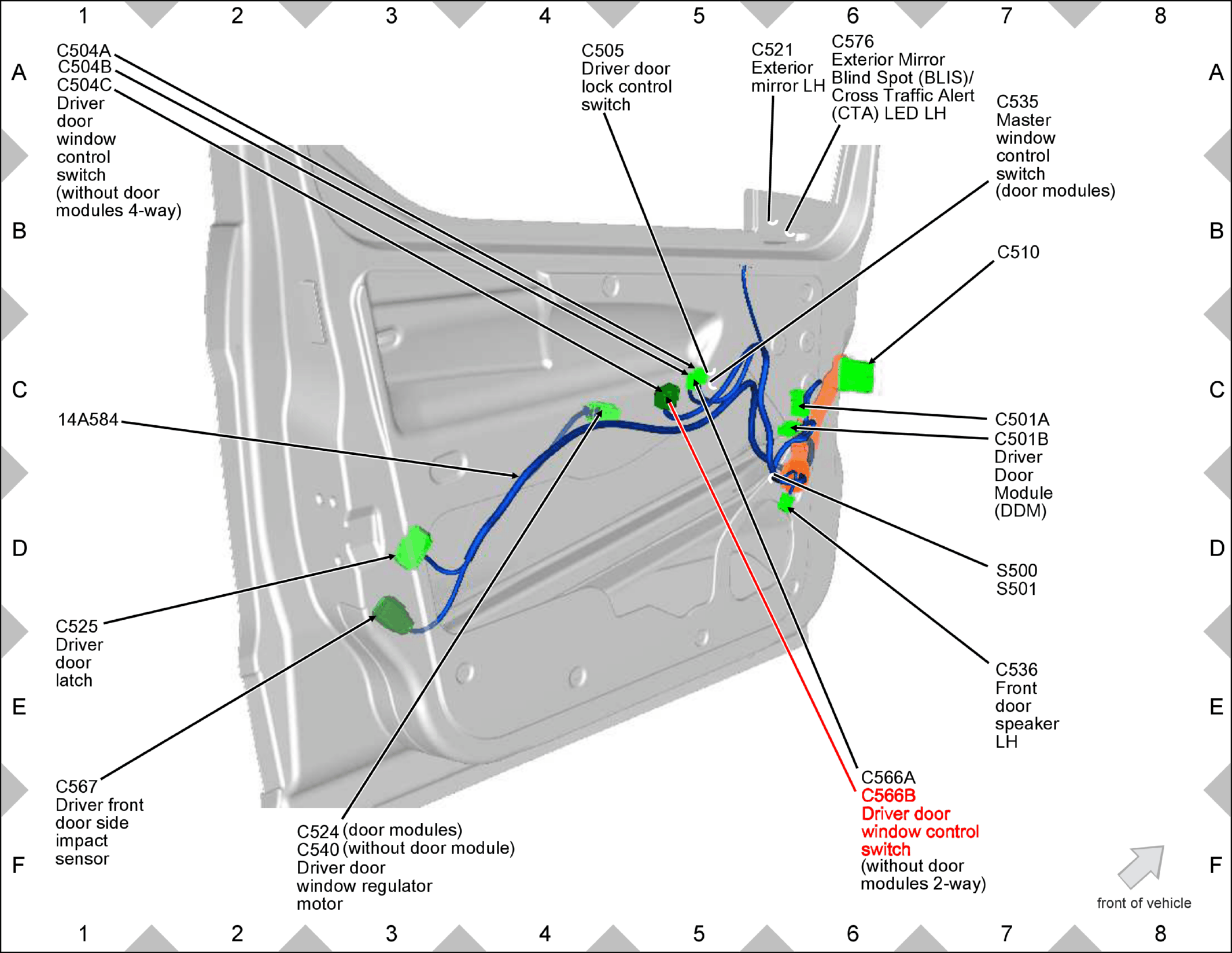

Fig 1: Driver Door Window Control Switch Components Location

GFDW64147

Courtesy of FORD MOTOR COMPANY
