Body Control Module (BCM)

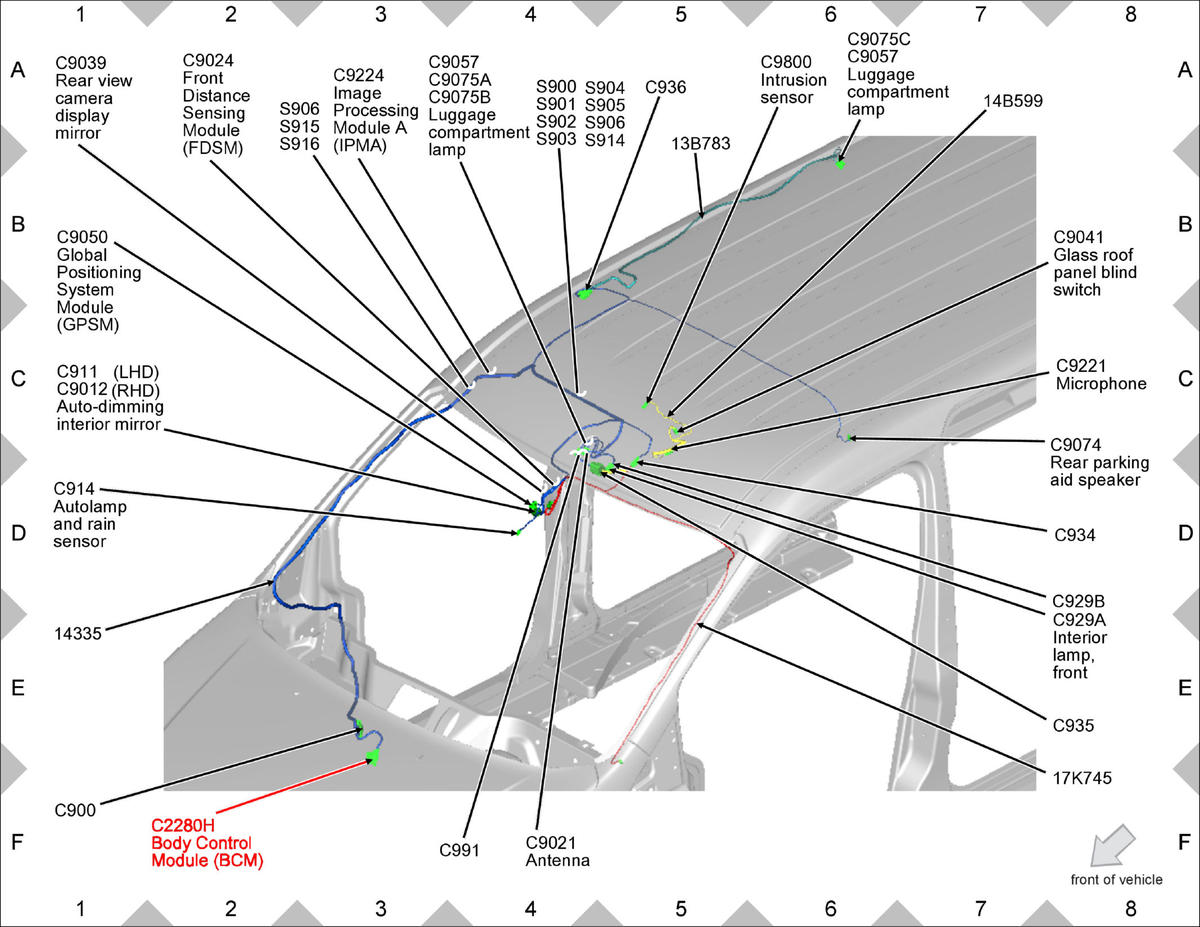

Fig 1: Body Control Module (BCM) Components Location

GFDW85971

Courtesy of FORD MOTOR COMPANY
