Audio Input Socket

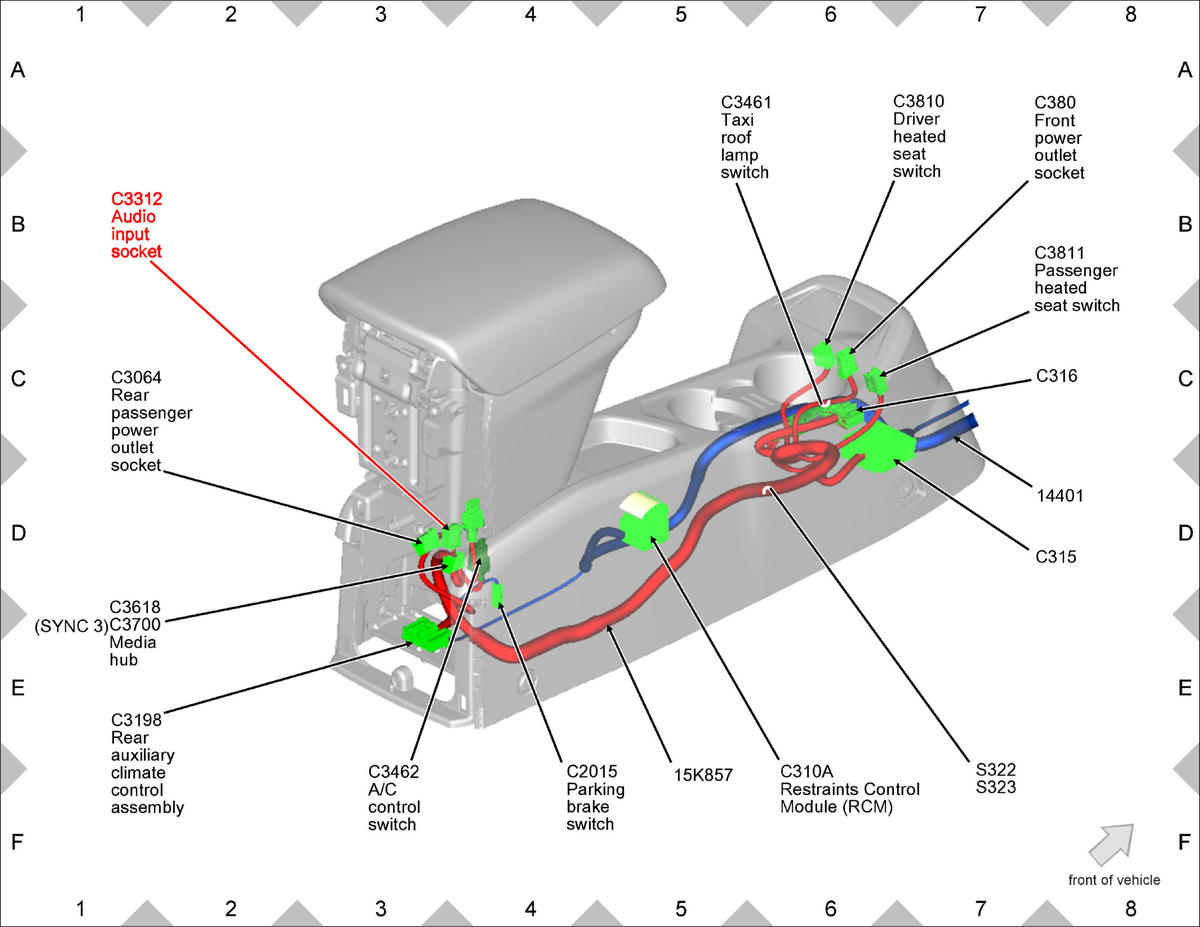

Fig 1: Audio Input Socket Components Location

GFDW85960

Courtesy of FORD MOTOR COMPANY
