Rear Climate Control Assembly: Removal

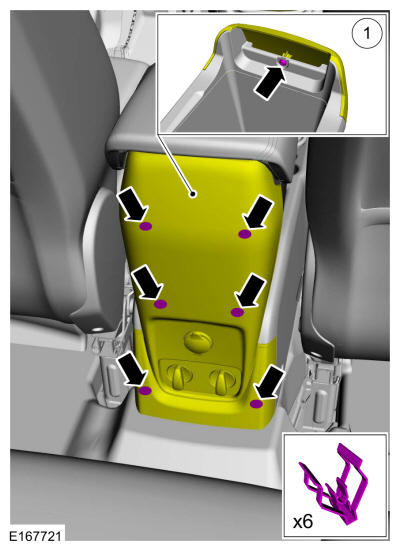

  1. Release the clips and remove the rear floor console finish panel.

    1. Remove the retainer.

    GFD215785Courtesy of FORD MOTOR COMPANY

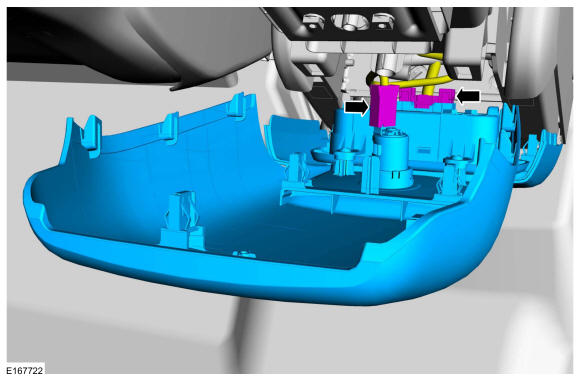

  2. Disconnect the electrical connectors.
    GFD215786Courtesy of FORD MOTOR COMPANY

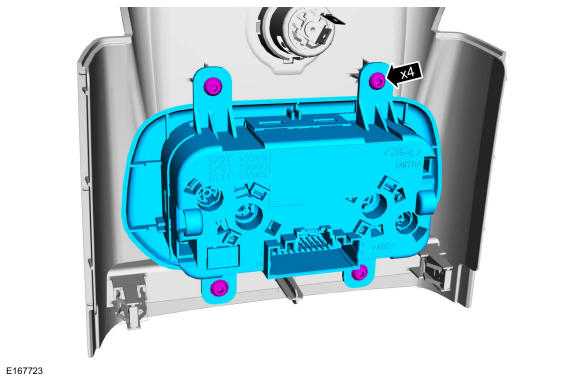

  3. Remove the retainers and the RHVAC control module.
GFD215787Courtesy of FORD MOTOR COMPANY
