Front Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

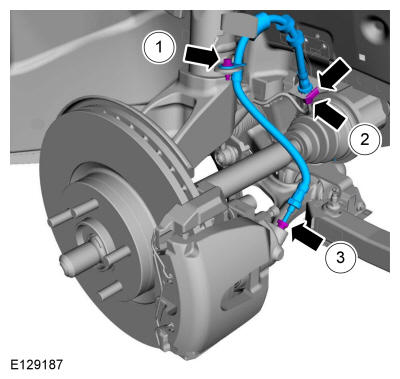

- 1.

  Remove the brake flexible hose bracket bolt.
- 2.

  Disconnect the brake tube fitting and remove the brake hose clip.
- 3.

  Loosen the brake hose fitting and remove the brake flexible hose.

Courtesy of FORD MOTOR COMPANY
