Front Brake Caliper: Installation

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

Apply the specified grease to the brake caliper anchor plate as shown.
Material: Multi-Purpose Grease (WSS-M12A4-A2)

GFD148309

Courtesy of FORD MOTOR COMPANY

3.

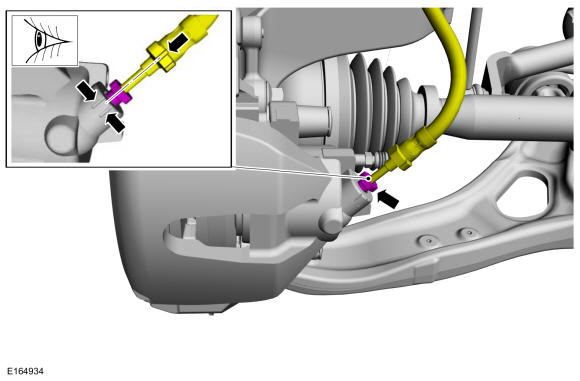

NOTE: Make sure that the brake hose is not twisted and is correctly located.

Tighten the brake flexible hose fitting.

Torque: 159 lb.in (18 Nm)

GFD148310

Courtesy of FORD MOTOR COMPANY

4.

Bleed the brake system. Refer to: Brake System Pressure Bleeding .
