Receiver Drier: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

  1. 2.

    With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 3.

    If equipped.
    • Remove the retainers and the shield plate.

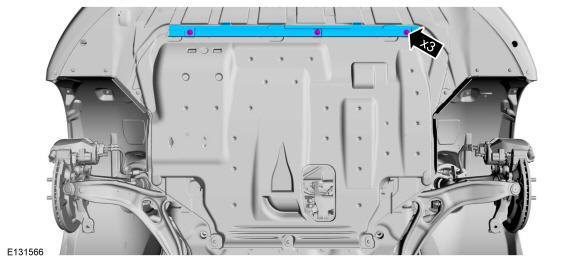

GFD148626Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the retainers and the engine undershield.

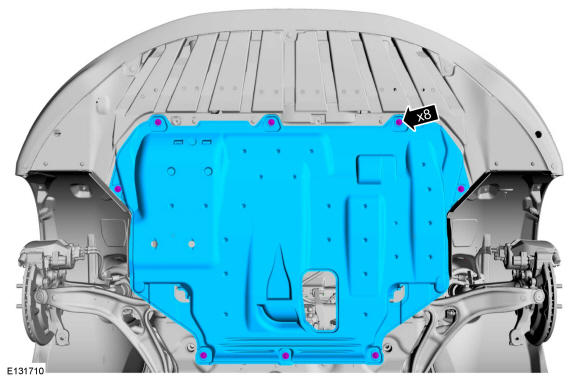

GFD148546Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the retainers, the bolts and the radiator undershield.

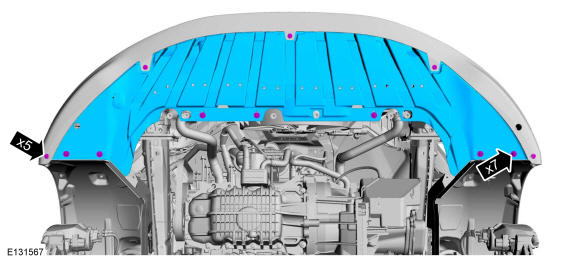

GFD149403Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the bolts and position aside the front lower crossmember.

    Torque: 18 lb.ft (25 Nm)

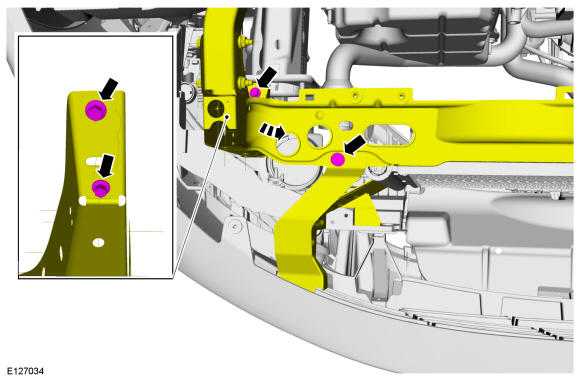

GFD150542Courtesy of FORD MOTOR COMPANY

  1. 7.

    Remove the receiver drier plug and the receiver drier element.

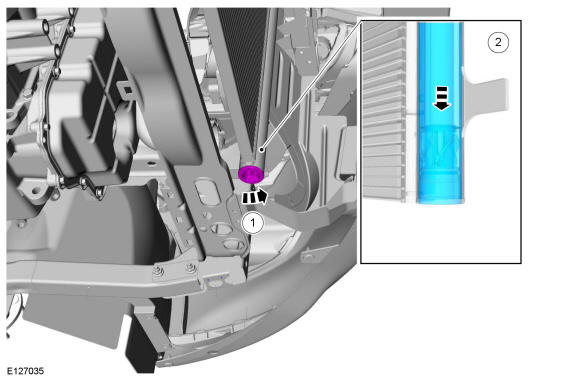

GFD150543Courtesy of FORD MOTOR COMPANY
