Climate Control Housing: Installation

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

Coat the O-rings on the refrigerant lines.
Material: Motorcraft ® PAG Refrigerant Compressor Oil / YN-12-D (WSH-M1C231-B)

3.

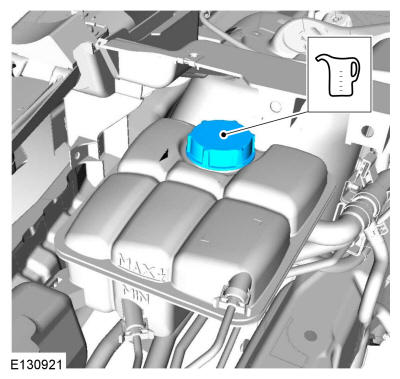

NOTE: Make sure that fluid level is to the MAX mark.

Fill the degas bottle with the recommended coolant mixture and fill level.

Material: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

GFD150600

Courtesy of FORD MOTOR COMPANY
