Component Testing: Relays
WARNING:
This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

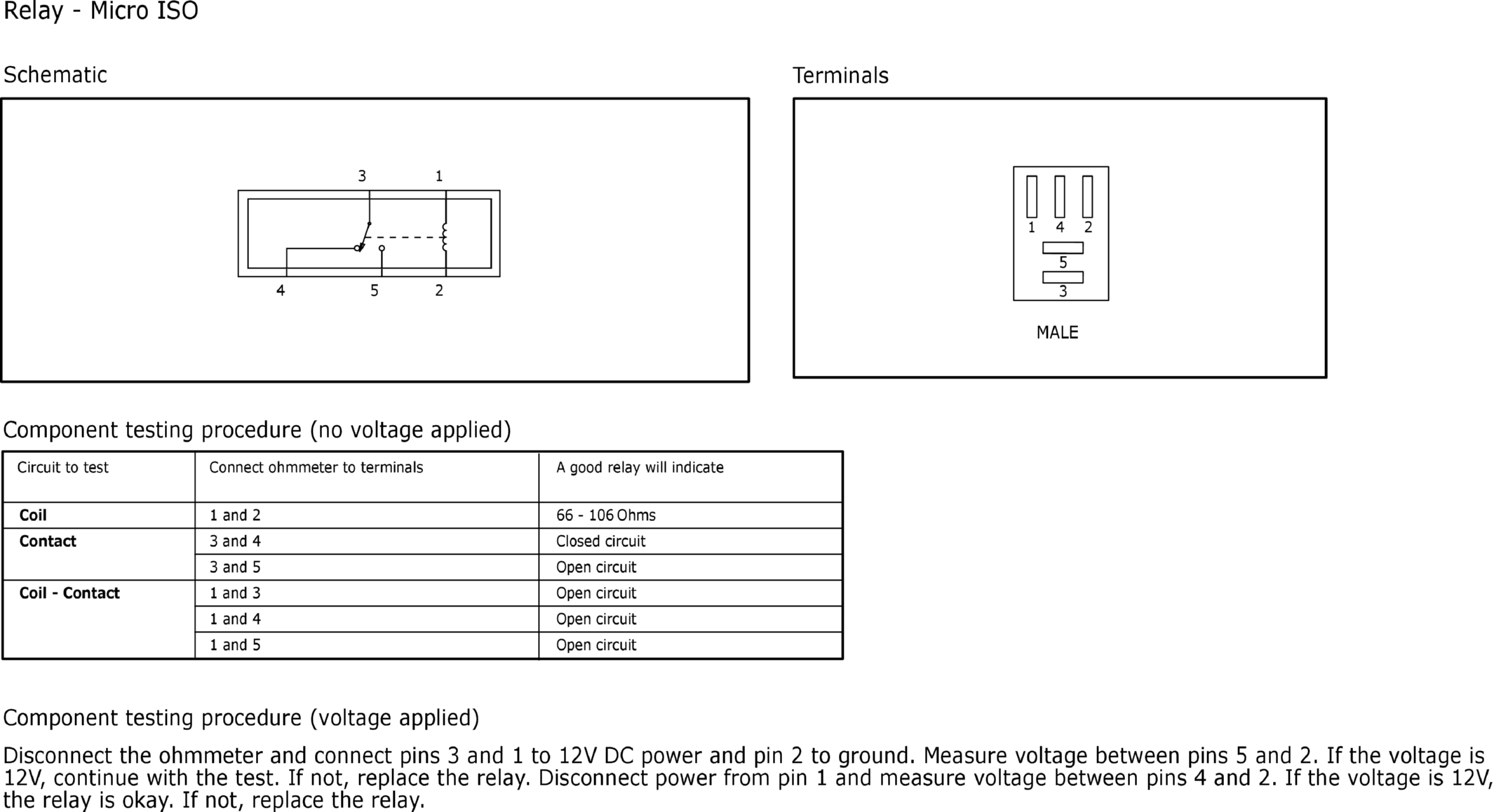

Fig 1: Relay - Micro ISO
Courtesy of FORD MOTOR COMPANY

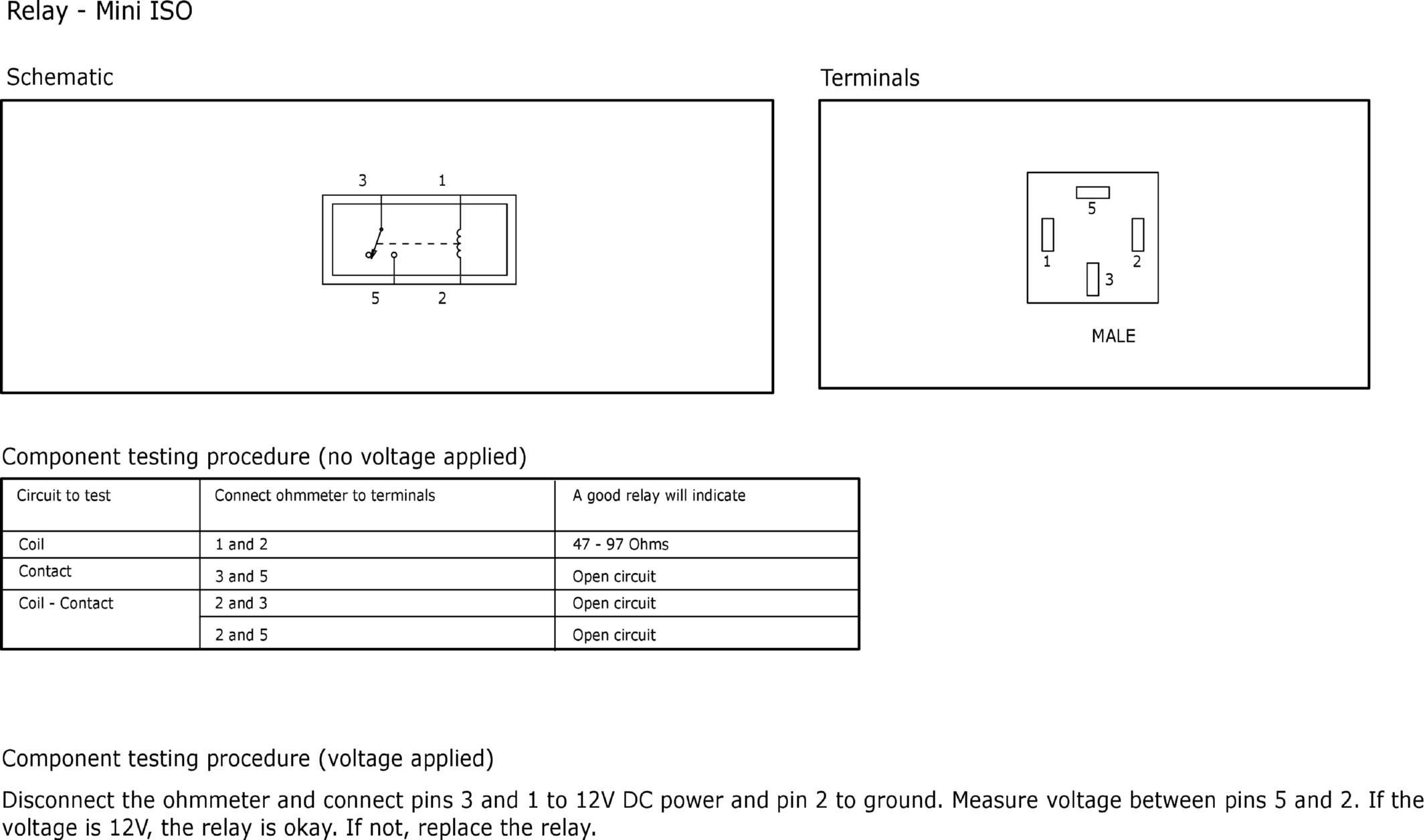

Fig 2: Relay - Mini ISO
Courtesy of FORD MOTOR COMPANY

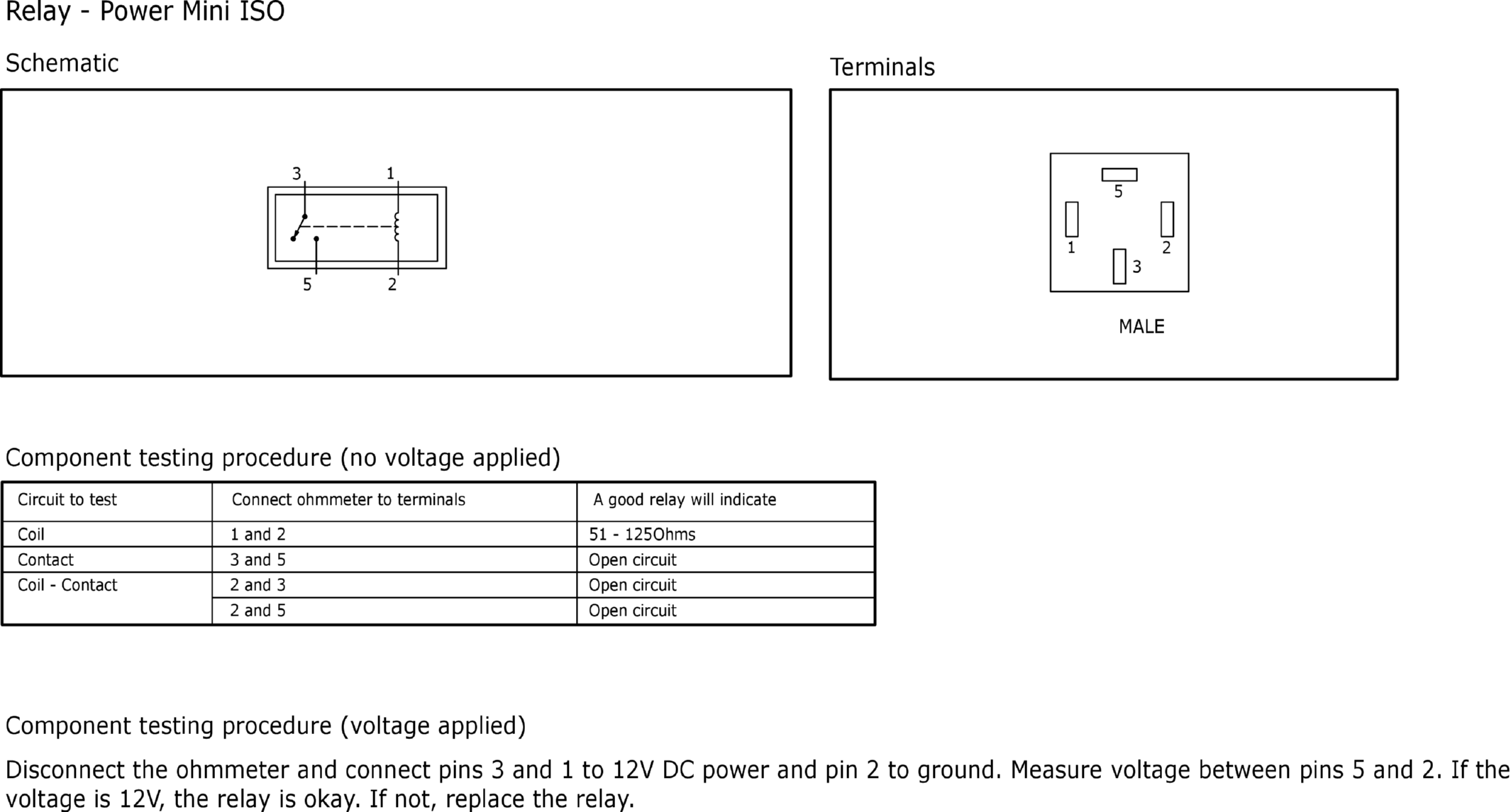

Fig 3: Relay - Power Mini ISO
Courtesy of FORD MOTOR COMPANY
