Interior Lamps

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

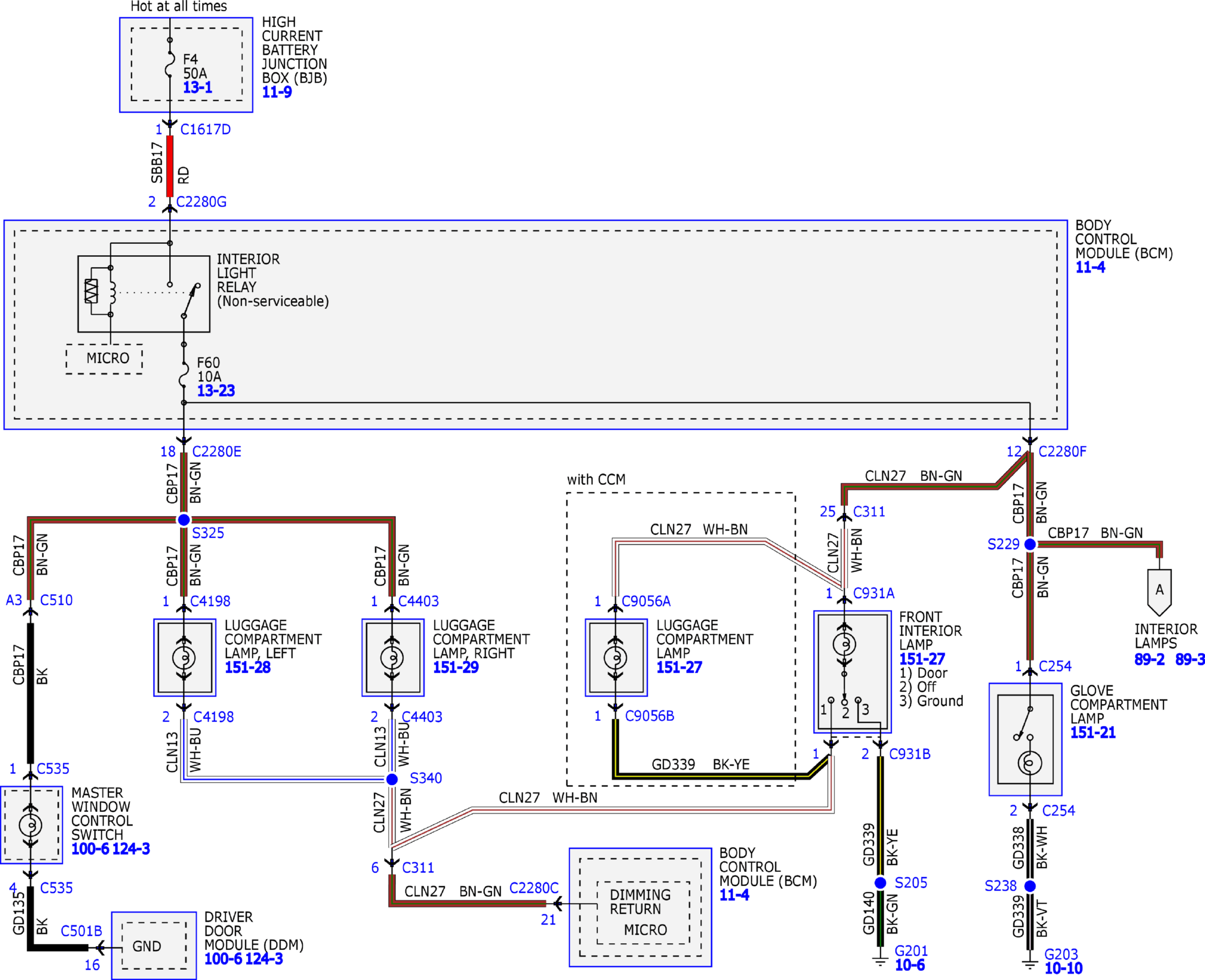

Fig 1: Interior Lamps Wiring Diagram (1 of 6)

Courtesy of FORD MOTOR COMPANY

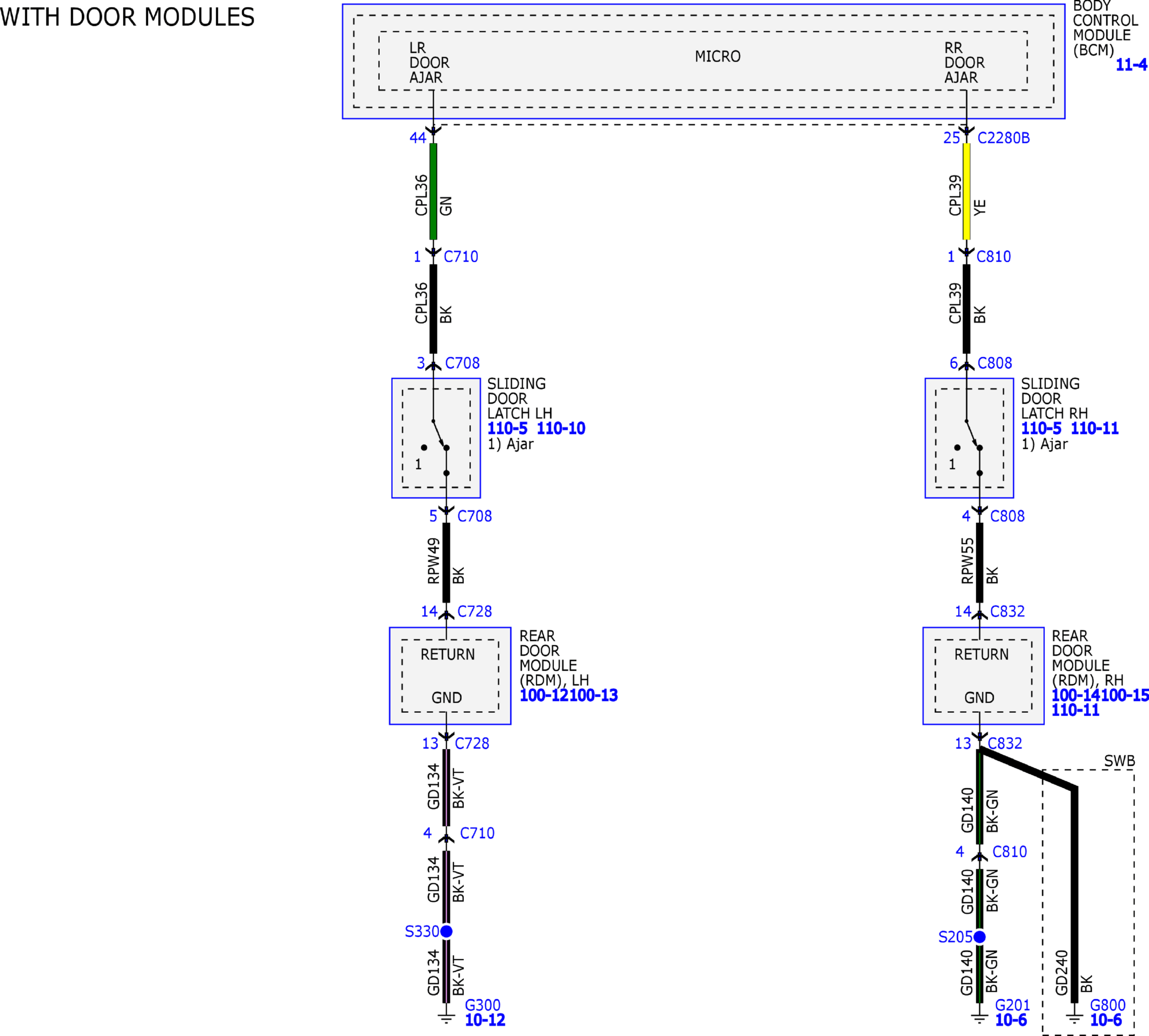

Fig 2: Interior Lamps Wiring Diagram (2 of 6)

Courtesy of FORD MOTOR COMPANY

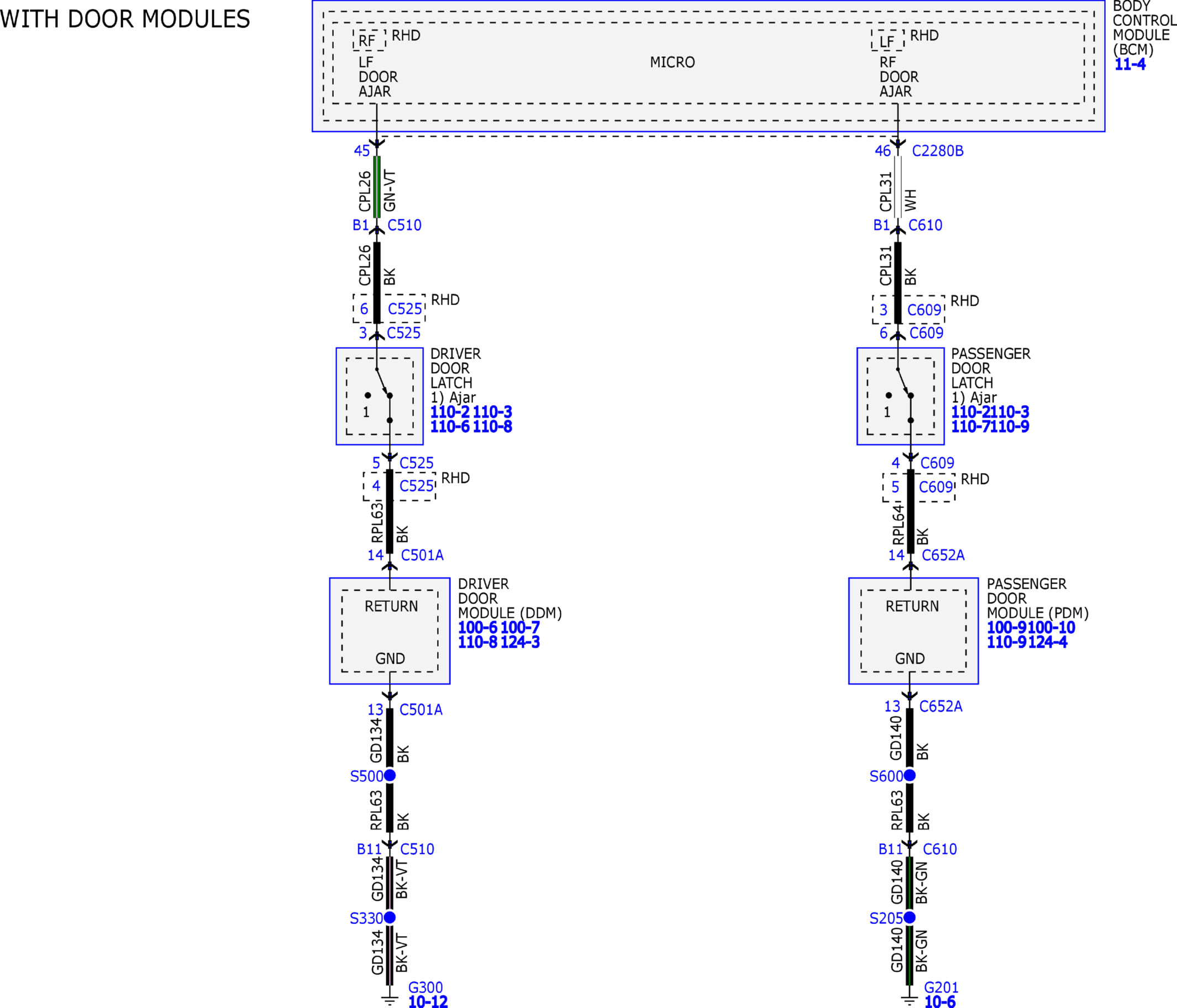

Fig 3: Interior Lamps Wiring Diagram (3 of 6)

Courtesy of FORD MOTOR COMPANY

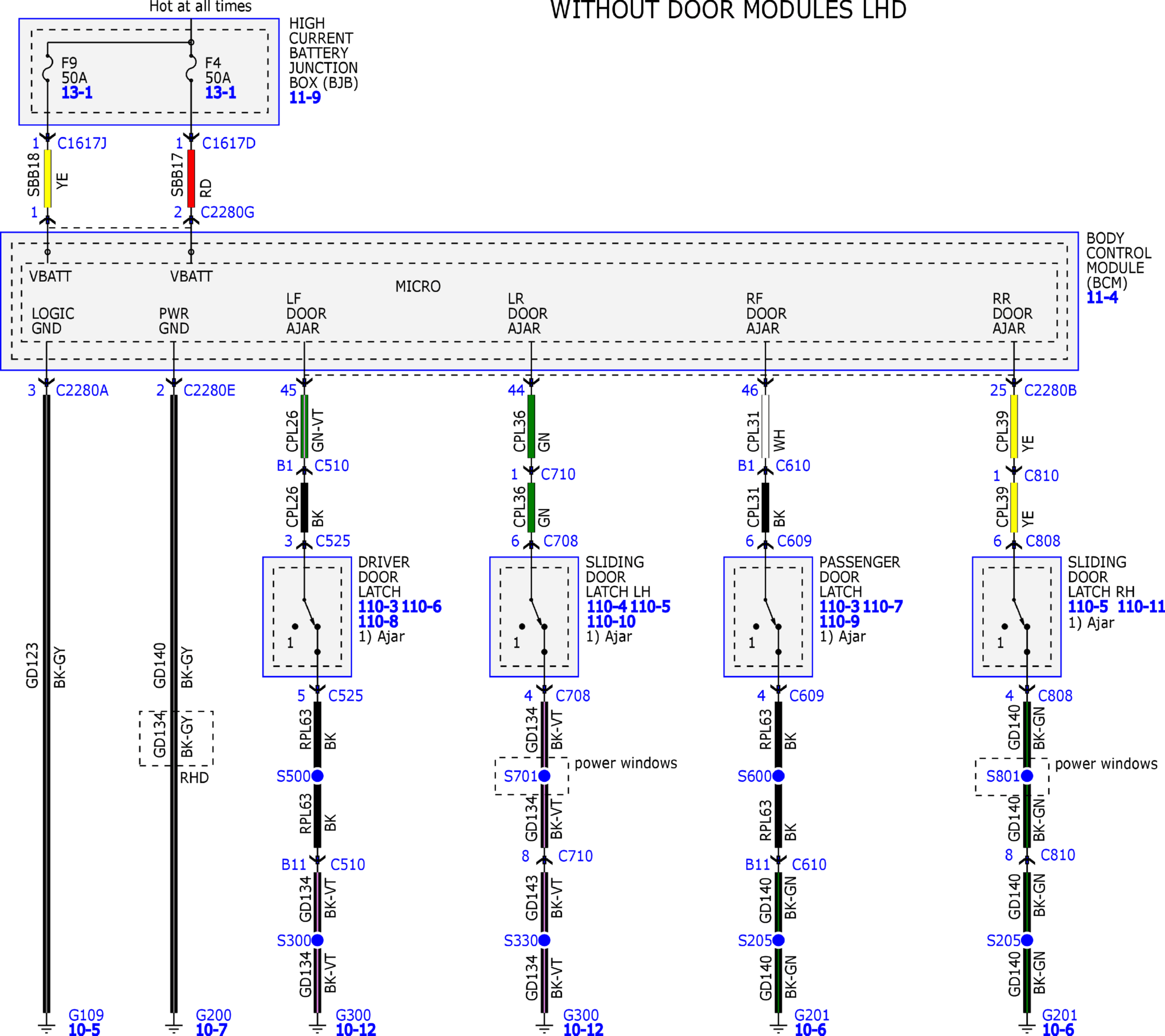

Fig 4: Interior Lamps Wiring Diagram (4 of 6)

Courtesy of FORD MOTOR COMPANY

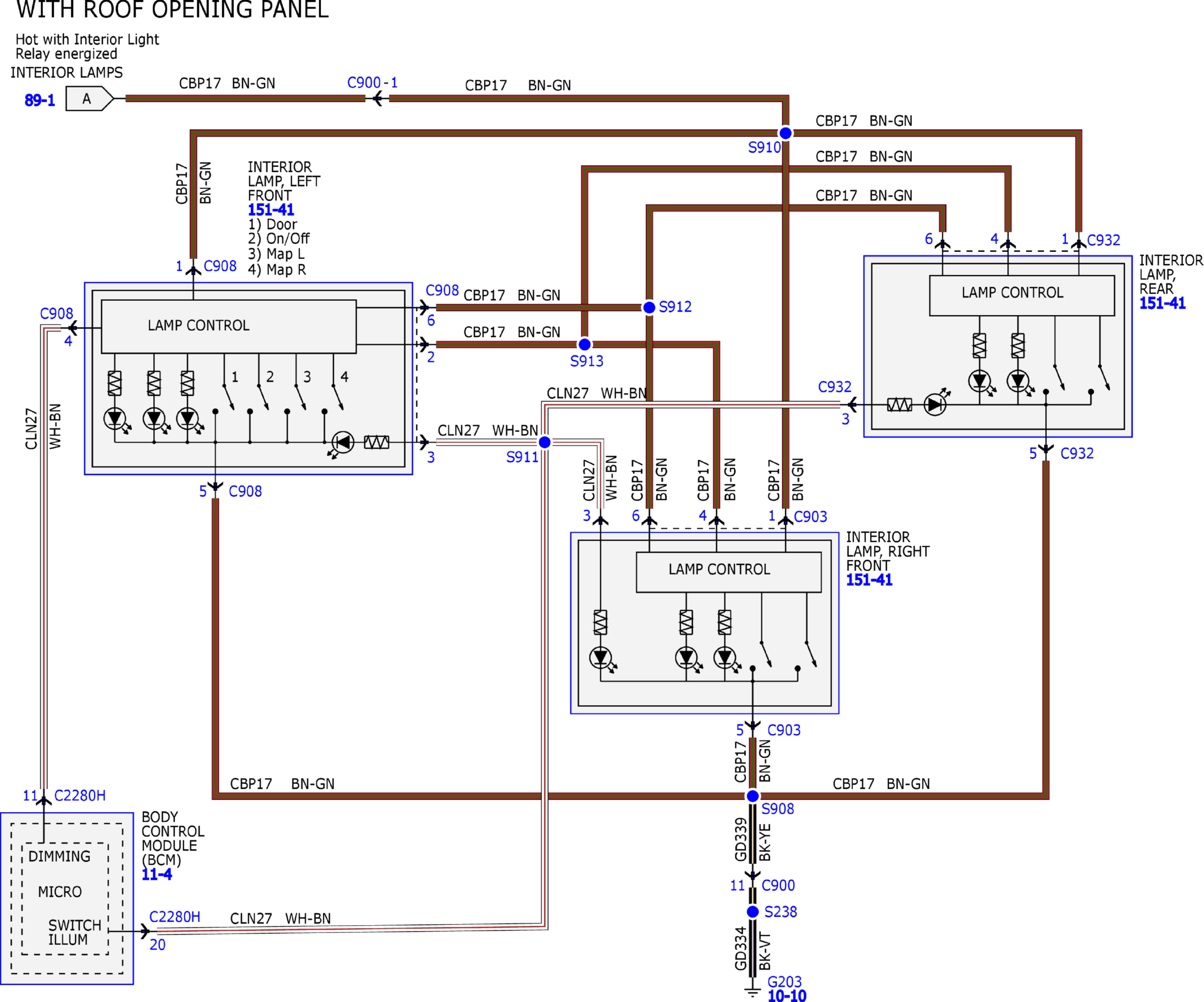

Fig 5: Interior Lamps Wiring Diagram (5 of 6)

Courtesy of FORD MOTOR COMPANY

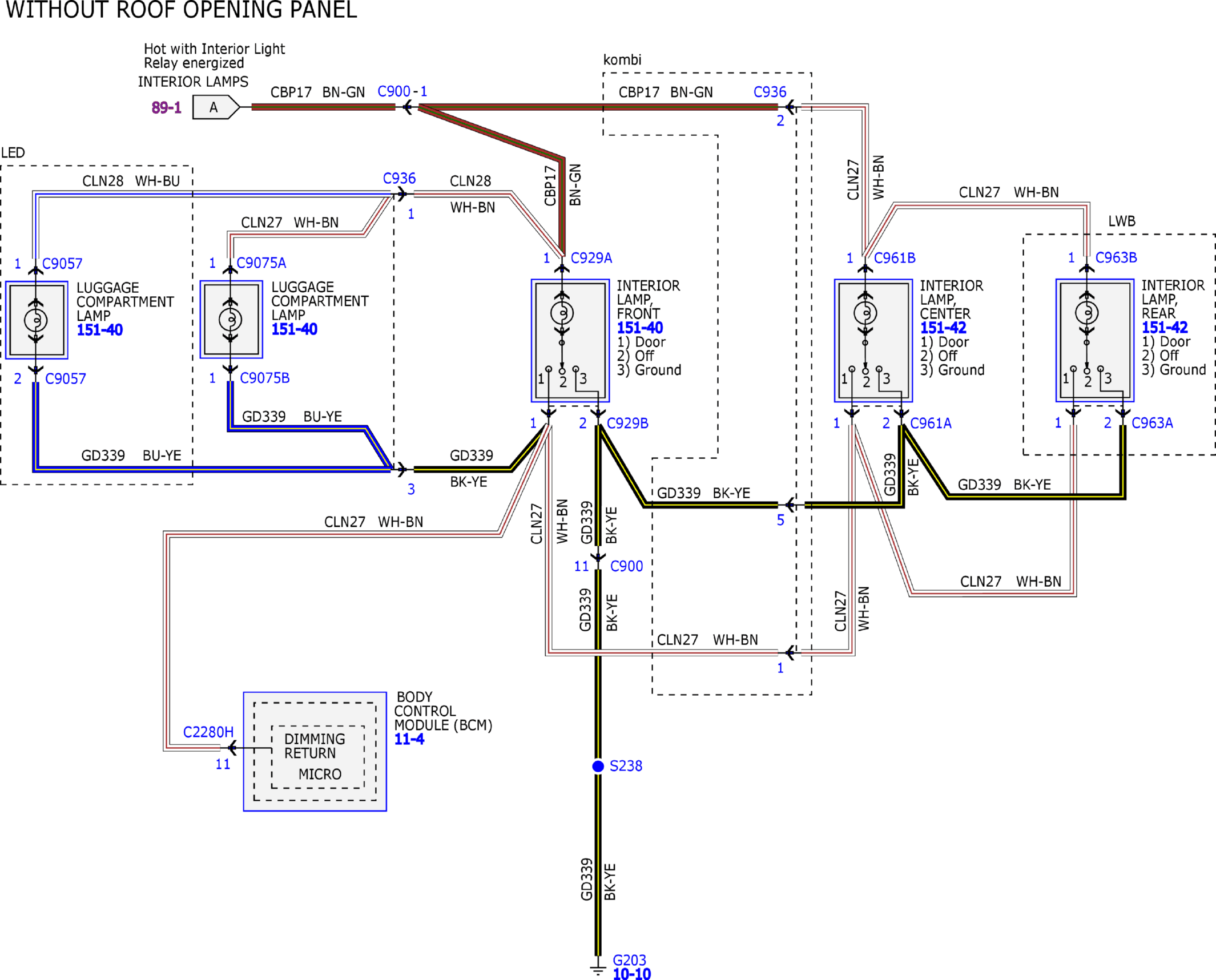

Fig 6: Interior Lamps Wiring Diagram (6 of 6)

Courtesy of FORD MOTOR COMPANY
