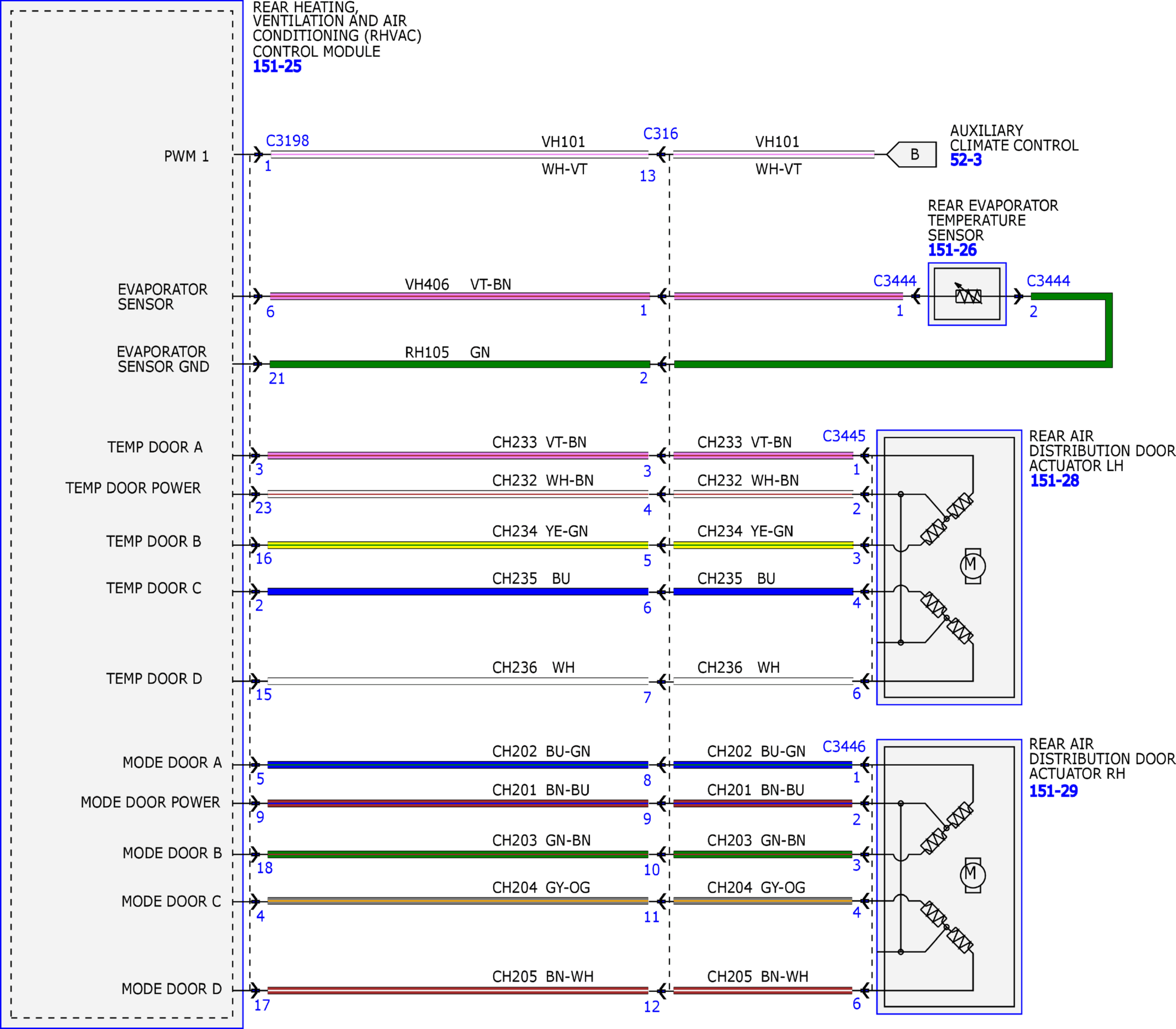

Fig 1: Auxiliary Climate Control Wiring Diagram (1 of 6)
Courtesy of FORD MOTOR COMPANY

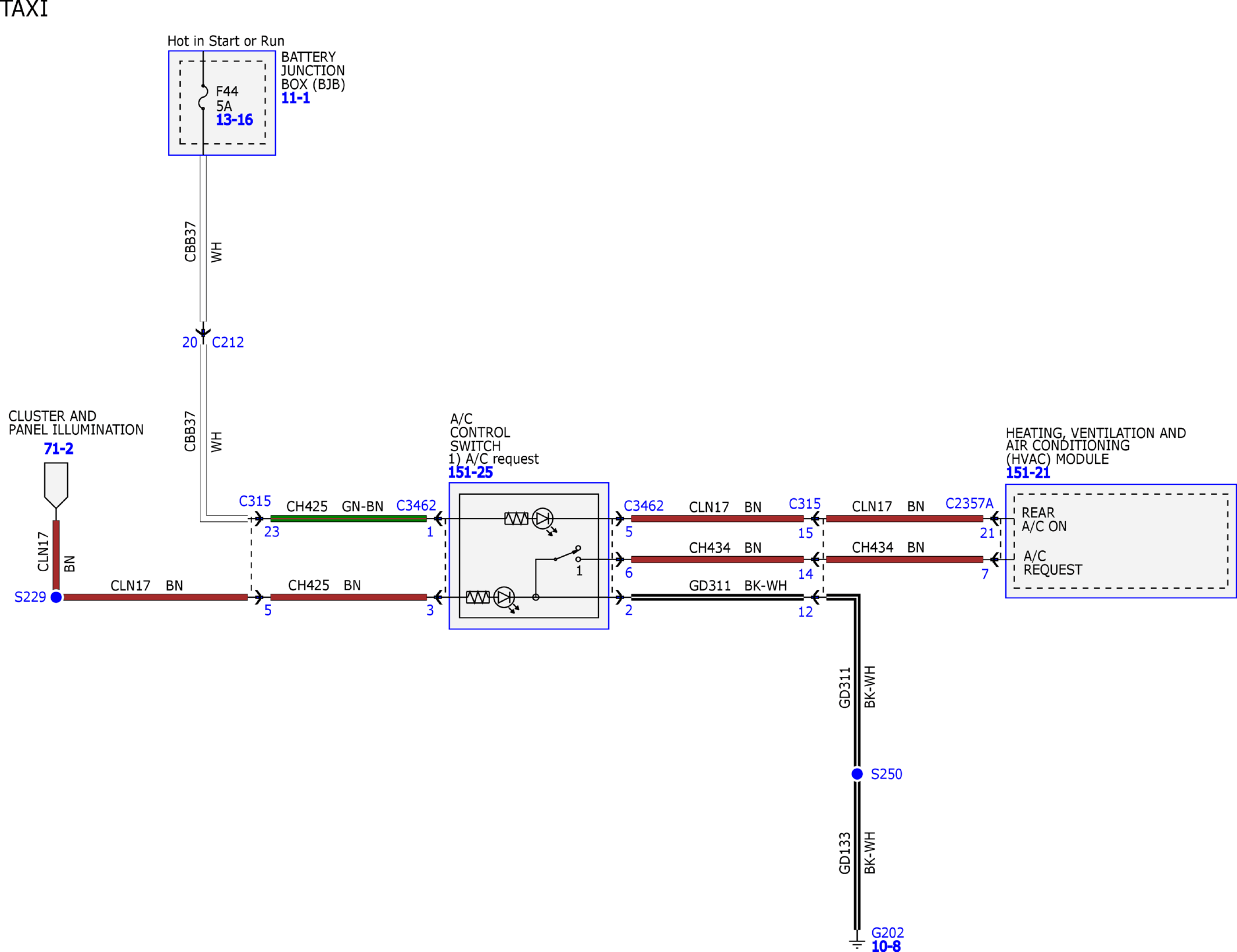

Fig 2: Auxiliary Climate Control Wiring Diagram (2 of 6)
Courtesy of FORD MOTOR COMPANY

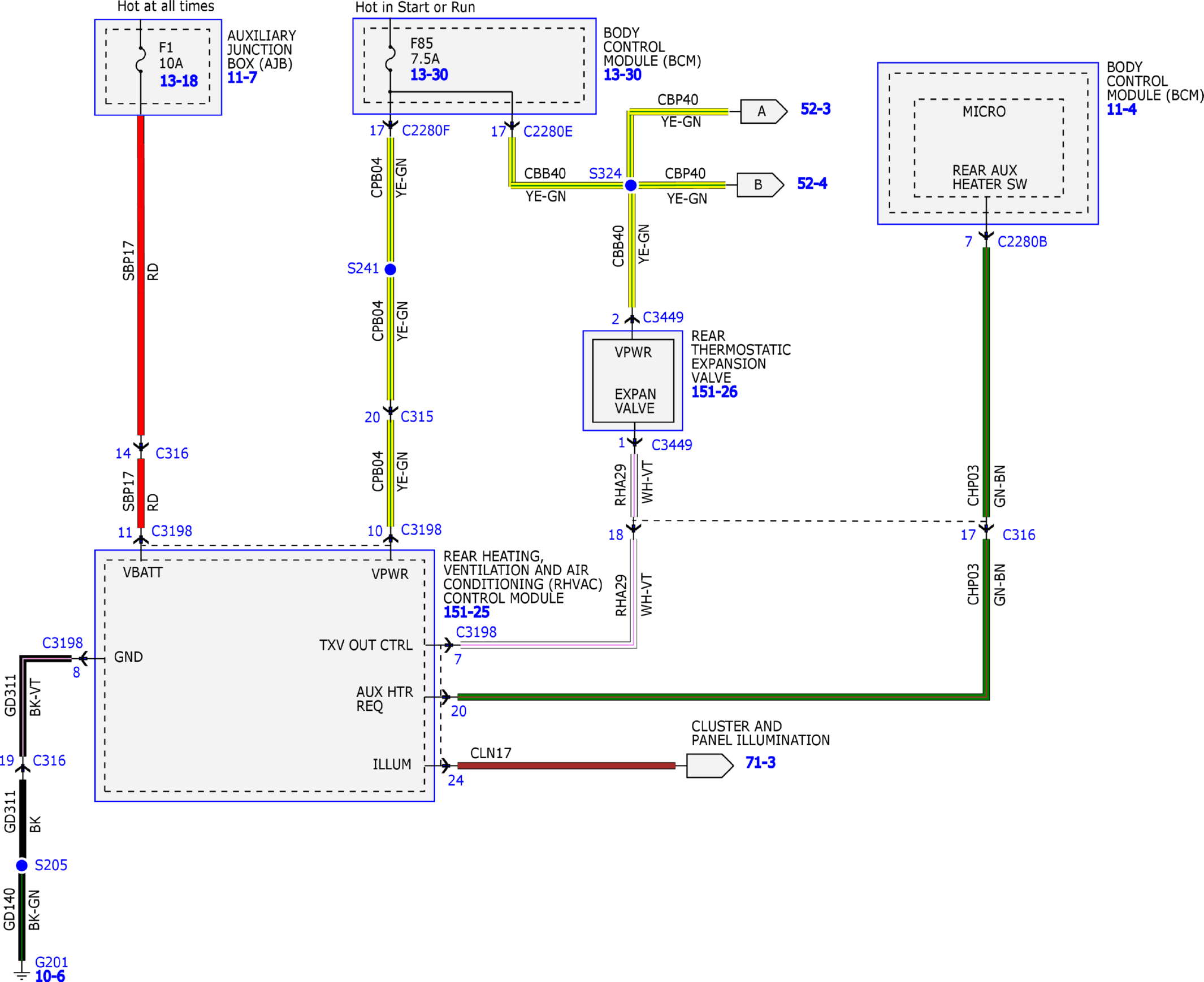

Fig 3: Auxiliary Climate Control Wiring Diagram (3 of 6)
Courtesy of FORD MOTOR COMPANY

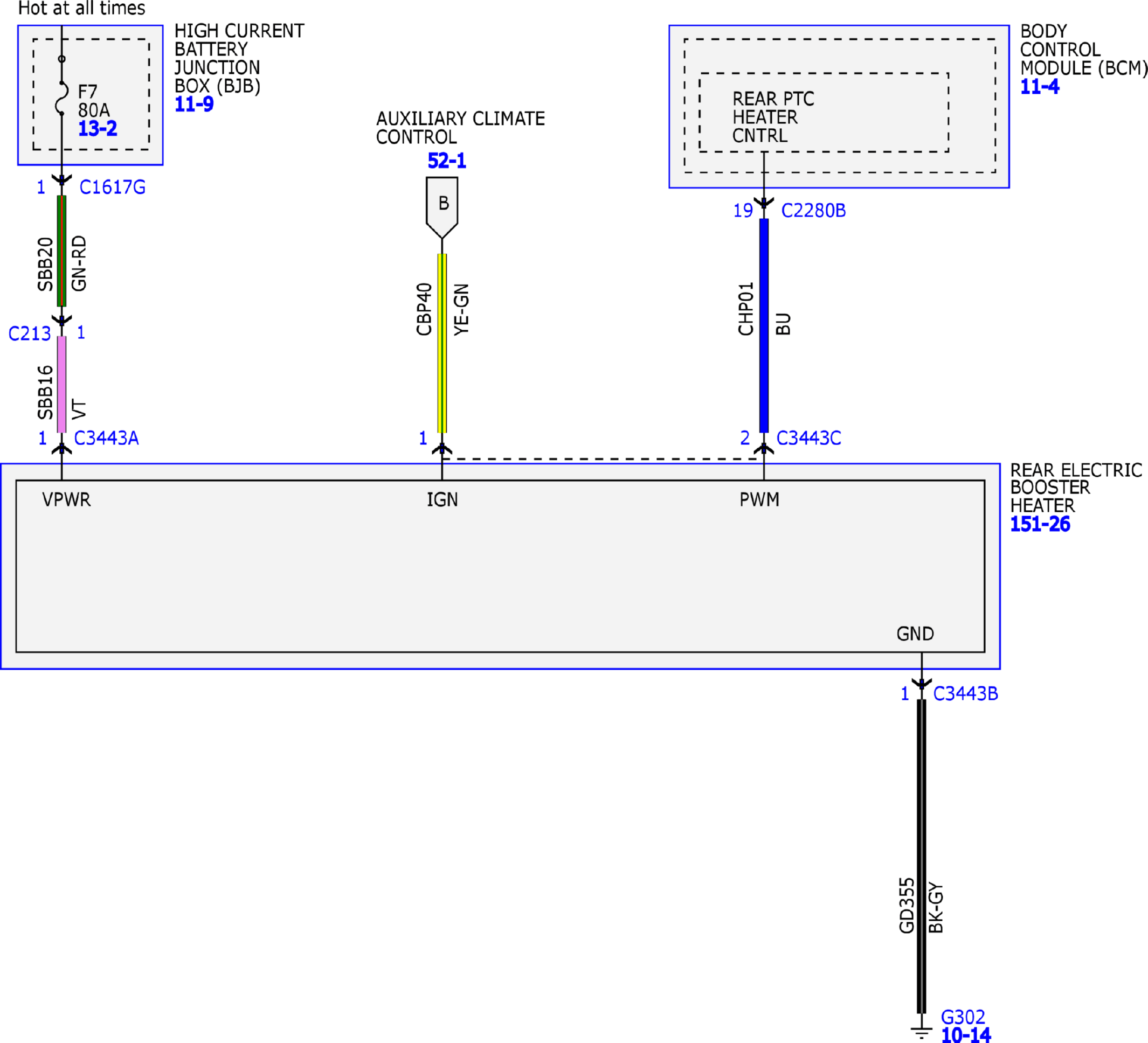

Fig 4: Auxiliary Climate Control Wiring Diagram (4 of 6)
Courtesy of FORD MOTOR COMPANY

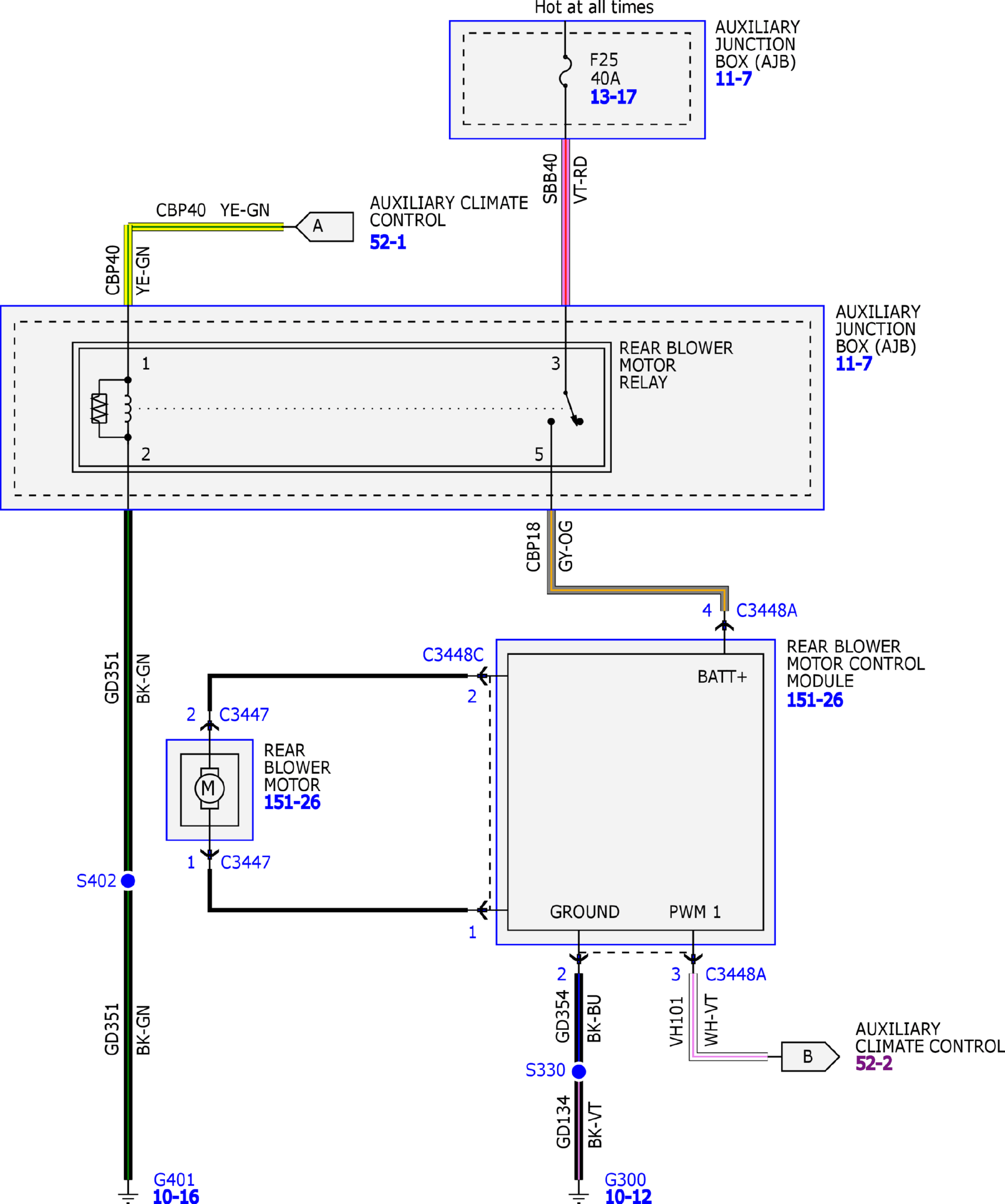

Fig 5: Auxiliary Climate Control Wiring Diagram (5 of 6)
