Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the floor console. Refer to: Floor Console - Vehicles With: Single Passenger Seat .
  2. Remove the selector lever boot.

    • Disconnect the electrical connector.

    GFD215519Courtesy of FORD MOTOR COMPANY
  3. Remove the screws and push pins, release the clips and remove the trim panel.
    GFD215522Courtesy of FORD MOTOR COMPANY
  4. Position aside the weather strip and remove the trim panel.
    GFD214897Courtesy of FORD MOTOR COMPANY

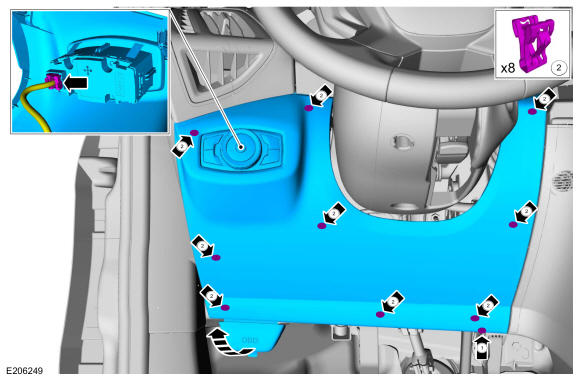

    1. Remove the bolt.

      Torque: 22 lb.in (2.5 Nm)

    2. Release the clips disconnect the electrical connector and remove the lower steering column trim panel.
    GFD216572Courtesy of FORD MOTOR COMPANY
  6. Remove the screws and push pins, release the clips and remove the trim panel.
    GFD215523Courtesy of FORD MOTOR COMPANY

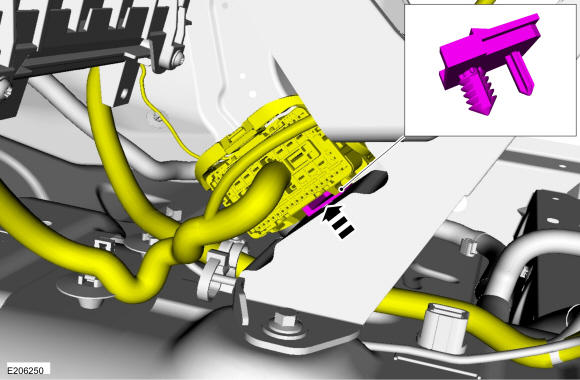

  7. Release the harness retainer and position aside the harness.
    GFD216573Courtesy of FORD MOTOR COMPANY
  8. Remove the push pins and bolts.

    Torque: 80 lb.in (9 Nm)

    GFD215525Courtesy of FORD MOTOR COMPANY
    1. Remove the selector lever nuts.

      Torque: 89 lb.in (10 Nm)

    2. Remove the selector lever bolts.

      Torque: 80 lb.in (9 Nm)

    3. Remove the selector lever cable retainer bolt.

      Torque: 62 lb.in (7 Nm)

    4. Disconnect the electrical connector and remove the selector lever assembly.
    GFD216555Courtesy of FORD MOTOR COMPANY

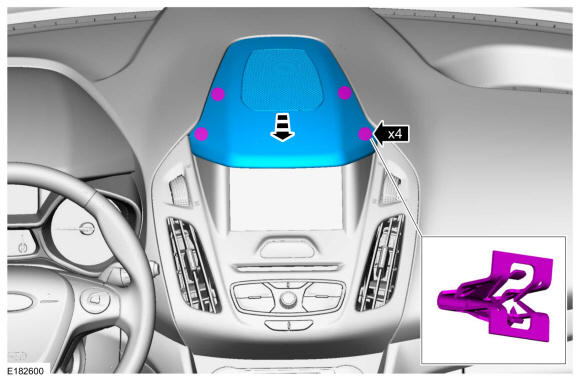

  10. Release the clips and remove the trim panel.
    GFD215932Courtesy of FORD MOTOR COMPANY

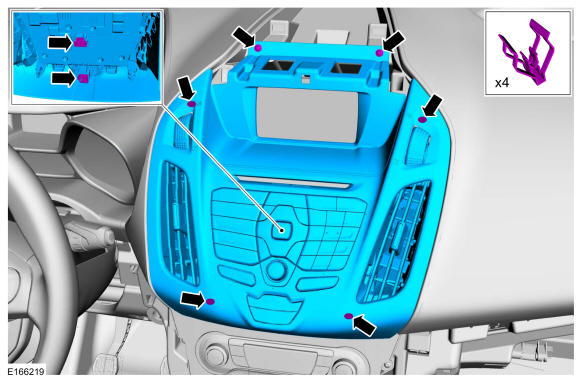

  11. Release the clips and remove the FCIM.

    • Disconnect the electrical connectors.

    GFD215896Courtesy of FORD MOTOR COMPANY

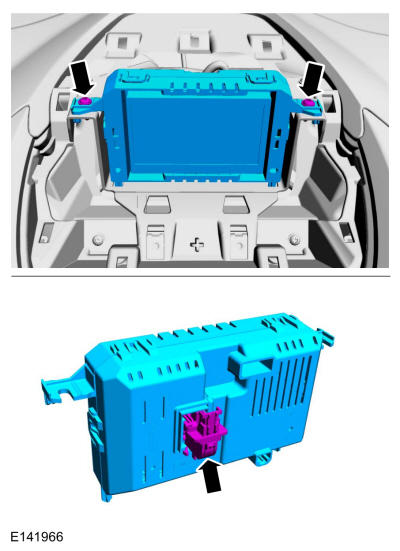

  12. NOTE: If equipped.
    NOTE: Non-touch screen display shown.

    Remove the bolts and the FCDIM.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD215894Courtesy of FORD MOTOR COMPANY

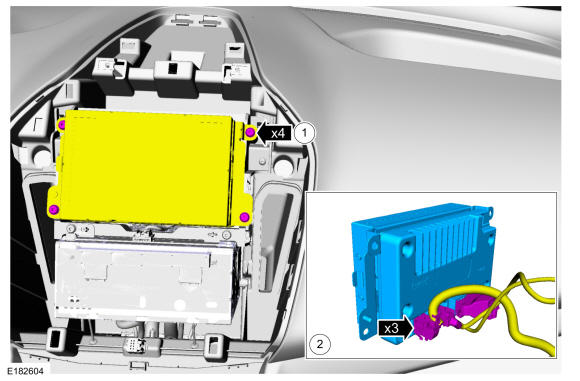

  13. NOTE: If equipped.
    NOTE: Touch screen display shown.

    1. Remove the bolts and the FDIM.

      Torque: 22 lb.in (2.5 Nm)

    2. Disconnect the electrical connectors.

    GFD216574Courtesy of FORD MOTOR COMPANY

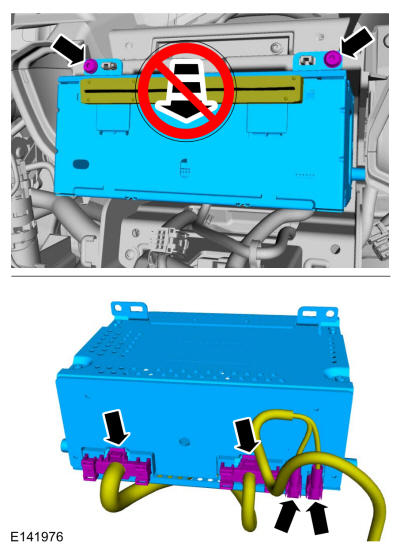

  14. Remove the bolts and the ACM.

    • Disconnect the electrical connectors.

    GFD216575Courtesy of FORD MOTOR COMPANY

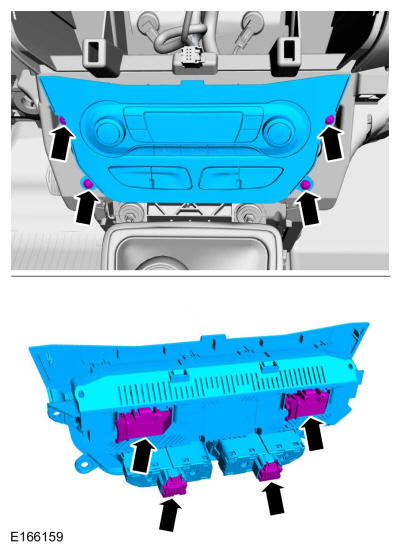

  15. Remove the screws and the climate control assembly.

    • Disconnect the electrical connectors.

    GFD216576Courtesy of FORD MOTOR COMPANY

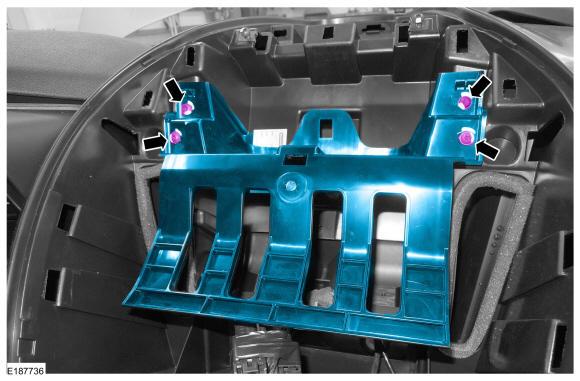

  16. NOTE: If equipped.

    Remove the screws and the bracket.

    GFD215713Courtesy of FORD MOTOR COMPANY

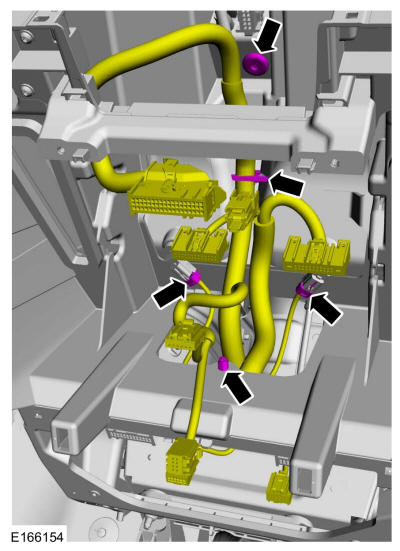

  17. Remove the bolt, release the harness retainers and position aside the harness.

    Torque: 71 lb.in (8 Nm)

    GFD216577Courtesy of FORD MOTOR COMPANY
  18. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

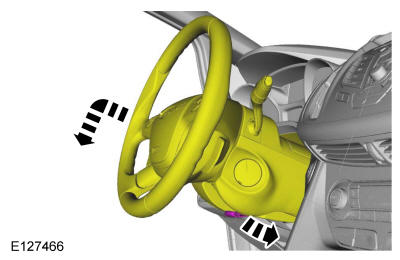

  19. Move the steering wheel to the lowest position.
    GFD215660Courtesy of FORD MOTOR COMPANY

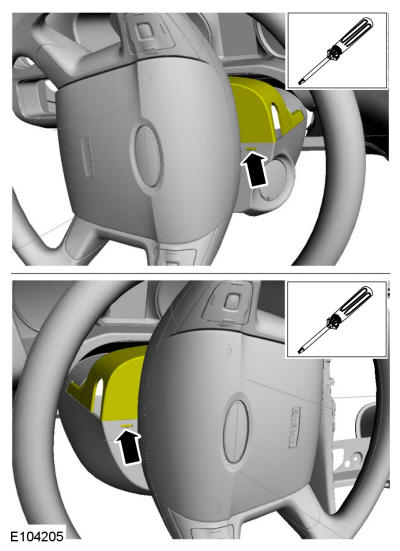

  20. Release the upper steering column shroud tabs.
    GFD215661Courtesy of FORD MOTOR COMPANY
  21. Center the steering wheel.
    GFD216578Courtesy of FORD MOTOR COMPANY

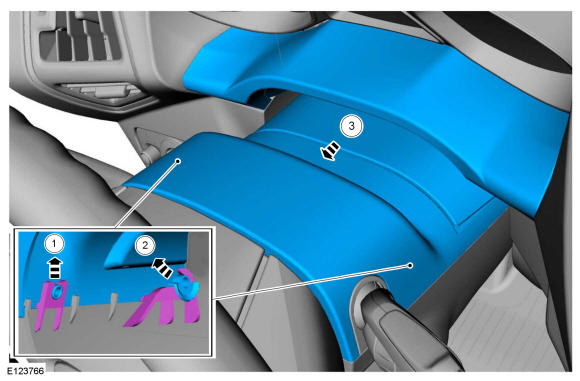

  22. Remove the upper steering column shroud and lower IPC trim panel.
    GFD215662Courtesy of FORD MOTOR COMPANY

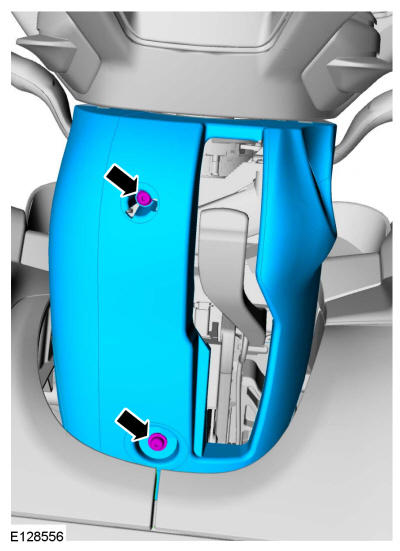

  23. Remove the bolts and the lower steering column shroud.
    GFD216579Courtesy of FORD MOTOR COMPANY

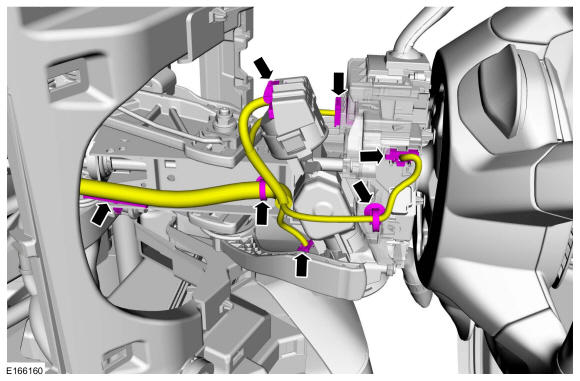

  24. Disconnect the electrical connectors.
    GFD216580Courtesy of FORD MOTOR COMPANY
  25. Remove the upper trim panel.
    GFD215816Courtesy of FORD MOTOR COMPANY

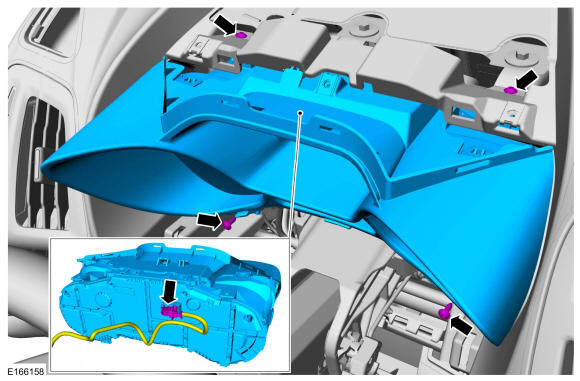

  26. Remove the screws and the IPC.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD215817Courtesy of FORD MOTOR COMPANY
  27. On both sides. Refer to: A-Pillar Trim Panel .
  28. Disconnect the electrical connectors.
    GFD216560Courtesy of FORD MOTOR COMPANY
  29. Remove the retainers and the insulation panel.
    GFD215707Courtesy of FORD MOTOR COMPANY
  30. Remove the glove compartment hinge pins and the glove compartment.
    GFD215708Courtesy of FORD MOTOR COMPANY
  31. Position aside the weather strip and remove the trim panel.

    • If equipped, disconnect the electrical connector.

    GFD216562Courtesy of FORD MOTOR COMPANY

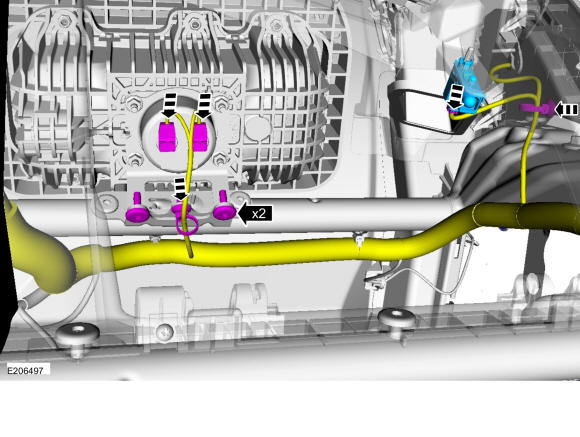

    1. Remove the passenger side air bag to in-vehicle cross beam bolts.

      Torque: 80 lb.in (9 Nm)

    2. Disconnect the electrical connectors release the harness retainers and position aside harness.
    GFD216581Courtesy of FORD MOTOR COMPANY

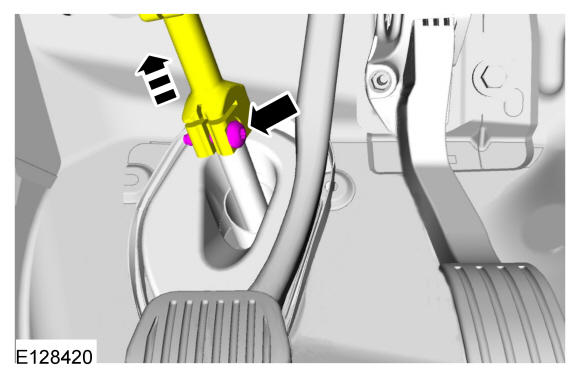

  33. NOTE: Do not allow the steering wheel to rotate while the steering shaft is disconnected or damage to the clockspring may result.

    Remove the bolt.

    Torque: 21 lb.ft (28 Nm)

    GFD216582Courtesy of FORD MOTOR COMPANY

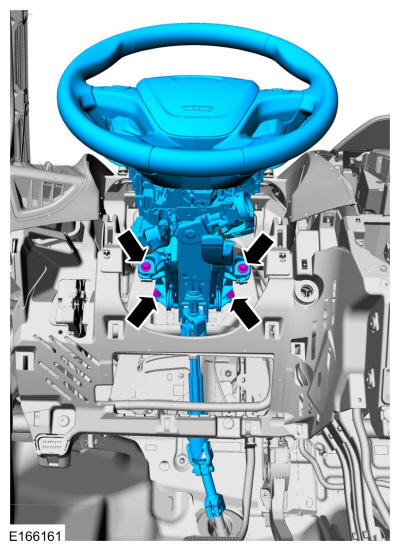

  34. Remove the bolts and the steering column.

    Torque: 18 lb.ft (25 Nm)

    GFD216583Courtesy of FORD MOTOR COMPANY

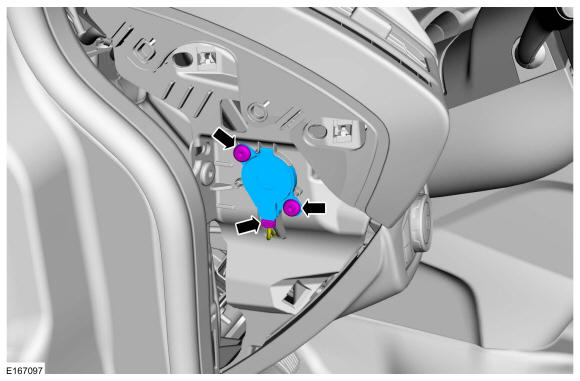

  35. Remove the retainers and the parking aid speaker.

    • Disconnect the electrical connector.

    GFD215836Courtesy of FORD MOTOR COMPANY

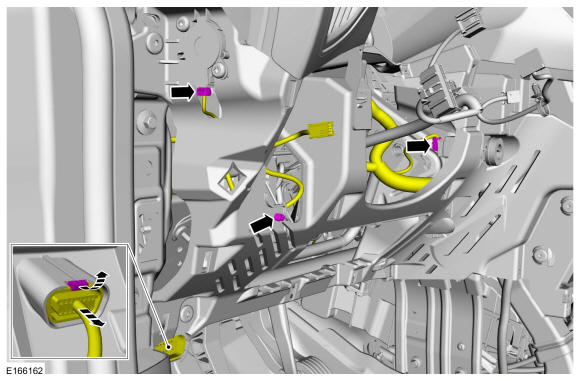

  36. Disconnect the electrical connectors and position the harness aside.
    GFD216584Courtesy of FORD MOTOR COMPANY

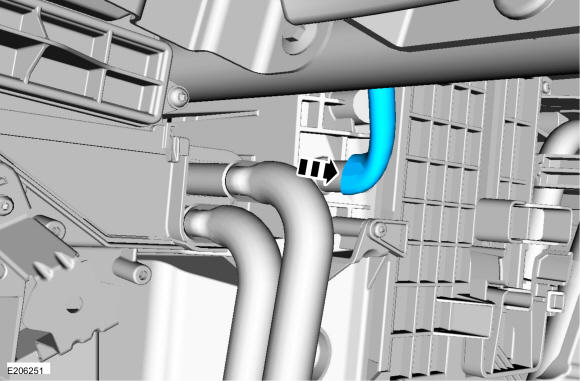

  37. Remove the hose.
    GFD216585Courtesy of FORD MOTOR COMPANY

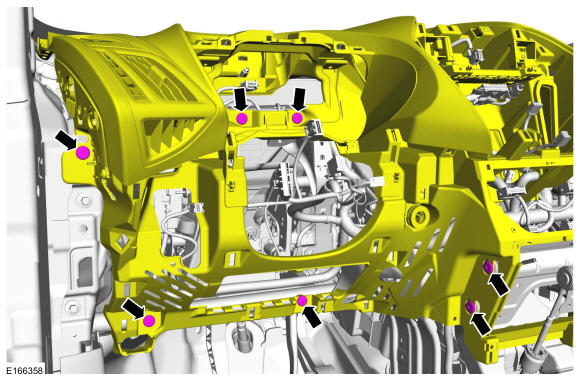

  38. Remove the bolts.

    Torque: 80 lb.in (9 Nm)

    GFD216586Courtesy of FORD MOTOR COMPANY

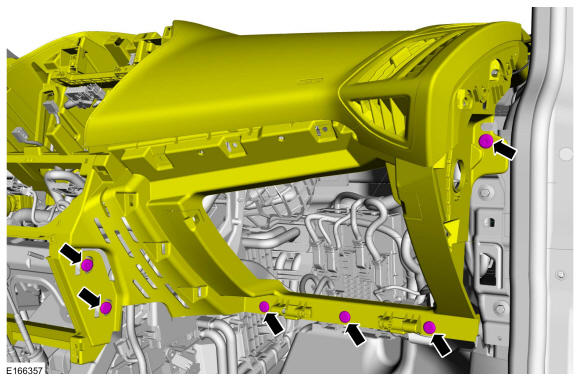

  39. Remove the bolts.

    Torque: 80 lb.in (9 Nm)

    GFD216587Courtesy of FORD MOTOR COMPANY

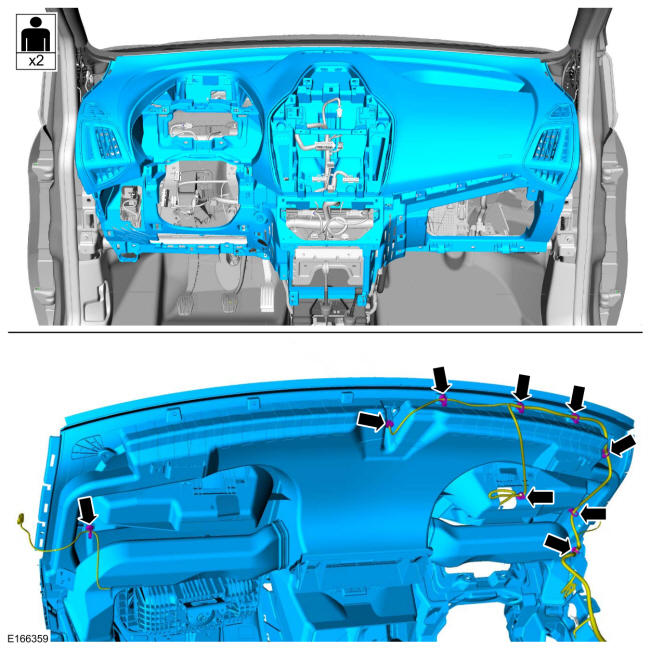

  40. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

    Remove the instrument panel upper section.

    • Disconnect the electrical connector, release the harness retainers and position aside the harness.

GFD216588Courtesy of FORD MOTOR COMPANY
