Third Row Seat: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD216481Courtesy of FORD MOTOR COMPANY

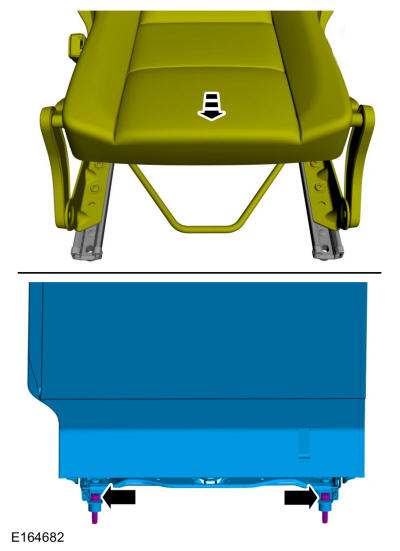

  2. Position the seat forward to access the rear bolts. Remove the rear bolts and the seat.

    Torque: 30 lb.ft (40 Nm)

GFD216482Courtesy of FORD MOTOR COMPANY
