Driver Door Window Control Switch - Without Door Modules 2-Way

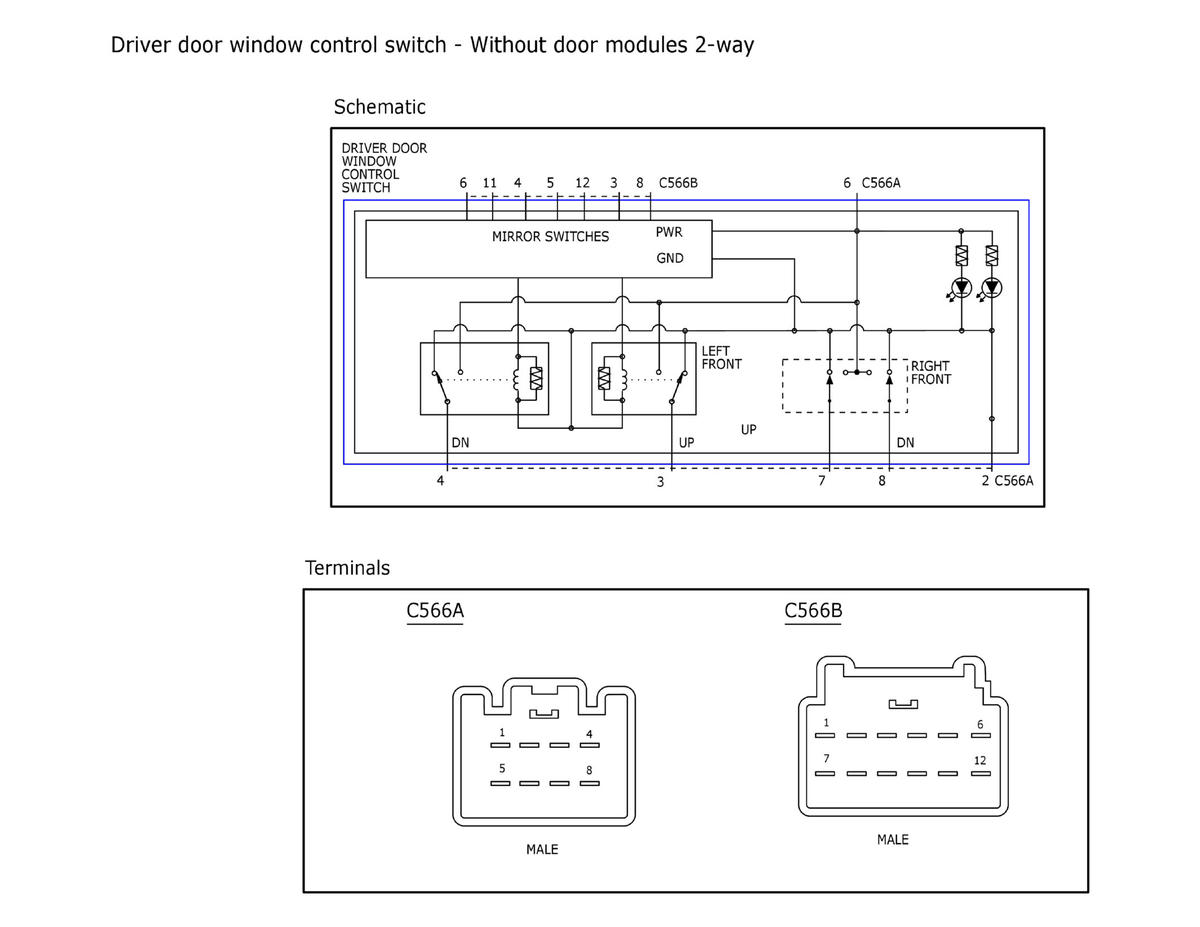

Fig 1: Driver Door Window Control Switch - Without Door Modules 2-Way (1 of 2)
GFDW85936Courtesy of FORD MOTOR COMPANY
Fig 2: Driver Door Window Control Switch - Without Door Modules 2-Way (2 of 2)
GFDW85937Courtesy of FORD MOTOR COMPANY
