Brakes
>>
Traction Control
>>
Anti-Lock Brake System (Abs) And Stability Control
>>
Description And Operation
>>
Anti-Lock Brake System (ABS) and Stability Control - System Operation and Component Description
>>
System Operation
>>
System Diagrams
System Diagrams

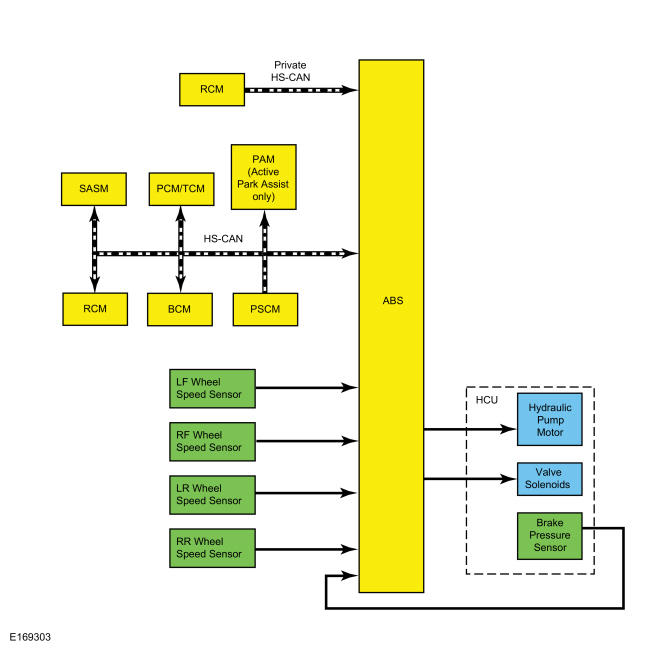

ABS and Stability Control System Diagram
Courtesy of FORD MOTOR COMPANY

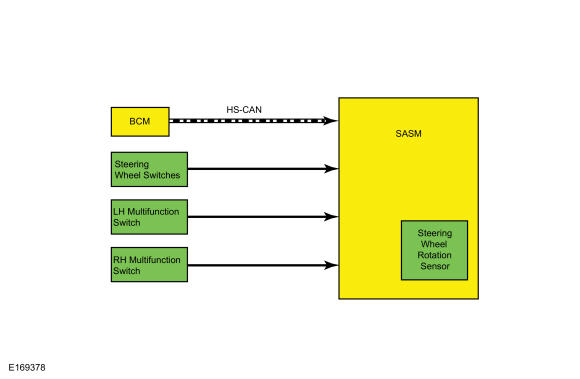

SASM System Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
