Lighting Control Module (LCM): Removal

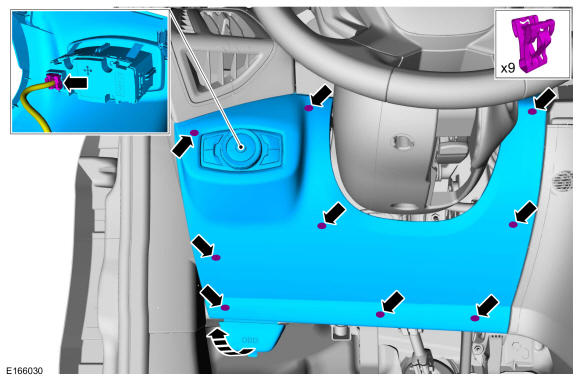

  1. Release the clips and remove the lower steering column shroud.

    • Disconnect the electrical connector.

    GFD214898Courtesy of FORD MOTOR COMPANY
  2. Disconnect the electric connector, remove the retainers and the LCM.
GFD216028Courtesy of FORD MOTOR COMPANY
