Strut and Spring Assembly: Installation

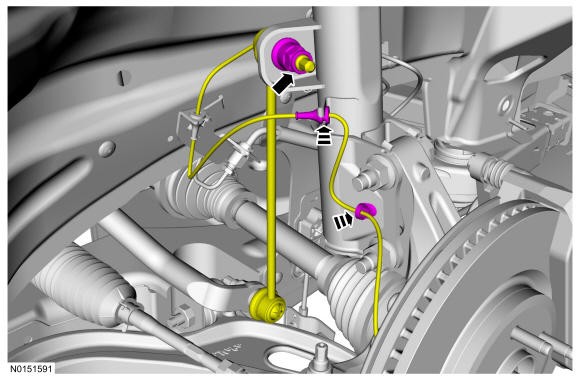

1.
Tighten to 63 Nm (46 lb-ft).
Courtesy of FORD MOTOR COMPANY

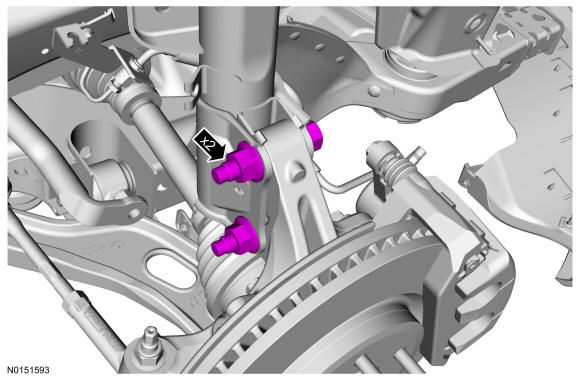

2.
Tighten to 225 Nm (166 lb-ft).
Courtesy of FORD MOTOR COMPANY

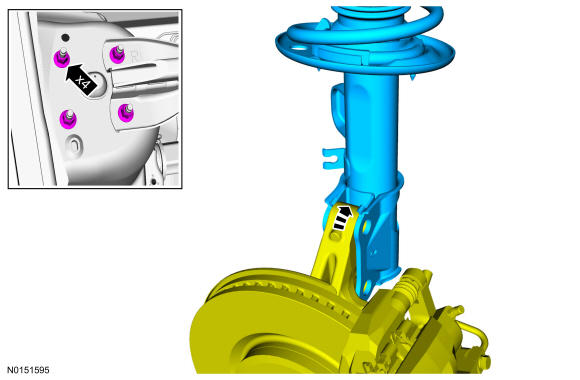

3.
Tighten to 150 Nm (111 lb-ft).
Courtesy of FORD MOTOR COMPANY
4.
Install the wheel and tire. Refer to
Wheels and Tires
.
5.
Check front camber adjustment. Refer to
Suspension System General Information
