OEM Electrical Wiring Diagram Introduction: Introduction

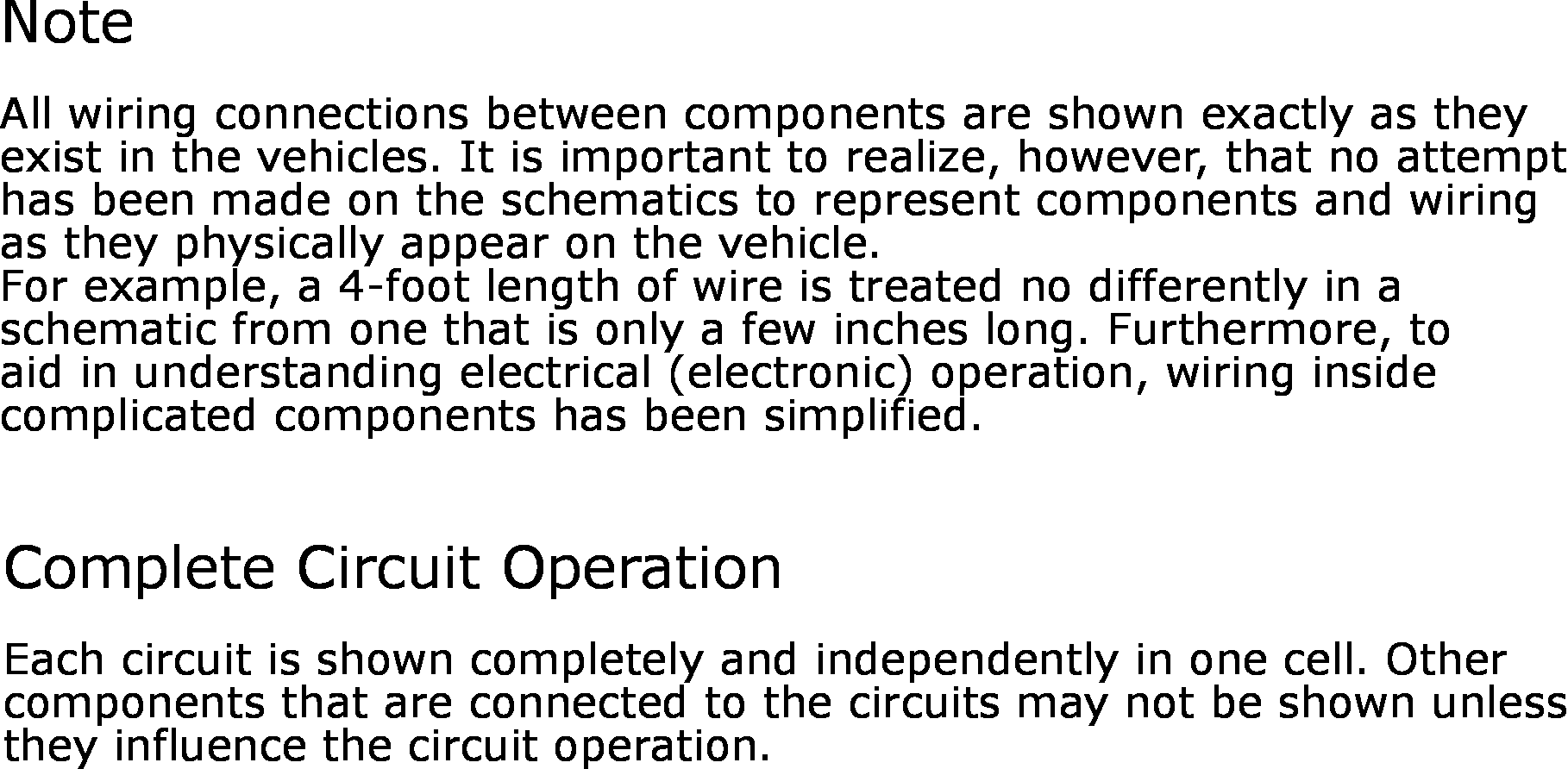

GFDW57846Courtesy of FORD MOTOR COMPANY

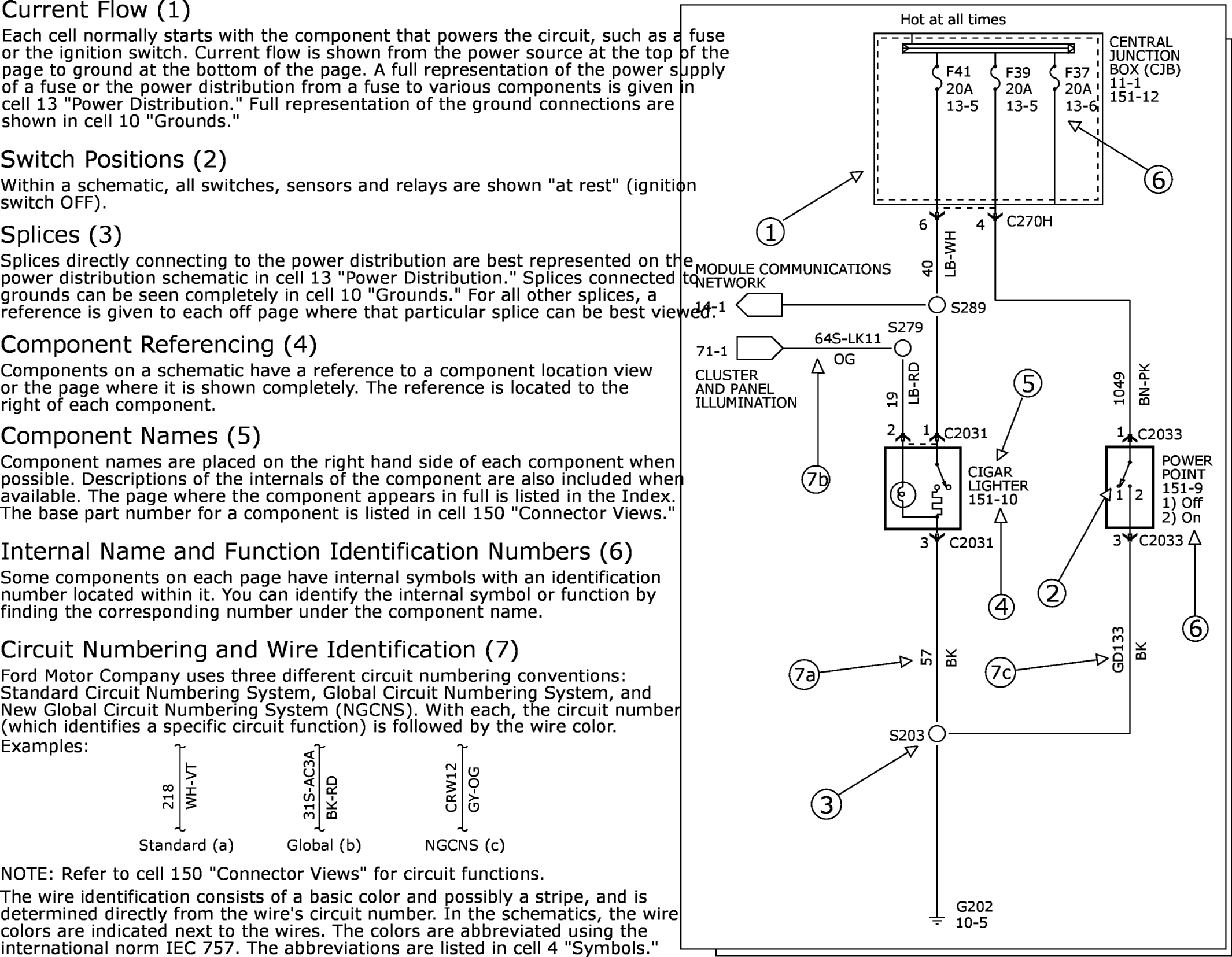

GFDW57847Courtesy of FORD MOTOR COMPANY

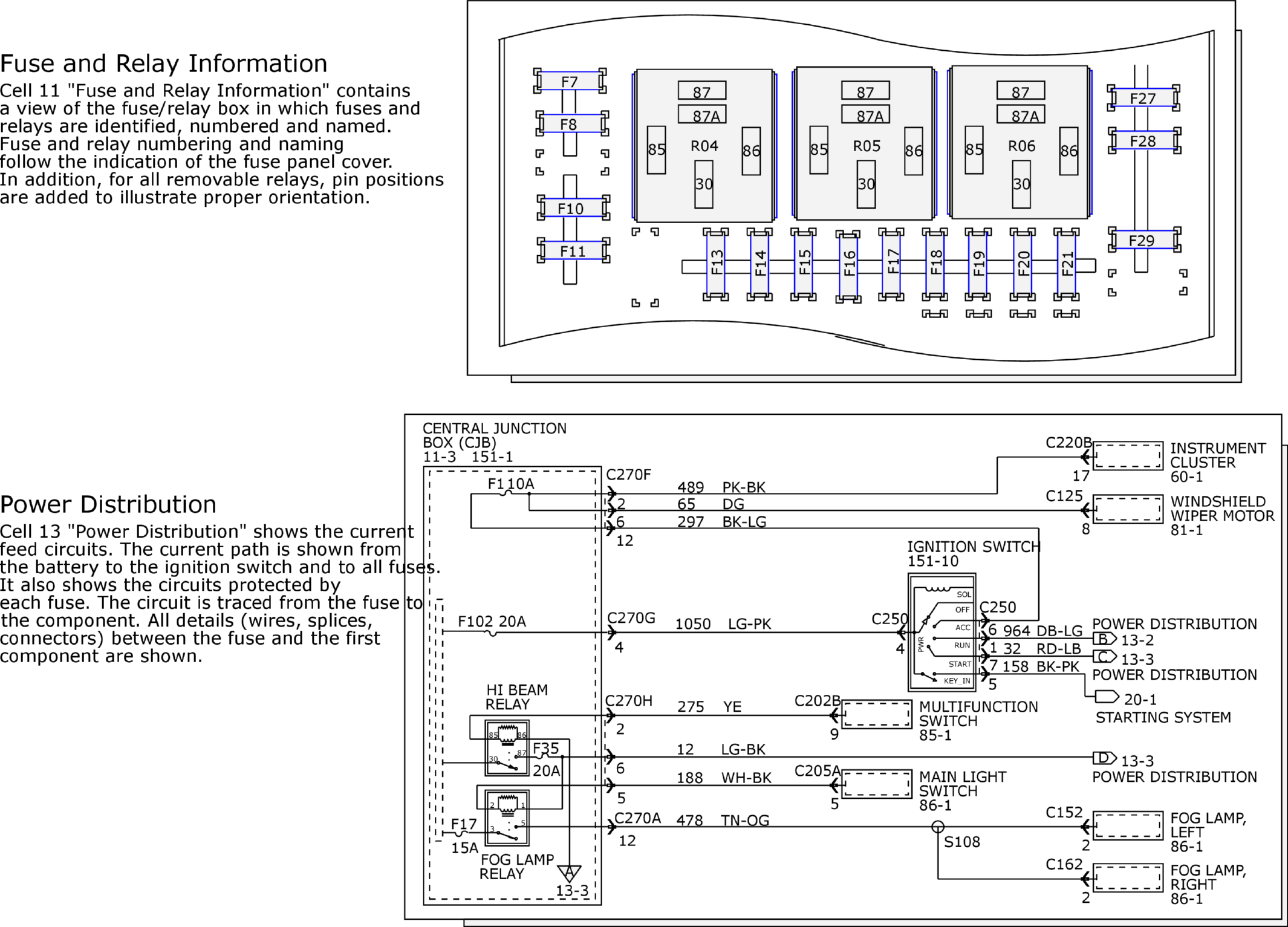

GFDW57848Courtesy of FORD MOTOR COMPANY

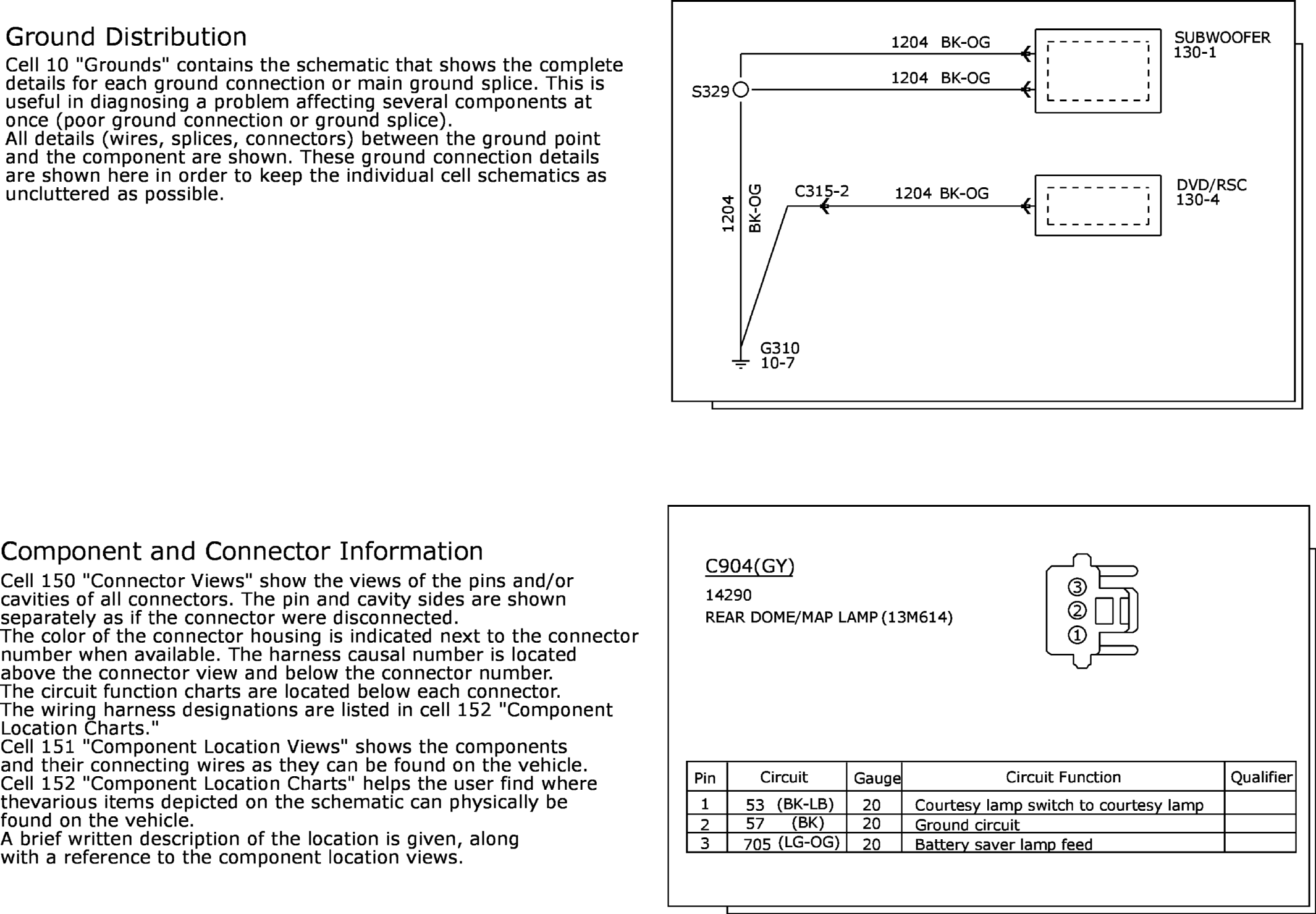

GFDW57849Courtesy of FORD MOTOR COMPANY

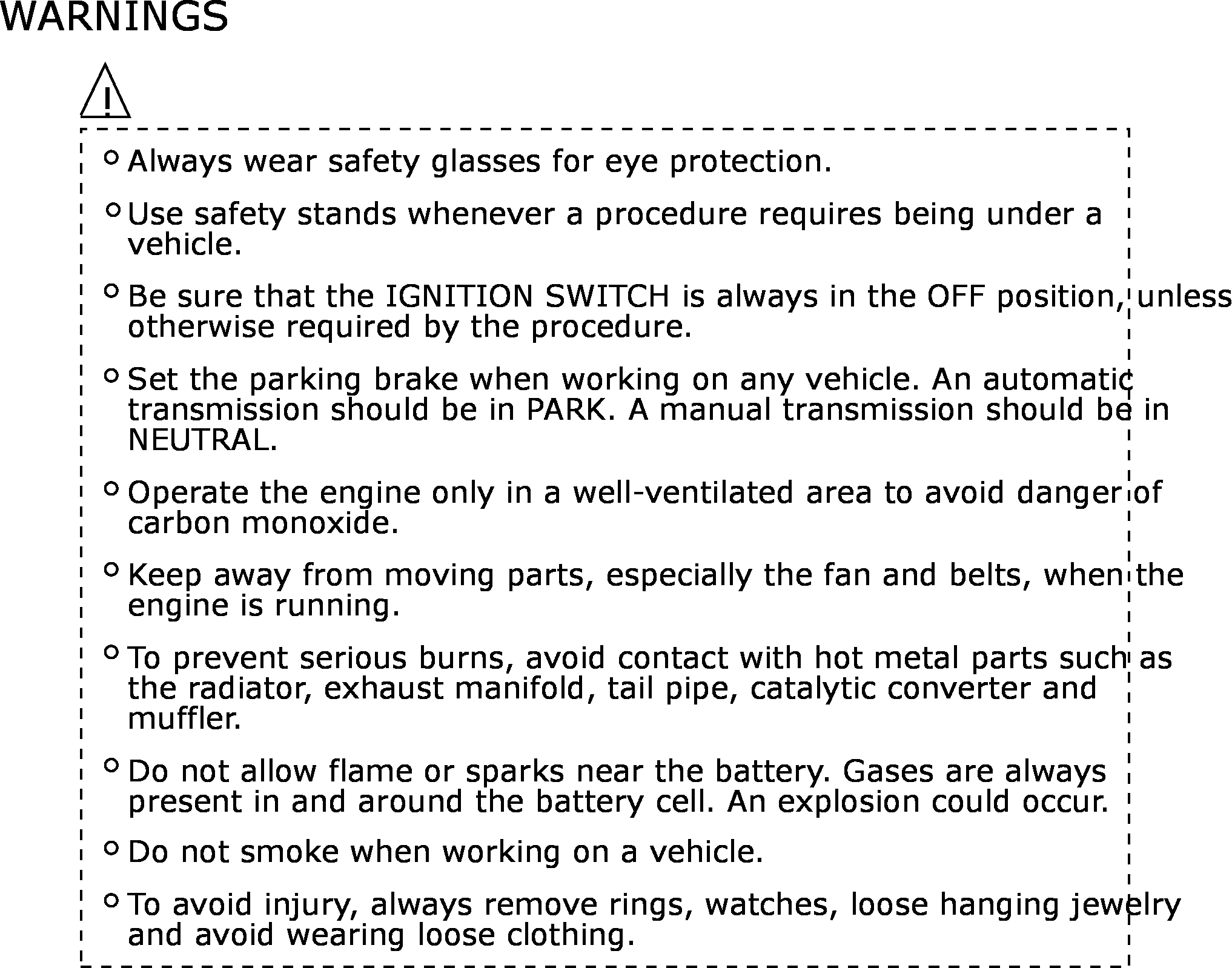

GFDW57850Courtesy of FORD MOTOR COMPANY
