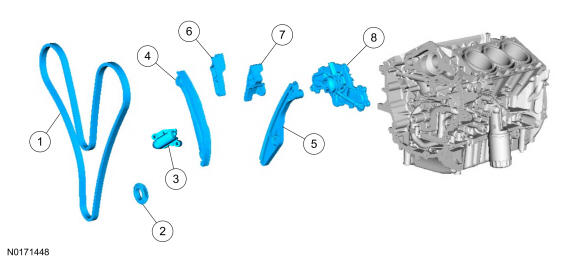

Exploded View Of Timing Drive Components
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6268 | Timing chain |
| 2 | 6306 | Crankshaft timing sprocket |
| 3 | 6L266 | Primary timing chain tensioner |
| 4 | 6K255 | Primary timing chain tensioner arm |
| 5 | 6B274 | LH lower primary timing chain guide |
| 6 | 6K297 | RH primary timing chain guide |
| 7 | 6K297 | LH upper primary timing chain guide |
| 8 | 8501 | Coolant pump |
