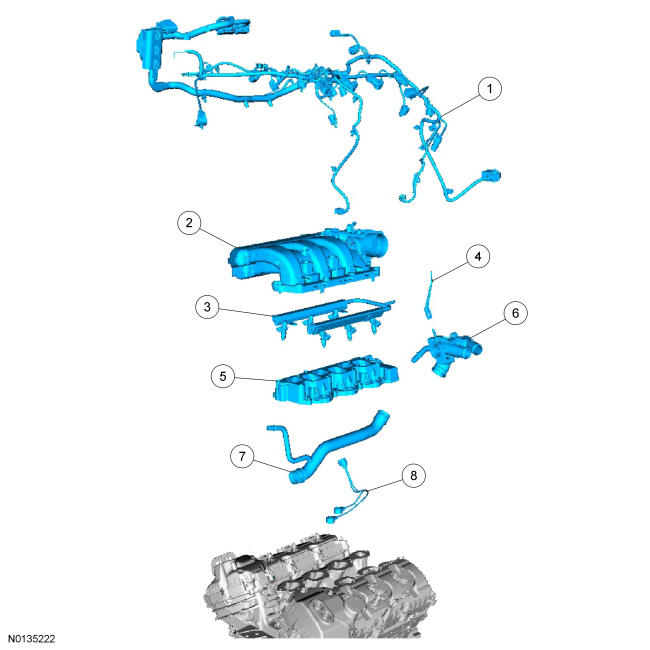

Exploded View Of Engine Upper
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
12C508 |
Engine control wiring harness |
| 2 |
9424 |
Upper intake manifold |
| 3 |
9F797 |
Fuel rail |
| 4 |
9J444 |
Upper intake manifold support bracket |
| 5 |
9J447 |
Lower intake manifold |
| 6 |
8A586 |
Thermostat housing |
| 7 |
9N271 |
Coolant tube |
| 8 |
12A699 |
Knock Sensor (KS) |
