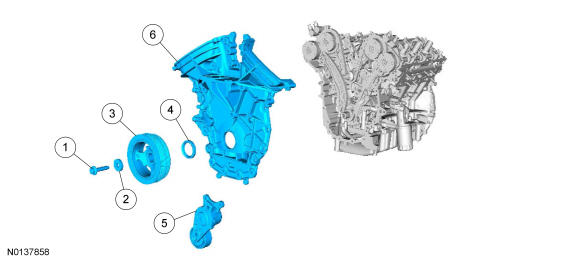

Exploded View Of Engine Front
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
W701512 |
Crankshaft pulley bolt |
| 2 |
N806165 |
Crankshaft pulley washer |
| 3 |
6316 |
Crankshaft pulley |
| 4 |
6700 |
Crankshaft front seal |
| 5 |
6B209 |
Accessory drive belt tensioner |
| 6 |
6019 |
Engine front cover |
