Removal And Installation: Transaxle: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE: Prior to installing a new, re-manufactured or overhauled transmission, clean the transmission fluid cooler tubes. Failure to clean the transmission fluid cooler tubes can result in transmission failure.
NOTE: If the transmission was overhauled, or if installing a new transmission and the transmission fluid cooler has not been flushed, flush the transmission fluid cooler at this time. Refer to the Transmission Fluid Cooler Backflushing and Cleaning in Automatic Transmission Cooling 6F35 . Clean the transmission-mounted transmission fluid cooler tubes by hand.

  1. 1.

    Lubricate the torque converter pilot hub with Multi-Purpose Grease.
GFD84242Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

GFD84243Courtesy of FORD MOTOR COMPANY

  1. 3.

    Support the transmission with a transmission jack. Secure the transmission to the transmission jack with a safety strap.

  1. 4.

    Position the transmission behind the engine and remove 307-566.
GFD84241Courtesy of FORD MOTOR COMPANY

  1. 5.

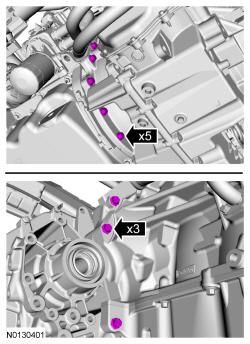

    Align the torque converter stud marked during removal with the flexplate, position the transmission on the dowel pins and install the lower transmission-to-engine bolts.
    • Tighten to 48 Nm (35 lb-ft).
GFD84240Courtesy of FORD MOTOR COMPANY

  1. 6.

    Apply threadlock to the threads and install the nuts and the bolt.
    • Tighten the nuts to 63 Nm (46 lb-ft).
    • Tighten the bolt to 80 Nm (59 lb-ft).
GFD84212Courtesy of FORD MOTOR COMPANY

  1. 7.

    Apply threadlock to the bolt threads and install the transmission support insulator through bolt.
    • Tighten to 175 Nm (129 lb-ft).
GFD84213Courtesy of FORD MOTOR COMPANY

  1. 8.

    Connect the transmission electrical connectors and the wiring harness retainers.
GFD82968Courtesy of FORD MOTOR COMPANY

  1. 9.

    Install the catalytic converter support bracket, the studs and the nuts.

    1. 1.

      Tighten to 18 Nm (13 lb-ft).

    1. 2.

      Tighten to 40 Nm (30 lb-ft).

    1. 3.

      Tighten to 25 Nm (18 lb-ft).
GFD84244Courtesy of FORD MOTOR COMPANY

  1. 10.

    Install the transmission fluid cooler tube bolts.
    • Tighten to 9 Nm (80 lb-in).
GFD84238Courtesy of FORD MOTOR COMPANY

  1. 11.

    Inspect the transaxle case bushing. If the surface shows signs of excessive wear or damage, replace the transaxle case bushing. Refer to Transaxle Case Bushing .
GFD81677Courtesy of FORD MOTOR COMPANY

  1. 12.

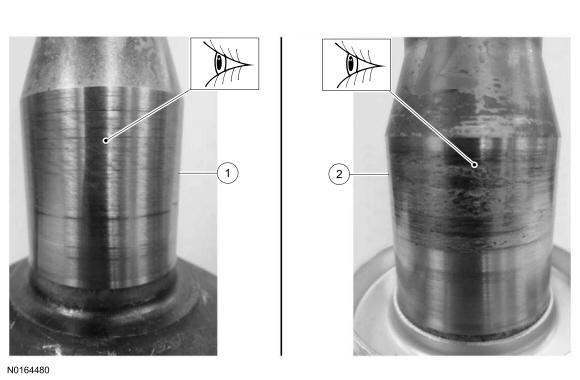

    Inspect the LH halfshaft journal. If there is metal transfer on the journal, replace the LH halfshaft. Refer to Front Drive Halfshafts .
    Item Part Number Description
    1 - Halfshaft journal with normal wear.
    2 - Halfshaft journal with metal transfer.
GFD81676Courtesy of FORD MOTOR COMPANY

  1. 13.

    Inspect the halfshaft for wear or damage and install a new halfshaft, if necessary.

    1. 1.

      Inspect the differential seal surface.

    1. 2.

      Inspect the halfshaft bushing surface. If this surface is damaged, inspect the halfshaft bushing for damage.

    1. 3.

      Inspect the differential side gear splines.
GFD84245Courtesy of FORD MOTOR COMPANY

  1. 14.

    NOTE: Make sure to install the correct circlip for this application. Failure to use the correct diameter circlip may result in shaft removal concerns or shaft damage during vehicle operation.

    Install the correct new circlip on the inboard stub shaft.

GFD83120Courtesy of FORD MOTOR COMPANY

  1. 15.

    NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    If necessary, install a new LH halfshaft seal. Refer to, Halfshaft Seal - LH .

  1. 16.

    Install a seal protector on the LH halfshaft seal.
GFD83121Courtesy of FORD MOTOR COMPANY

  1. 17.

    NOTE: The sharp edges on the halfshaft splines can slice or puncture the oil seal. Use care when inserting the halfshaft into the transmission or damage to the seal may occur.

    Push the LH halfshaft into the transmission so the splines go through the special tool and remove the special tool.

GFD83122Courtesy of FORD MOTOR COMPANY

  1. 18.

    Push the LH halfshaft into the transmission so the circlip locks into the differential side gear. Pull the halfshaft inner end to make sure the circlip is locked.
GFD84246Courtesy of FORD MOTOR COMPANY

  1. 19.

    1. 1.

      Inspect the RH halfshaft seal surface.

    1. 2.

      Inspect the dust shield.

    1. 3.

      Inspect the differential side gear splines.
GFD84247Courtesy of FORD MOTOR COMPANY

  1. 20.

    NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    If necessary, install a new RH halfshaft seal. Refer to, Halfshaft Seal - RH .

  1. 21.

    Install a seal protector on the RH halfshaft seal.
GFD84248Courtesy of FORD MOTOR COMPANY

  1. 22.

    Push the RH halfshaft into the transmission so the splines go through the seal protector and remove the seal protector.
GFD84249Courtesy of FORD MOTOR COMPANY

  1. 23.

    Install the RH halfshaft assembly.
GFD84250Courtesy of FORD MOTOR COMPANY

  1. 24.

    Install the halfshaft bracket nuts.
    • Tighten to 25 Nm (18 lb-ft).
GFD83123Courtesy of FORD MOTOR COMPANY

  1. 25.

    Install the subframe. Refer to Uni-Body, Subframe and Mounting System .

  1. 26.

    Install the roll restrictor bracket and the roll restrictor bracket bolts.
    • Tighten to 90 Nm (66 lb-ft).
GFD84234Courtesy of FORD MOTOR COMPANY

  1. 27.

    NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.

    Install new torque converter nuts.

    • Tighten to 40 Nm (30 lb-ft).
GFD84251Courtesy of FORD MOTOR COMPANY

  1. 28.

    Install the starter insulator.
GFD84232Courtesy of FORD MOTOR COMPANY

  1. 29.

    Install the starter. Refer to Starting System .

  1. 30.

    Install the upper transmission-to-engine bolts.
    • Tighten to 48 Nm (35 lb-ft).
GFD82971Courtesy of FORD MOTOR COMPANY

  1. 31.

    Connect the wiring retainers.
GFD84231Courtesy of FORD MOTOR COMPANY

  1. 32.

    Install the transmission fluid cooler warmer and the bolts.
    • Tighten to 30 Nm (22 lb-ft).
GFD84230Courtesy of FORD MOTOR COMPANY

  1. 33.

    If removed, inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary. Lubricate the transmission mounted transmission fluid cooler tube seals with automatic transmission fluid and install the backing rings and seals on the transmission mounted transmission fluid cooler tubes.

    1. 1.

      Seal

    1. 2.

      Backing ring
GFD83725Courtesy of FORD MOTOR COMPANY

  1. 34.

    Install the new transmission fluid cooler tube bolts.
    • Tighten to 9 Nm (80 lb-in).
GFD84252Courtesy of FORD MOTOR COMPANY

  1. 35.

    Install the temperature control valve, the nuts and the retainer.
    • Tighten to 9 Nm (80 lb-in).
GFD84150Courtesy of FORD MOTOR COMPANY

  1. 36.

    Install the selector lever cable bracket and the bolts.
    • Tighten to 25 Nm (18 lb-ft).
GFD84253Courtesy of FORD MOTOR COMPANY

  1. 37.

    Install the battery tray and battery. Refer to Battery, Mounting and Cables .

  1. 38.

    Adjust the selector lever cable. Refer to Automatic Transmission External Controls .

  1. 39.

    Install the ACL and the outlet pipe. Refer to Intake Air Distribution and Filtering .

  1. 40.

    Fill the transmission with transmission fluid. Refer to Transmission Fluid Drain and Refill .

  1. 41.

    After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.

  1. 42.

    If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to Solenoid Body Strategy Download .
