Differential Gear Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

  1. 1.

    Pin punch. Discard the specified component. Follow local disposal regulations.
GFD84538Courtesy of FORD MOTOR COMPANY
GFD84539Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: Do not mix up the washers from the side or spider gears that they were originally assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.

    1. 1.

      Side gear

    1. 2.

      Spider gear
GFD84540Courtesy of FORD MOTOR COMPANY

  1. 4.

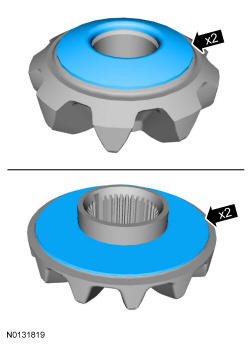

    NOTE: Do not mix up the washers from the side or spider gears that they are assembled with. Assembly of the differential with the wrong washers can cause excessive wear to the differential carrier, spider or side gears.
GFD84541Courtesy of FORD MOTOR COMPANY
