Oil Cooler: Notes

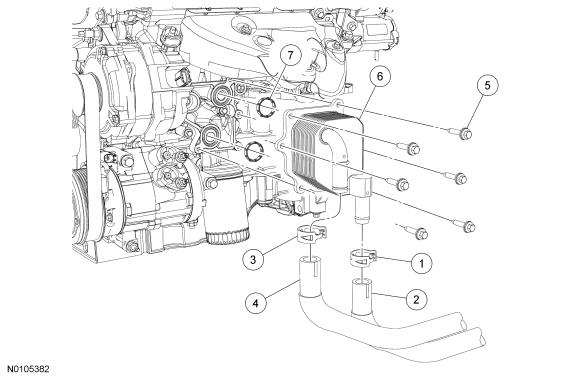

GFD82480Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Coolant hose clamp (part of 8N021)
2 - Coolant hose (part of 8N021)
3 - Coolant hose clamp (part of 8N021)
4 - Coolant hose (part of 8N021)
5 W503277 Oil cooler bolt (6 required)
6 6A642 Oil cooler
7 6A636 Oil cooler gasket (2 required)
