Engine Front Cover: Removal

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting .

  1. 2.

    Disconnect the LH Heated Oxygen Sensor (HO2S) electrical connector.
    • Detach the HO2S connector retainer from the bracket.
GFD82427Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the LH and RH valve cover. For additional information, refer to Valve Cover - LH  and Valve Cover - RH .

  1. 4.

    If equipped, remove the 4 retainers and the underbody shield.
GFD82419Courtesy of FORD MOTOR COMPANY

  1. 5.

    If equipped, remove the 10 bolts and the skid plate.
GFD82420Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the RH inner fender splash shield. For additional information, refer to Front End Body Panels .

  1. 7.

    Remove the accessory drive belt and tensioner. For additional information, refer to Accessory Drive .

  1. 8.

    Loosen the rear roll restrictor bolt.
GFD82428Courtesy of FORD MOTOR COMPANY

  1. 9.

    Remove the 2 bolts and the rear roll restrictor bracket.
GFD82429Courtesy of FORD MOTOR COMPANY

  1. 10.

    Remove the front roll restrictor bolt.
GFD82430Courtesy of FORD MOTOR COMPANY

  1. 11.

    Remove the oil pan drain plug and drain the engine oil.
    • Install the drain plug and tighten to 27 Nm (20 lb-ft).
GFD82431Courtesy of FORD MOTOR COMPANY

  1. 12.

    Using the Strap Wrench, remove the crankshaft bolt and washer.
    • Discard the bolt.
GFD82421Courtesy of FORD MOTOR COMPANY

  1. 13.

    NOTE: Use a three leg puller (such as Matco Tools ® MST9740D or equivalent).

    Using a three leg puller, remove the crankshaft pulley.

GFD82007Courtesy of FORD MOTOR COMPANY

  1. 14.

    Using the Oil Seal Remover, remove and discard the crankshaft front seal.
GFD82424Courtesy of FORD MOTOR COMPANY

  1. 15.

    Remove the engine mount. For additional information, refer to Engine Mount .

  1. 16.

    NOTE: Only use hand tools to remove the studs.

    Remove the 2 engine mount studs.

GFD82432Courtesy of FORD MOTOR COMPANY

  1. 17.

    Detach the RH Heated Oxygen Sensor (HO2S) electrical connector from the bracket.
    • Remove the stud bolt and the bracket.
GFD82433Courtesy of FORD MOTOR COMPANY

  1. 18.

    Using the floor jack, raise the engine slightly.

  1. 19.

    Remove the 2 upper engine mount bracket bolts.
GFD82434Courtesy of FORD MOTOR COMPANY

  1. 20.

    Using the floor jack, lower the engine slightly.

  1. 21.

    Loosen the lower engine mount bracket bolt and remove the engine mount bracket and bolt as an assembly.
GFD82435Courtesy of FORD MOTOR COMPANY

  1. 22.

    Remove the 22 engine front cover bolts.
GFD82436Courtesy of FORD MOTOR COMPANY

  1. 23.

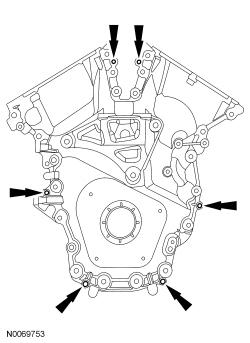

    Install 6 of the engine front cover bolts (finger tight) into the 6 threaded holes in the engine front cover.

    1. 1.

      Tighten the bolts one turn at a time in a crisscross pattern until the engine front cover-to-cylinder block seal is released.

    1. 2.

      Remove the engine front cover.
GFD82437Courtesy of FORD MOTOR COMPANY
