Wheel Speed Sensor - Front: Removal

NOTE: Steps in the removal procedure may contain installation details.

  1. 1.

    Remove the wheel and tire. Refer to Wheels and Tires .

  1. 2.

GFD81787Courtesy of FORD MOTOR COMPANY

  1. 3.

GFD81788Courtesy of FORD MOTOR COMPANY

  1. 4.

GFD81789Courtesy of FORD MOTOR COMPANY

  1. 5.

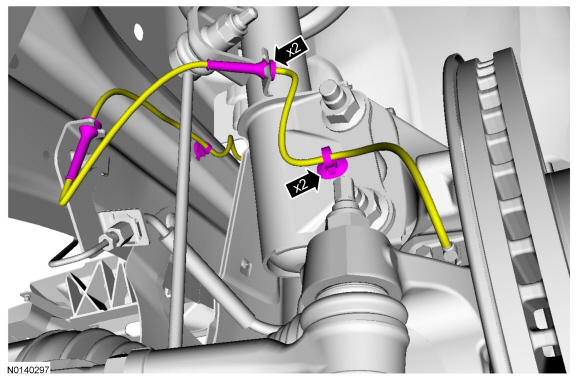

GFD81790Courtesy of FORD MOTOR COMPANY

  1. 6.

    • To install, tighten to 15 Nm (133 lb-in).

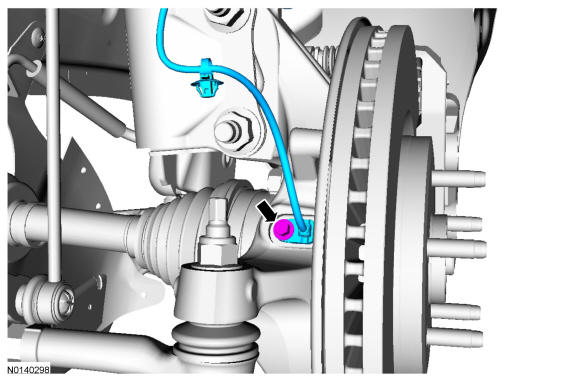

GFD81791Courtesy of FORD MOTOR COMPANY
