Front Seat Motor Cable: Installation

NOTE: The front seat motor cable service part for the driver seat is different than the service part for passenger seat. Make sure to install the correct service part required for the seat.

  1. 1.

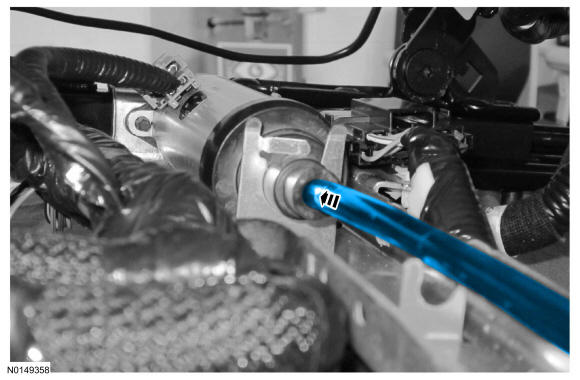

GFD85866Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: The cable felt covering should not be visible when the cable is correctly engaged to the horizontal motor square drive.
    • Push the cable into the horizontal motor square drive twisting back and forth to engage the cable.

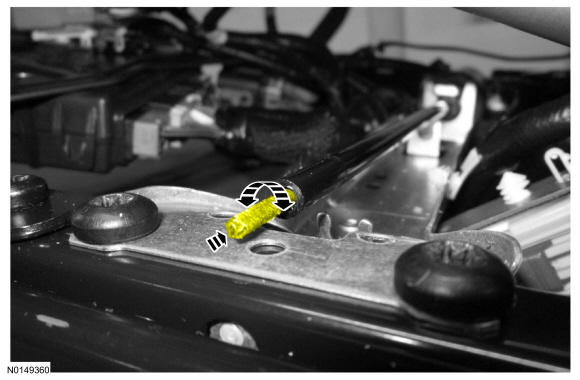

GFD85867Courtesy of FORD MOTOR COMPANY

  1. 3.

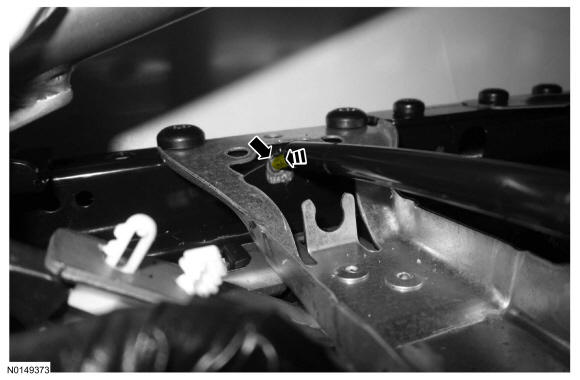

GFD85868Courtesy of FORD MOTOR COMPANY

  1. 4.

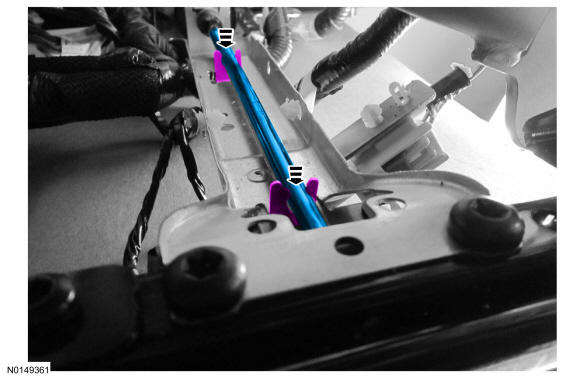

GFD85869Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Connectors and location may vary due to vehicle configuration.

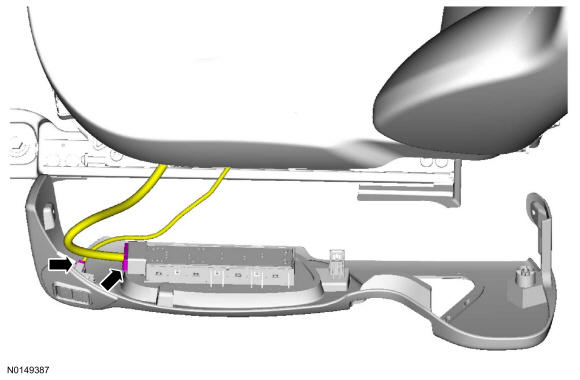

GFD85748Courtesy of FORD MOTOR COMPANY

  1. 6.

    1. 1.

      If equipped with Active Motion ® massage.

    1. 2.

      -

    1. 3.

      -

    1. 4.

      -

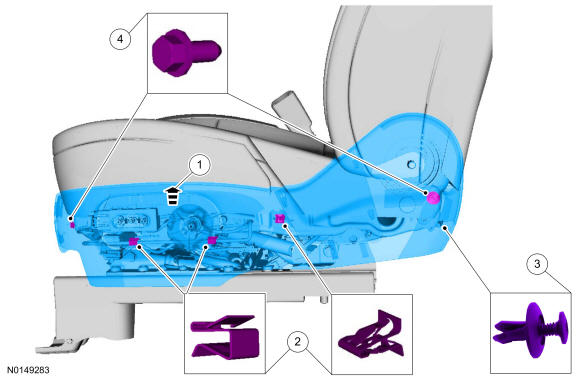

GFD85749Courtesy of FORD MOTOR COMPANY

  1. 7.

    If equipped with Active Motion ® massage.

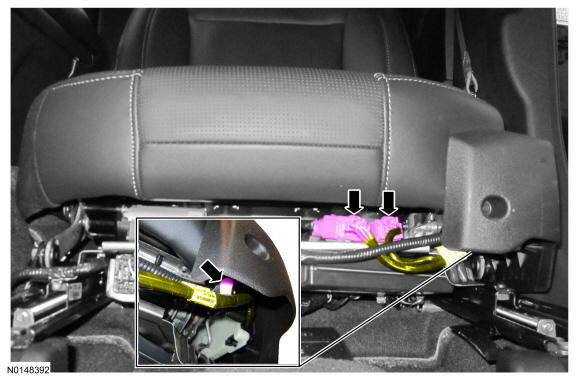

GFD85726Courtesy of FORD MOTOR COMPANY

  1. 8.

    If equipped.

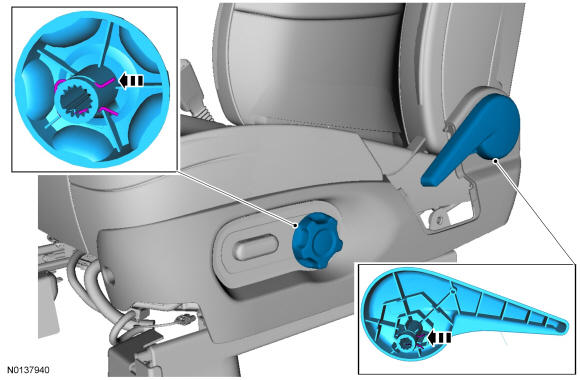

GFD85725Courtesy of FORD MOTOR COMPANY

  1. 9.

    Install the front seat. Refer to Seat - Front .
