Head Up Display (HUD) Module: Notes

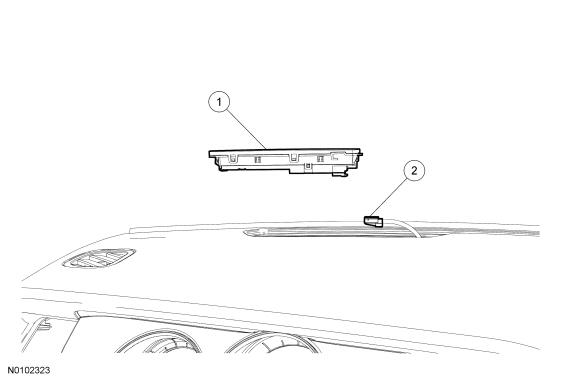

GFD85570

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	19G468	Head Up Display (HUD) module
2	-	HUD module electrical connector (part of 14401)
