Main Control Valve Body: Installation

  1. 1.

    New separator plate.
    • Tighten to 10 Nm (89 lb-in).
GFD84187Courtesy of FORD MOTOR COMPANY

  1. 2.

    • Tighten to 10 Nm (89 lb-in).
GFD84188Courtesy of FORD MOTOR COMPANY

  1. 3.

    Align the new separator plate on the stud and the guide pin.
GFD84189Courtesy of FORD MOTOR COMPANY

  1. 4.

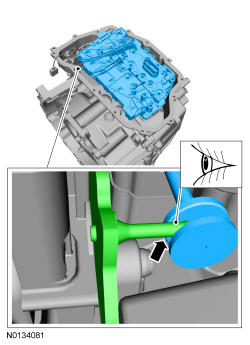

    NOTE: Be sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.
GFD84165Courtesy of FORD MOTOR COMPANY

  1. 5.

    Nut hand-tight.
GFD84190Courtesy of FORD MOTOR COMPANY

  1. 6.

    Short bolts hand-tight.
GFD84191Courtesy of FORD MOTOR COMPANY

  1. 7.

    Long bolts hand-tight.
GFD84192Courtesy of FORD MOTOR COMPANY

  1. 8.

    Tighten in a crisscross pattern.
    • Tighten to 10 Nm (89 lb-in).
GFD84193Courtesy of FORD MOTOR COMPANY

  1. 9.

    NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.
GFD84194Courtesy of FORD MOTOR COMPANY
GFD84169Courtesy of FORD MOTOR COMPANY
GFD84160Courtesy of FORD MOTOR COMPANY

  1. 12.

    Install the main control cover. Refer to Main Control Cover .

  1. 13.

    NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.

    Refer to Solenoid Body Strategy Download .
