Fuel Injection Pump Tappet Inspection

• 1.

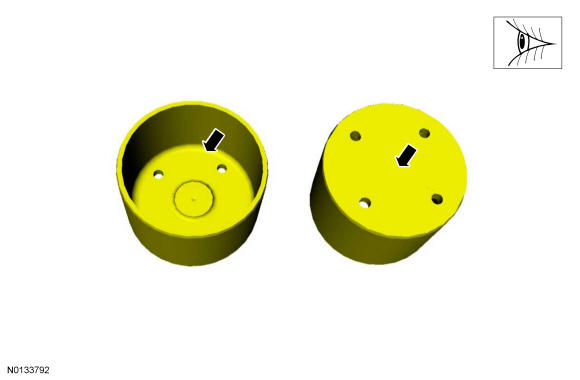

  Inspect the fuel injection pump tappet for flat spots or scoring, especially in the indicated areas. Visual check.

Courtesy of FORD MOTOR COMPANY

• 2.

  If any damage is found, inspect the fuel injection pump and the fuel injection pump tappet drive lobe. Install new components as necessary.
