Fuel Rail: Removal

1.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .

2.

Disconnect the battery. Refer to: Battery Disconnect and Connect .

3.

Remove the upper intake manifold. Refer to: Upper Intake Manifold .

4.

Disconnect the fuel rail fuel feed tube. Refer to: Quick Release Coupling .

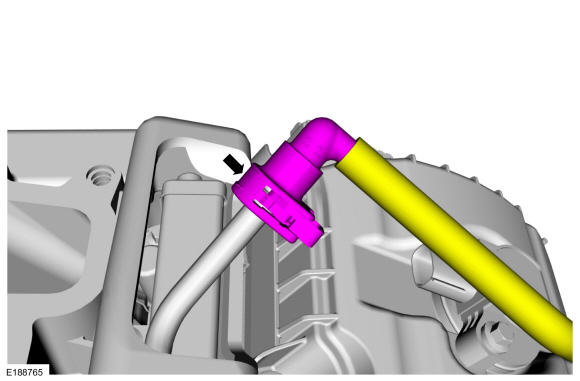

GFD130719

Courtesy of FORD MOTOR COMPANY

5.

Remove the RH and LH fuel rail insulators.

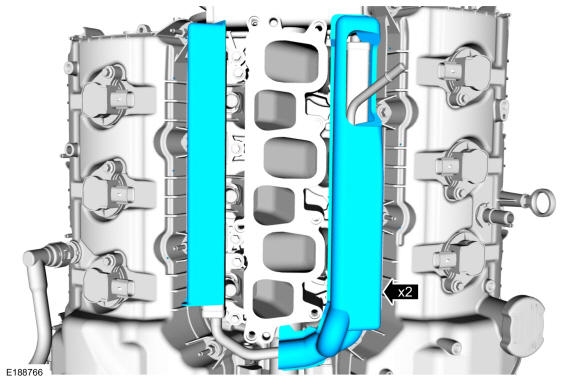

GFD130720

Courtesy of FORD MOTOR COMPANY

6.

Disconnect the fuel injector electrical connectors.

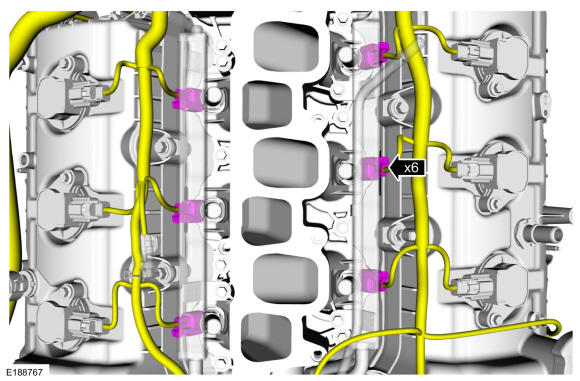

GFD130721

Courtesy of FORD MOTOR COMPANY

7.

Remove the fuel rail retaining bolts and then remove the fuel rail.

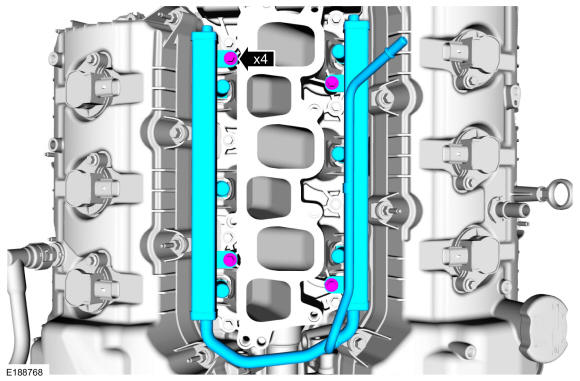

GFD130722

Courtesy of FORD MOTOR COMPANY

8.
- 1.

  Remove the fuel injector retaining clips.
- 2.

  Remove the fuel injectors from the fuel rail.

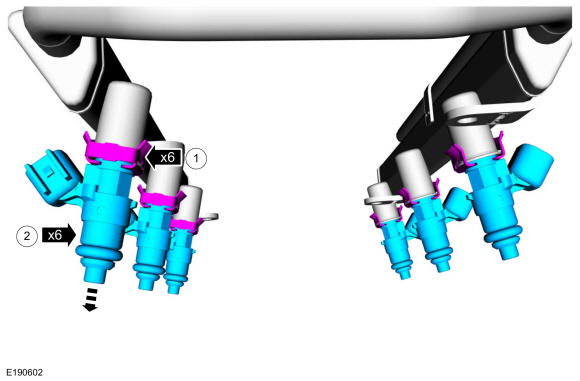

GFD130723

Courtesy of FORD MOTOR COMPANY

9.

Remove and discard all of the fuel injector O-ring seals.

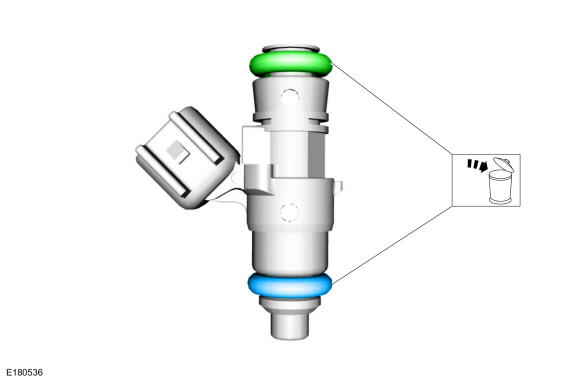

GFD130724

Courtesy of FORD MOTOR COMPANY
