Fuel Pump Driver Module (FPDM): Installation

1.

Install the FPDMs to the FPDM bracket, then install and tighten the FPDM retainers.
Torque: 71 lb.in (8 Nm)

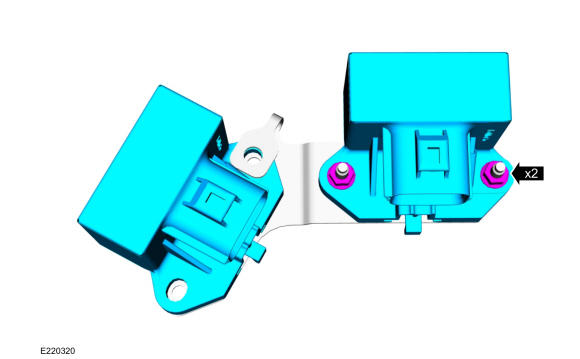

GFD130751

Courtesy of FORD MOTOR COMPANY

2.

Install the FPDM assembly, then install and tighten the FPDM retainers.
Torque: 71 lb.in (8 Nm)

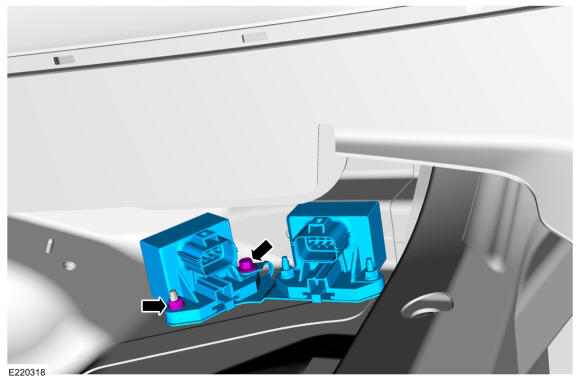

GFD130752

Courtesy of FORD MOTOR COMPANY

3.

Connect the FPDM electrical connectors.

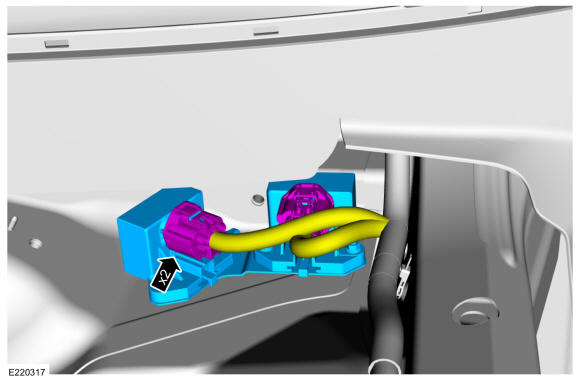

GFD130749

Courtesy of FORD MOTOR COMPANY

4.

Install the rear seat cushion. Refer to: Rear Seat Cushion .
