Ride Height Measurement

Special Tool(s) / General Equipment

Check

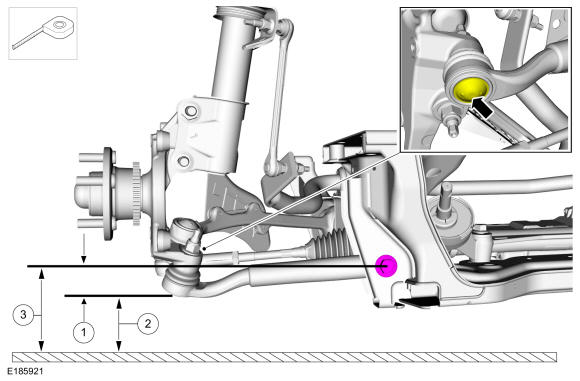

Ride Height Measurement - Front

• 1.


  NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

  • 1.

    Ride height = 3-2

  • 2.

    Measure the distance between the flat level surface and the center of the rear control arm ball joint cap (measurement 2)

  • 3.

    Measure the distance between the flat level surface and the center of the rear control arm inboard bolt (measurement 3) Use the General Equipment: Surface Gauge

Courtesy of FORD MOTOR COMPANY

• 2.

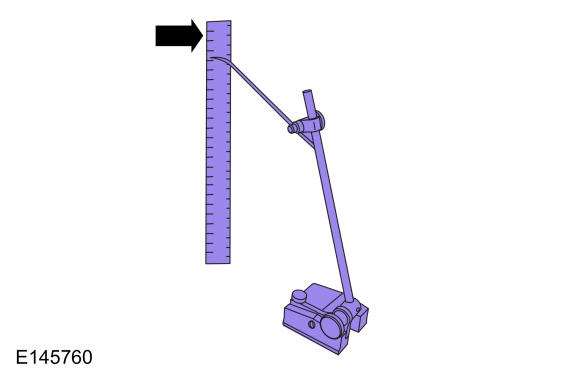

  With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2) and (measurement 3).

Courtesy of FORD MOTOR COMPANY

• 3.

  Subtract measurement 2 from measurement 3 to obtain the front ride height.

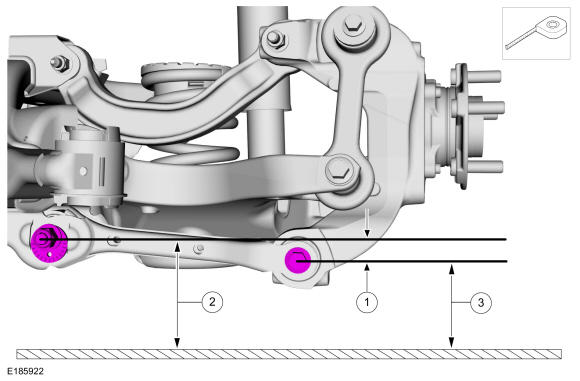

Ride Height Measurement - Rear

• 4.



  • 1.

    Ride height = 2-3

  • 2.

    Measurement 2

  • 3.

    Measurement 3 Use the General Equipment: Surface Gauge

Courtesy of FORD MOTOR COMPANY

• 5.

  Measure the distance between the flat level surface and the center of the toe link inboard cam bolt (measurement 2).

• 6.

  Measure the distance between the flat level surface and the center of the toe link outboard bolt (measurement 3).

• 7.

  Subtract measurement 3 from measurement 2 to obtain the rear ride height.
