Selector Lever Knob: Removal
NOTE:
Removal steps in this procedure may contain installation details.

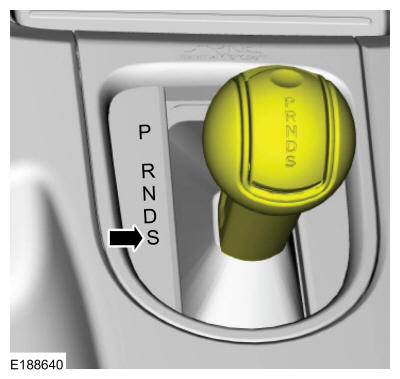

- 1.
Position the shifter in the S position.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Starting from the front corners, carefully pry up the bezel and position it out of the way.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

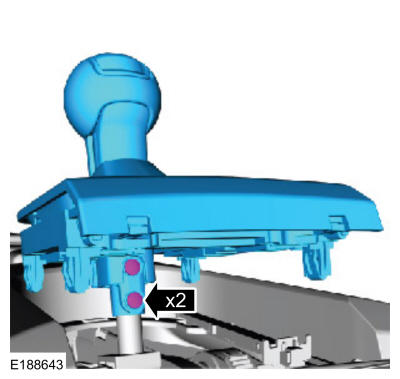

- 4.
Remove the screws and the shifter knob, boot and bezel as an assembly.
 Courtesy of FORD MOTOR COMPANY
|

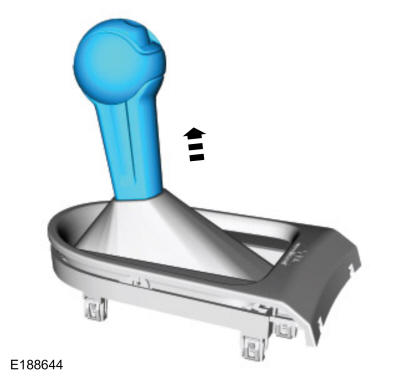

- 5.
Remove the shifter knob from the boot and bezel.
 Courtesy of FORD MOTOR COMPANY
|
