Fuel Pump Driver Module (FPDM): Installation

• 1.



  • 1.

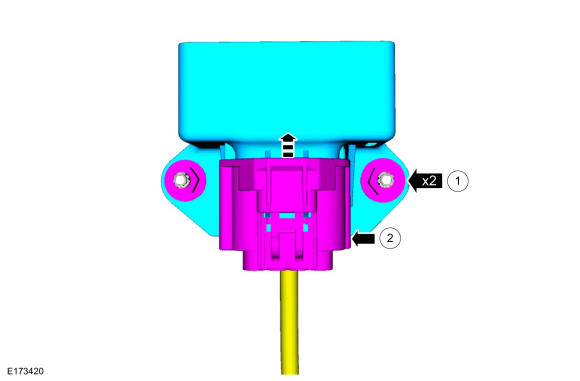

    Install the FPDM, then install and tighten the FPDM retaining nuts.

    Torque: 44 lb.in (5 Nm)

  • 2.

    Connect the FPDM electrical connector.

Courtesy of FORD MOTOR COMPANY

• 2.

  Install the rear seat cushion. Refer to: Rear Seat Cushion .
