Fuel Charging and Controls - Component Location
Fuel Charging and Controls - Component Location

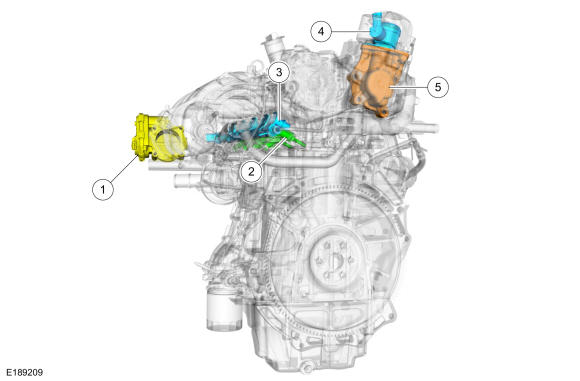

2.3L EcoBoost
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Throttle Body (TB)
2
Fuel injector
3
Fuel rail
4
High-pressure fuel pump
5
High-pressure fuel pump drive unit

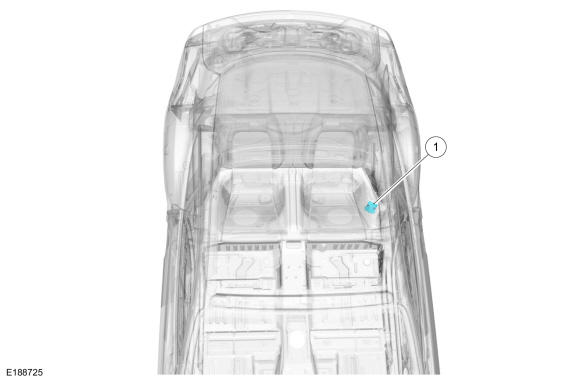

FPDM
Courtesy of FORD MOTOR COMPANY
Item
Description
1
FPDM. (The FPDM is located beneath the rear seat cushion on the LH side).
