Battery Current Sensor: Installation
- 1.NOTE: The battery current sensor must be installed in the proper position and orientation to function correctly.

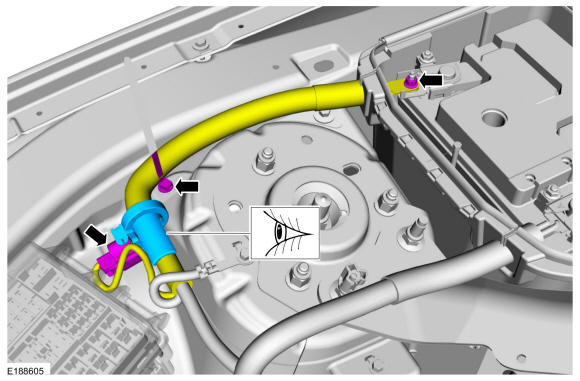

With the battery current sensor tape tab pointing away from the battery, position the battery current sensor to the index-mark on the battery cable and secure with electrical tape. Connect the battery current sensor electrical connector. Position the battery cable and install the wire retainer and nut.
Torque: 80 lb.in (9 Nm)
