Front Seat: Removal

NOTE: LHD driver seat shown, all others similar.

  1. 1.

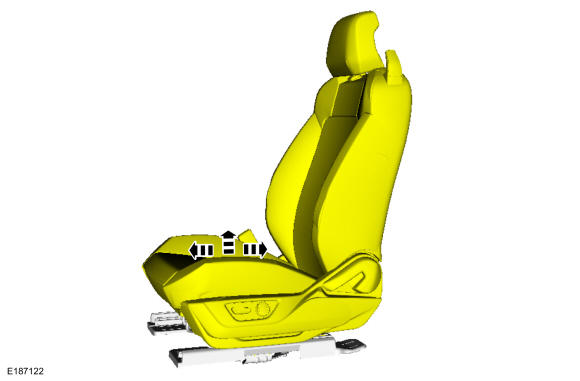

    Position the seat to access the front seat bolts.
    • If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative horizontal seat track motor. Refer to: Front Seats .
GFD132975Courtesy of FORD MOTOR COMPANY

  1. 2.

    Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

  1. 3.

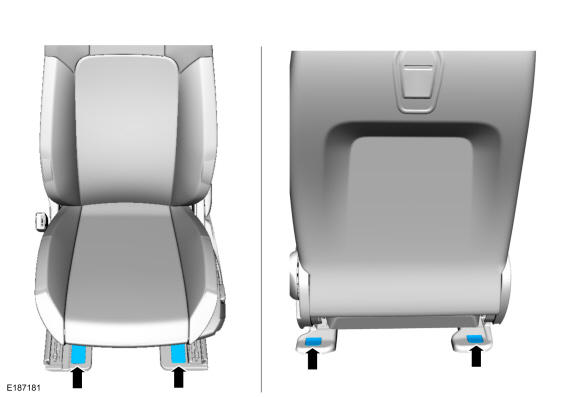

    Remove the front seat shield bolt caps.
GFD132976Courtesy of FORD MOTOR COMPANY

  1. 4.

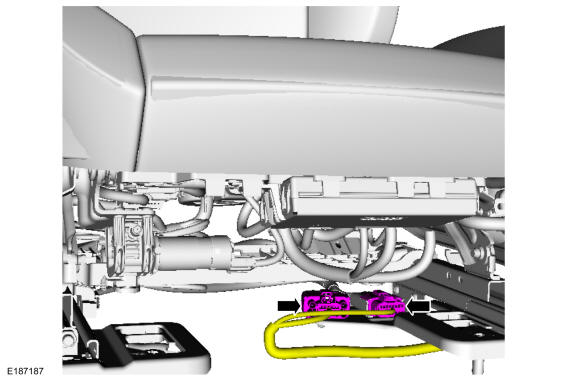

    Disconnect the front seat electrical connector(s) and position the wire harness aside.
GFD132977Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Follow the unique instructions or graphic for this step in the installation.

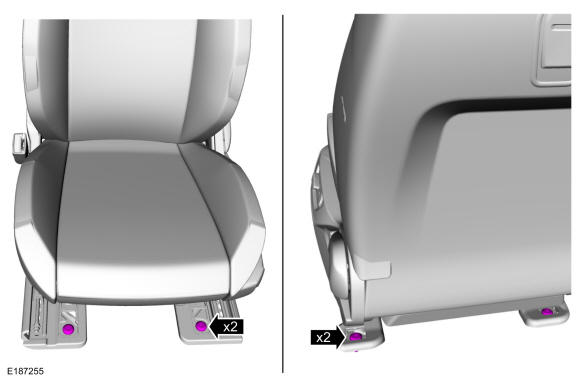

    Remove the bolts and the front seat.

GFD132978Courtesy of FORD MOTOR COMPANY
