Front Head Restraint Guide Sleeve: Removal
NOTE:
Typical head restraint guide sleeve shown, others similar.
- 1.

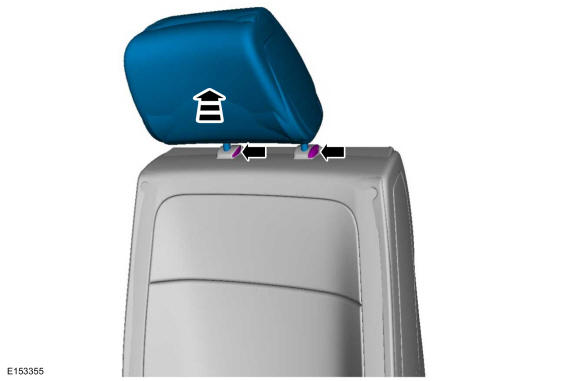

Depress the locking tabs and remove the head restraint.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
NOTE:
Seat backrest cushion removed for clarity.

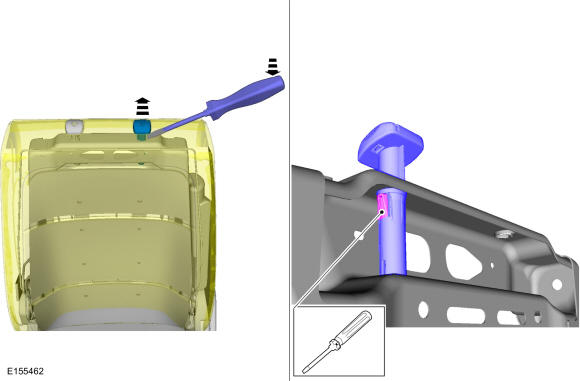

Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
 Courtesy of FORD MOTOR COMPANY
|
- 3.

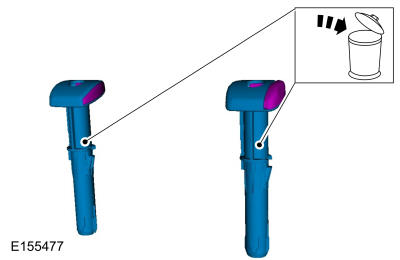

Discard the head restraint guide sleeves.
 Courtesy of FORD MOTOR COMPANY
|
