Body Control Module B (BCMB): Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the BCM-B (Body Control Module-B) following the on-screen instructions.

  1. 2.

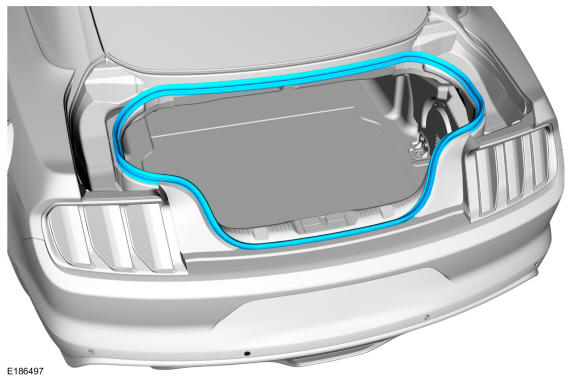

    Remove the luggage compartment weatherstrip.
GFD132739Courtesy of FORD MOTOR COMPANY

  1. 3.

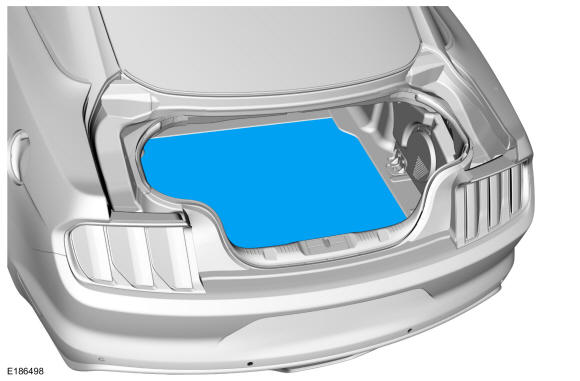

    Remove the spare tire cover.
GFD132740Courtesy of FORD MOTOR COMPANY

  1. 4.

    If equipped, remove the subwoofer and amplifier unit. Refer to: Subwoofer and Amplifier Unit .

  1. 5.

    1. 1.

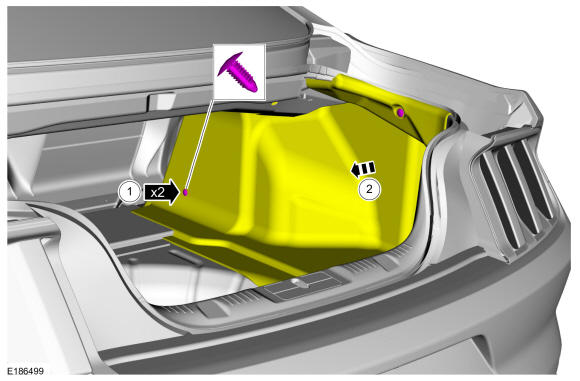

      Remove the pin-type retainers.

    1. 2.

      Position aside the RH luggage compartment side trim panel.
GFD132741Courtesy of FORD MOTOR COMPANY

  1. 6.

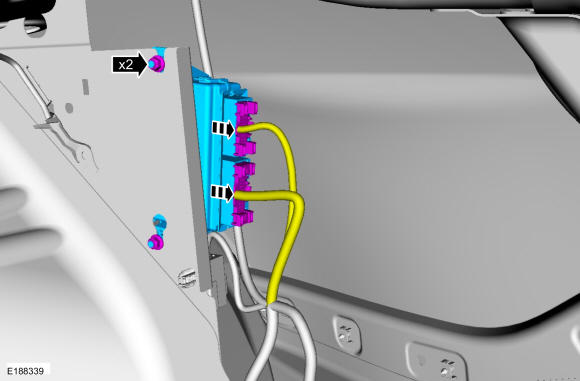

    Remove the nuts and the BCM-B (Body Control Module-B).
    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

GFD132742Courtesy of FORD MOTOR COMPANY
